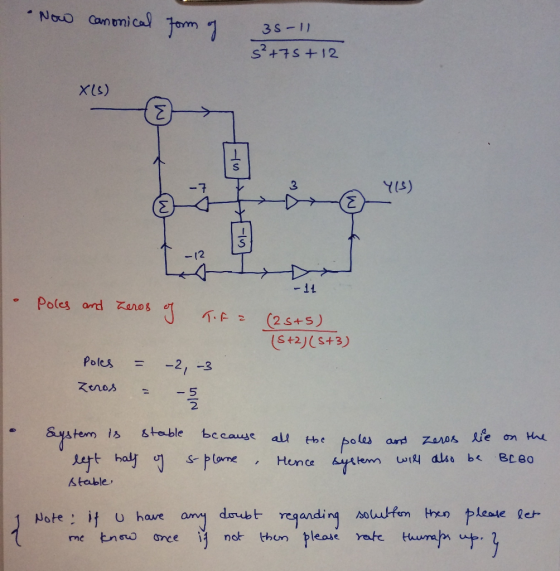

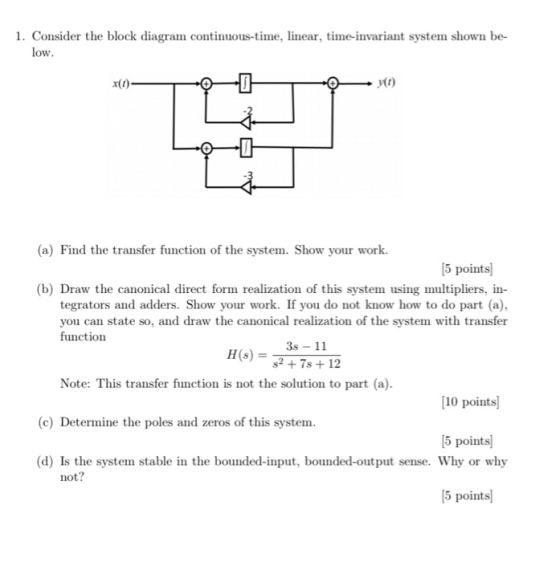

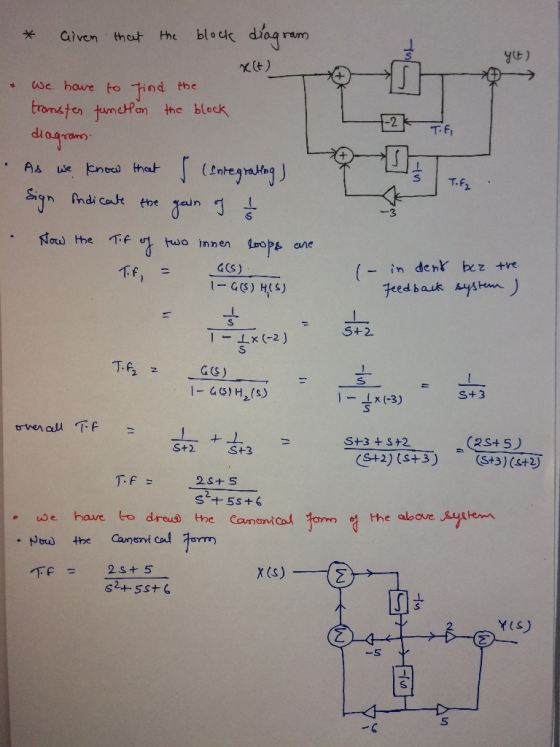

1. Consider the block diagram continuous-time, linear, time-invariant system shown be- low. A Ali (a) Find...
Q.5 (a) Show that a linear, time-invariant, discrete-time system is stable in the bounded- input bounded-output...
Q.5 (a) Show that a linear, time-invariant, discrete-time system is stable in the bounded- input bounded-output sense if, and only if the unit sample response of the system, h[n], is absolutely summable, that is, Alfa]]<00 | [n]| < do ***** (13 marks] (b) Consider a linear, time-invariant discrete-time system with unit sample response, hin), given by hin] = a[n] – đặn – 3 where [n] is the unit sample sequence. (1) Is the system stable in the bounded-input bounded-output sense?...
a continuous time causal LTI system has a transfer function: H(s)=(s+3)/(s^2 +3s +2) a) find the...
a continuous time causal LTI system has a transfer function: H(s)=(s+3)/(s^2 +3s +2) a) find the poles and zeros b) indicate the poles and the zeros on the s-plane indicate the region of convergence (ROC) c) write the differential equation of the system. d) determine the gain of the system at dc (ie the transfer function at w=0) e) is the system described by H(s) stable? explain f) for the system described by H(s), does the Fourier transform H(jw) exist?...
A linear time invariant system has an impulse response given by h[n] = 2(-0.5)" u[n] –...
A linear time invariant system has an impulse response given by h[n] = 2(-0.5)" u[n] – 3(0.5)2º u[n] where u[n] is the unit step function. a) Find the z-domain transfer function H(2). b) Draw pole-zero plot of the system and indicate the region of convergence. c) is the system stable? Explain. d) is the system causal? Explain. e) Find the unit step response s[n] of the system, that is, the response to the unit step input. f) Provide a linear...
1. A linear time-invariant system hn is characterized by the following z transform function 3-42-1 1-3.5+1.5-2...
1. A linear time-invariant system hn is characterized by the following z transform function 3-42-1 1-3.5+1.5-2 (a) Calculate the poles and zeros manually. Plot the poles and zeros using Matlab. Does Matlab result agree with your calculation? (b) If the system is stable, specify the ROC of H(z) and determine hn (c) If the system is causal, specify the ROC of H(z) and determine hn
1. Evaluate stability of the following systems: a) A continuous time system described by the following...
1. Evaluate stability of the following systems: a) A continuous time system described by the following transfer function: 4 2s2 +4s 5 b) A continuous time system described by the following transfer function (s-6)(5s3 +3s +7s + 1) c) A discrete time system described by the following transfer function: 0.3 (z-0.4) (z +0.7) d) A second order discrete time system with the following poles: z1 0.8+0.75i, z2 0.8-0.75i
2. Consider a linear time-invariant system with transfer function H(s)Find the (s + α)(s + β) impulse response, h(t), of the system 2. Consider a linear time-invariant system with transfer f...
2. Consider a linear time-invariant system with transfer function H(s)Find the (s + α)(s + β) impulse response, h(t), of the system
2. Consider a linear time-invariant system with transfer function H(s)Find the (s + α)(s + β) impulse response, h(t), of the system
4- Let the step response of a linear, time-invariant, causal system be (-1).uln] ylnl.ynl-ler uln...
4- Let the step response of a linear, time-invariant, causal system be (-1).uln] ylnl.ynl-ler uln].. 15 3 3 12 a) Find the transfer function H(Z) of this system b) Find the impulse response of the system. Is this system stable? c) Find the difference equation representation of this system.
4- Let the step response of a linear, time-invariant, causal system be (-1).uln] ylnl.ynl-ler uln].. 15 3 3 12 a) Find the transfer function H(Z) of this system b) Find the...
Consider a second order linear time invariant system represented by the following ordinary differential equation: 4....
Consider a second order linear time invariant system represented by the following ordinary differential equation: 4. dx(t) dt dt dt Y (s) X(s) a. Find the transfer function H(s) of the system. (5 Points)
Neatly shown work please! The transfer function of a linear time-invariant system is given as s...
Neatly shown work please!
The transfer function of a linear time-invariant system is given as s +2 H (s) = s +2s +5 The input signal xt)-Acos(a+presul y, (1) = 6 cos(1 + 45) . Find A, a, , and Po in the steady-state response °
1) Determine if the discrete-time system,y[k] =x[k] +r·y[k−1]is linear / time-invariant / causal / memoryless. Show...
1) Determine if the discrete-time system,y[k] =x[k] +r·y[k−1]is linear / time-invariant / causal / memoryless. Show your work and explain each property. Start by assuming,x1[k]→y1[k], x2[k]→y2[k]. 2) Determine if the discrete-time system,y[k] =x[k] +rk·y[k−1]is linear / time-invariant / causal / memoryless. Show your work and explain each property. 3) For the system in part 1), if x[k] = 100·u[k−1] and y[k] = 0 for k<0, what is the range of values for r that makes this system BIBO stable? Show...
Q.5 (a) Show that a linear, time-invariant, discrete-time system is stable in the bounded- input bounded-output sense if, and only if the unit sample response of the system, h[n], is absolutely summable, that is, Alfa]]<00 | [n]| < do ***** (13 marks] (b) Consider a linear, time-invariant discrete-time system with unit sample response, hin), given by hin] = a[n] – đặn – 3 where [n] is the unit sample sequence. (1) Is the system stable in the bounded-input bounded-output sense?...
A linear time invariant system has an impulse response given by h[n] = 2(-0.5)" u[n] – 3(0.5)2º u[n] where u[n] is the unit step function. a) Find the z-domain transfer function H(2). b) Draw pole-zero plot of the system and indicate the region of convergence. c) is the system stable? Explain. d) is the system causal? Explain. e) Find the unit step response s[n] of the system, that is, the response to the unit step input. f) Provide a linear...
1. A linear time-invariant system hn is characterized by the following z transform function 3-42-1 1-3.5+1.5-2 (a) Calculate the poles and zeros manually. Plot the poles and zeros using Matlab. Does Matlab result agree with your calculation? (b) If the system is stable, specify the ROC of H(z) and determine hn (c) If the system is causal, specify the ROC of H(z) and determine hn
1. Evaluate stability of the following systems: a) A continuous time system described by the following transfer function: 4 2s2 +4s 5 b) A continuous time system described by the following transfer function (s-6)(5s3 +3s +7s + 1) c) A discrete time system described by the following transfer function: 0.3 (z-0.4) (z +0.7) d) A second order discrete time system with the following poles: z1 0.8+0.75i, z2 0.8-0.75i
2. Consider a linear time-invariant system with transfer function H(s)Find the (s + α)(s + β) impulse response, h(t), of the system
2. Consider a linear time-invariant system with transfer function H(s)Find the (s + α)(s + β) impulse response, h(t), of the system
4- Let the step response of a linear, time-invariant, causal system be (-1).uln] ylnl.ynl-ler uln].. 15 3 3 12 a) Find the transfer function H(Z) of this system b) Find the impulse response of the system. Is this system stable? c) Find the difference equation representation of this system.
4- Let the step response of a linear, time-invariant, causal system be (-1).uln] ylnl.ynl-ler uln].. 15 3 3 12 a) Find the transfer function H(Z) of this system b) Find the...
Consider a second order linear time invariant system represented by the following ordinary differential equation: 4. dx(t) dt dt dt Y (s) X(s) a. Find the transfer function H(s) of the system. (5 Points)
Neatly shown work please!
The transfer function of a linear time-invariant system is given as s +2 H (s) = s +2s +5 The input signal xt)-Acos(a+presul y, (1) = 6 cos(1 + 45) . Find A, a, , and Po in the steady-state response °
