Machine Layout

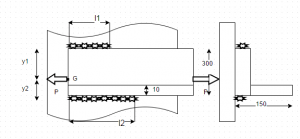

Which equations can be used to find the resisting force in the two welds?
a) P=P₁+P₂
b) P₁+P₂=0
c) Both P=P₁+P₂ and P₁y₁=P₂y₂
d) P₁y₁=P₂y₂
Homework Answers
Answer: c
Explanation: One equation is of equilibrium and the other conservation of moment about CG.
