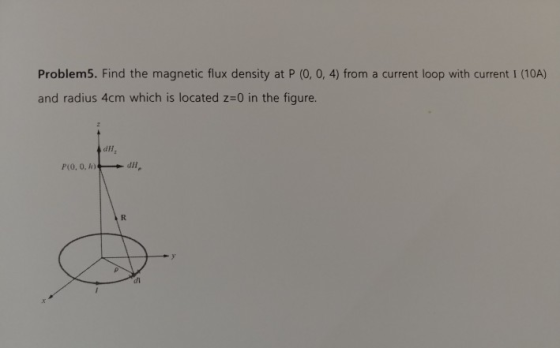

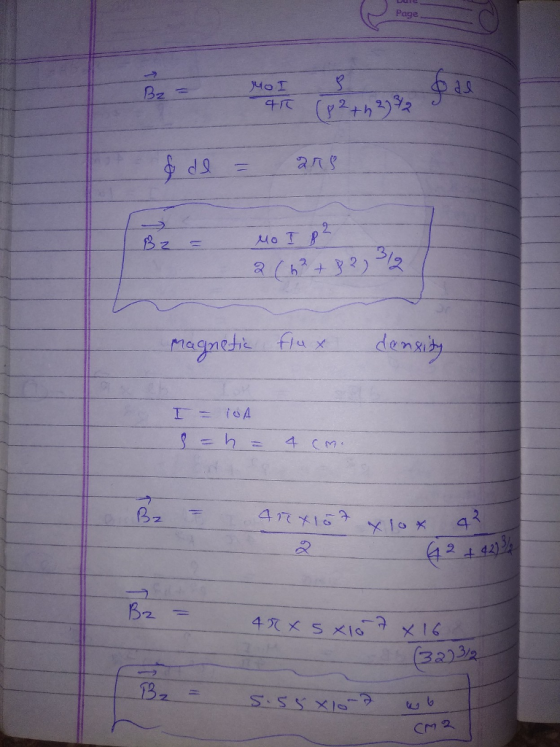

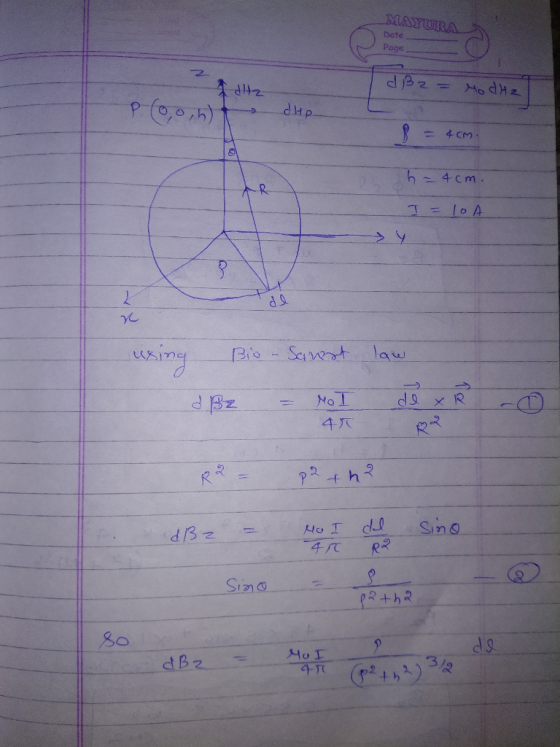

Problem5. Find the magnetic flux density at P (0, 0, 4) from a current loop with...
Problem 1 (25 points): Magnetic Fields. A circular loop of current I, and radius ro lies in the x...
Problem 1 (25 points): Magnetic Fields. A circular loop of current I, and radius ro lies in the x-y plane as shown. P (ro,0,zo) a) Using the Biot-Savart Law, set up the integral expression to evaluate the magnetic flux density at the point P (ro,0,zo). Do not evaluate the integral(s) in this part but specify the expressions for the x, y, and z components of the resulting flux density Problem 1 (continued): b) Given the right-hand rule for magnetic fields...
Problem 1 (25 points): Magnetic Fields. A circular loop of current Io and radius ro lies in the x...
Problem 1 (25 points): Magnetic Fields. A circular loop of current Io and radius ro lies in the x-y plane as shown P (ro,0,zo) 0 a) Using the Biot-Savart Law, set up the integral expression to evaluate the magnetic flux density at the point P (ro,0,zo). Do not evaluate the integral(s) in this part but specify the expressions for the x, y, and z components of the resulting flux density. b) Given the right-hand rule for magnetic fields around currents,...
1. The Biot-Savart Law states that a current induces a magnetic field of intensity H dL Free spac...
I am very lost!
1. The Biot-Savart Law states that a current induces a magnetic field of intensity H dL Free space pa dH a. If the wire is long and is carrying 10 A of current, find the magnetic field intensity H(p). then plot the field intensity vs. p on a graph for 1 sps 5 cm. A ferrite toroid 4-1 000) with an inner radius A = 1.21 cm and an outer radius P2- 4 cm is positioned...
7.34 In free space, the magnetic flux density is (a) Show that B is a magnetic field (b) Find the...
7.34 In free space, the magnetic flux density is (a) Show that B is a magnetic field (b) Find the magnetic flux through x-1,0 < 1,1 < z < 4. c) Calculate J (d) Determine the total magnetic flux through the surface of a cube defined by 0 x <2> 0 < y < 2, 0 < z < 2.
7.34 In free space, the magnetic flux density is (a) Show that B is a magnetic field (b) Find the...
Assuming a current I in a semi-circular wire with radius a. What is the magnetic flux...
Assuming
a current I in a semi-circular wire with radius a. What is the
magnetic flux density on a point at the center of the semi-circle
and above the semi-circle plane by a distance d. Also find the
magnetic flux density if the circle is full.
4. Assuming a current I in a semi-circular wire with radius a. What is the magnetic flux density on a point at the center of the semi-circle and above the semi-circle plane by a...
A rectangular loop with current I = 36A is placed in the xy plane in free...
A rectangular loop with current I = 36A is placed in the xy
plane in free space as shown below. Find the z-component of the
magnetic flux density Bzaz at point P(0, 0, z). The four corners of
the rectangular loop are (a, -d, 0), (a, b, 0), (-c, b, 0), (-c,
-d, 0). Assume a=5m, b=3m, c=3m, d=2m, z=9m.
5. (20 points) A rectangular loop with current I 36A is placed in the xy plane in free space as...
As in the figure, current I flows through a circular conductive cross section with radius b....
As in the figure, current I flows through a circular conductive cross section with radius b. Find the magnetic flux density(B) it creates at point P, which is at a distance z in the direction perpendicular to the plane where it is located. P(0,0,2) b
Magnetic Field from Current Segments ©2 of 3 Learning Goal: Review To apply the Biot-Savart law...
Magnetic Field from Current Segments ©2 of 3 Learning Goal: Review To apply the Biot-Savart law to find the magnetic field produced on the z axis from current elements in the xy plane. Submit In this problem you are to find the magnetic field component along the z axis that results from various current elements in the xy plane (i.e., at z = 0). Part F Find dB (0,0, 21), the z component of the magnetic field at the point...
Q1. In the following magnetic circuit, the flux density in leg#1 shown in the figure is...
Q1. In the following magnetic circuit, the flux density in leg#1 shown in the figure is 1.2 (T). The relationship between the flux density and the field intensity is also given for the core: B- denth is the same for all parts of the core. 2H 1000+H-Determine the current of winding#2 (12). All dimensions are in cm and the core 2cm 2A NI-50 100-N2 7cm 4cm 2. 1em 8cm 3cm
Find dB,(0,0,0), the z component of the magnetic field at the point x =y=z=0 from the...
Find dB,(0,0,0), the z component of the magnetic field at the point x =y=z=0 from the current I flowing over a short distance di = dl ſ located at the point 7c = x1 1 î. (Figure 3) Express your answer in terms of I, 21, MO, A, and dl. Recall that a component is a scalar, do not enter any unit vectors. View Available Hint(s) ΑΣΦ ? dB (0,0,0) =
Problem 1 (25 points): Magnetic Fields. A circular loop of current I, and radius ro lies in the x-y plane as shown. P (ro,0,zo) a) Using the Biot-Savart Law, set up the integral expression to evaluate the magnetic flux density at the point P (ro,0,zo). Do not evaluate the integral(s) in this part but specify the expressions for the x, y, and z components of the resulting flux density Problem 1 (continued): b) Given the right-hand rule for magnetic fields...
Problem 1 (25 points): Magnetic Fields. A circular loop of current Io and radius ro lies in the x-y plane as shown P (ro,0,zo) 0 a) Using the Biot-Savart Law, set up the integral expression to evaluate the magnetic flux density at the point P (ro,0,zo). Do not evaluate the integral(s) in this part but specify the expressions for the x, y, and z components of the resulting flux density. b) Given the right-hand rule for magnetic fields around currents,...
I am very lost!
1. The Biot-Savart Law states that a current induces a magnetic field of intensity H dL Free space pa dH a. If the wire is long and is carrying 10 A of current, find the magnetic field intensity H(p). then plot the field intensity vs. p on a graph for 1 sps 5 cm. A ferrite toroid 4-1 000) with an inner radius A = 1.21 cm and an outer radius P2- 4 cm is positioned...
7.34 In free space, the magnetic flux density is (a) Show that B is a magnetic field (b) Find the magnetic flux through x-1,0 < 1,1 < z < 4. c) Calculate J (d) Determine the total magnetic flux through the surface of a cube defined by 0 x <2> 0 < y < 2, 0 < z < 2.
7.34 In free space, the magnetic flux density is (a) Show that B is a magnetic field (b) Find the...
Assuming
a current I in a semi-circular wire with radius a. What is the
magnetic flux density on a point at the center of the semi-circle
and above the semi-circle plane by a distance d. Also find the
magnetic flux density if the circle is full.
4. Assuming a current I in a semi-circular wire with radius a. What is the magnetic flux density on a point at the center of the semi-circle and above the semi-circle plane by a...
A rectangular loop with current I = 36A is placed in the xy
plane in free space as shown below. Find the z-component of the
magnetic flux density Bzaz at point P(0, 0, z). The four corners of
the rectangular loop are (a, -d, 0), (a, b, 0), (-c, b, 0), (-c,
-d, 0). Assume a=5m, b=3m, c=3m, d=2m, z=9m.
5. (20 points) A rectangular loop with current I 36A is placed in the xy plane in free space as...
As in the figure, current I flows through a circular conductive cross section with radius b. Find the magnetic flux density(B) it creates at point P, which is at a distance z in the direction perpendicular to the plane where it is located. P(0,0,2) b
Magnetic Field from Current Segments ©2 of 3 Learning Goal: Review To apply the Biot-Savart law to find the magnetic field produced on the z axis from current elements in the xy plane. Submit In this problem you are to find the magnetic field component along the z axis that results from various current elements in the xy plane (i.e., at z = 0). Part F Find dB (0,0, 21), the z component of the magnetic field at the point...
Q1. In the following magnetic circuit, the flux density in leg#1 shown in the figure is 1.2 (T). The relationship between the flux density and the field intensity is also given for the core: B- denth is the same for all parts of the core. 2H 1000+H-Determine the current of winding#2 (12). All dimensions are in cm and the core 2cm 2A NI-50 100-N2 7cm 4cm 2. 1em 8cm 3cm
Find dB,(0,0,0), the z component of the magnetic field at the point x =y=z=0 from the current I flowing over a short distance di = dl ſ located at the point 7c = x1 1 î. (Figure 3) Express your answer in terms of I, 21, MO, A, and dl. Recall that a component is a scalar, do not enter any unit vectors. View Available Hint(s) ΑΣΦ ? dB (0,0,0) =
