After how many time constants has the voltage across a discharging capacitor decayed to 0.20 %...

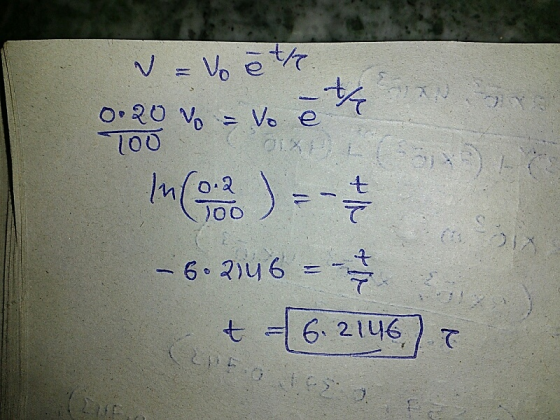

After how many time constants has the voltage across a discharging capacitor decayed to 0.20 % of its initial value?
Homework Answers
Add Answer to:
After how many time constants has the voltage across a
discharging capacitor decayed to 0.20 %...
(a) What is the expression for the voltage across a capacitor as it is discharging in...
(a) What is the expression for the voltage across a capacitor as it is discharging in a simple RC circuit? (Use the following as necessary: V0 for the initial voltage, R for the resistor, C for the capacitance, and t for the time.) V = (b) What is the ratio of V/V0 at time t = ?? V V0 =
When discharging the 20.0 mF capacitor, you measure a voltage of 11.2 V across the capacitor....
When discharging the 20.0 mF capacitor, you measure a voltage of 11.2 V across the capacitor. What is the voltage drop across the 300.0 ft resistor? When discharging the 20.0 mF capacitor, you measure a voltage of 11.2 V across the capacitor. What is the current through the 300.0 ft resistor, in amps? Answer as a positive number. The current will be A. If you plot voltage drop across a capacitor vs time for a capacitor discharging through a resistor,...
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as...
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as shown in the Background Information Figure 2, is Vo(t) = V, expl-Roc), +20 (3) where V, is the source voltage in Volts, exp(x) is the exponential functione, Rp is the discharging resistance in Ohms (N), C is the capacitance in Farads. To = Rp is the discharging time constant in seconds. Derive an expression for the capacitor discharging current versus time, .(t), in terms...
How much charge will remain on the plates of a discharging capacitor after a length of...
How much charge will remain on the plates of a discharging capacitor after a length of time equal to one time constant? Select one: 0% of the initial charge on the capacitor 37% of the initial charge on the capacitor 63% of the initial charge on the capacitor 100% of the initial charge on the capacitor
Determine the value of the voltage across the capacitor, Vc, 1 time constant after the sources...
Determine the value of the
voltage across the capacitor, Vc, 1 time constant after the sources
changes (at t=0).
In the circuit below, determine the value of the voltage across the capacitor, vc, 1 time constant after the sources change (at t=0). Hint: You do not need the value of C or R1 to answer this question. 25u(t) V c ) 100u(-+) V
A 4.0 μF capacitor is put across a 12 V battery. After a long time (~20...
A 4.0 μF capacitor is put across a 12 V battery. After a long time (~20 time constants), the capacitor is disconnected and placed in series through an open switch, with a 250 Ω resistor. (a) Determine the charge on the capacitor before it is discharged. C (b) What is the initial current through the resistor when the switch is closed? A (c) At what time will the current reach 37% of its initial value? s
For the circuit shown, find the following: a) v(0+), the voltage across the capacitor right after...
For the circuit shown, find the following: a) v(0+), the voltage across the capacitor right after the switch closes. b) v), the voltage across the capacitor after the switch has been closed for a long time. c) v(T), the voltage across the capacitor after one time constant. 2. 3 S2 I(t) 12 V+ 6 Ω 0.5 F u(t) 3. For the circuit above, write the differential equation for t > 0.
The initial voltage across the capacitor is 0 V. At time t=0, the switch is closed
The initial voltage across the capacitor is 0 V. At time t=0, the switch is closed a) What is the time constant for this circuit? b) What is the final voltage across the 50 capacitor? c) What is the expression for the voltage across the 50 capacitor? d) Sketch the waveform for . e) What is the maximum instantaneous current that will flow through the capacitor? f) When will the voltage reach 5.0 V?
4. Six 350-F ultra-capacitors are connected in series. The capacitor bank has an initial total voltage...
4. Six 350-F ultra-capacitors are connected in series. The capacitor bank has an initial total voltage of 15 V. The capacitor bank discharges through a 10-Ω resistor for a time of 5 minutes. a) What is the voltage of the capacitor bank after discharging for 5 minutes? b) How much energy will be discharged in that time? c) What is the average power delivered by the capacitor bank in that time?
5. (15 points) Below shows a plot of voltage vs. time across a capacitor. The capacitor...
5. (15 points) Below shows a plot of voltage vs. time across a capacitor. The capacitor is in series with a resistor R-47002, and battery time (1 time constant a. What is the maximum voltage of the battery, E.? b. If the time constant is 1.5 ms, what is the voltage across the capacitor at Ber one time constant? c. What is the value of the capacitor?
When discharging the 20.0 mF capacitor, you measure a voltage of 11.2 V across the capacitor. What is the voltage drop across the 300.0 ft resistor? When discharging the 20.0 mF capacitor, you measure a voltage of 11.2 V across the capacitor. What is the current through the 300.0 ft resistor, in amps? Answer as a positive number. The current will be A. If you plot voltage drop across a capacitor vs time for a capacitor discharging through a resistor,...
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as shown in the Background Information Figure 2, is Vo(t) = V, expl-Roc), +20 (3) where V, is the source voltage in Volts, exp(x) is the exponential functione, Rp is the discharging resistance in Ohms (N), C is the capacitance in Farads. To = Rp is the discharging time constant in seconds. Derive an expression for the capacitor discharging current versus time, .(t), in terms...
Determine the value of the
voltage across the capacitor, Vc, 1 time constant after the sources
changes (at t=0).
In the circuit below, determine the value of the voltage across the capacitor, vc, 1 time constant after the sources change (at t=0). Hint: You do not need the value of C or R1 to answer this question. 25u(t) V c ) 100u(-+) V
For the circuit shown, find the following: a) v(0+), the voltage across the capacitor right after the switch closes. b) v), the voltage across the capacitor after the switch has been closed for a long time. c) v(T), the voltage across the capacitor after one time constant. 2. 3 S2 I(t) 12 V+ 6 Ω 0.5 F u(t) 3. For the circuit above, write the differential equation for t > 0.
5. (15 points) Below shows a plot of voltage vs. time across a capacitor. The capacitor is in series with a resistor R-47002, and battery time (1 time constant a. What is the maximum voltage of the battery, E.? b. If the time constant is 1.5 ms, what is the voltage across the capacitor at Ber one time constant? c. What is the value of the capacitor?
