4. Six 350-F ultra-capacitors are connected in series. The capacitor bank has an initial total voltage...

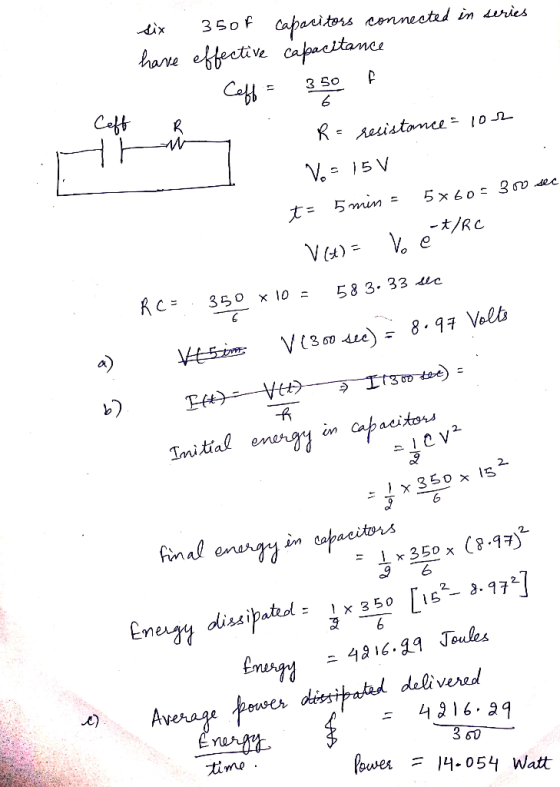

4. Six 350-F ultra-capacitors are connected in series. The capacitor bank has an initial total voltage of 15 V. The capacitor bank discharges through a 10-Ω resistor for a time of 5 minutes.
a) What is the voltage of the capacitor bank after discharging for 5 minutes?
b) How much energy will be discharged in that time?
c) What is the average power delivered by the capacitor bank in that time?
Homework Answers
