A 1.5-Ib sphered A is released from rest when theta_A = 45degree and strikes a 3-lb...

Question

Question

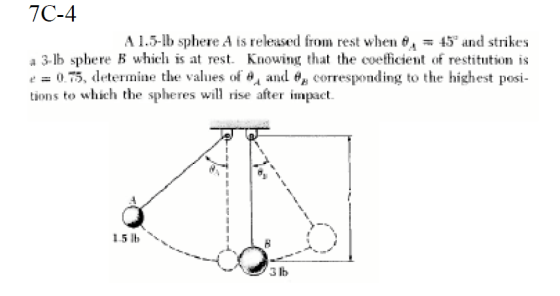

A 1.5-Ib sphered A is released from rest when thet

science physics

Answer 1

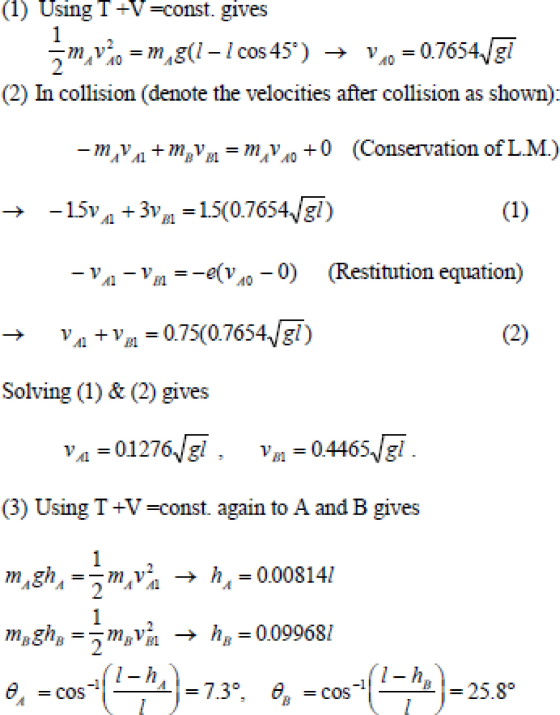

Answer #1

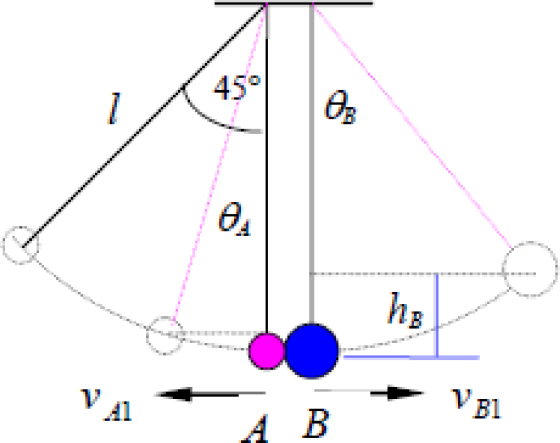

1 45。 ha A B

Answer 2
