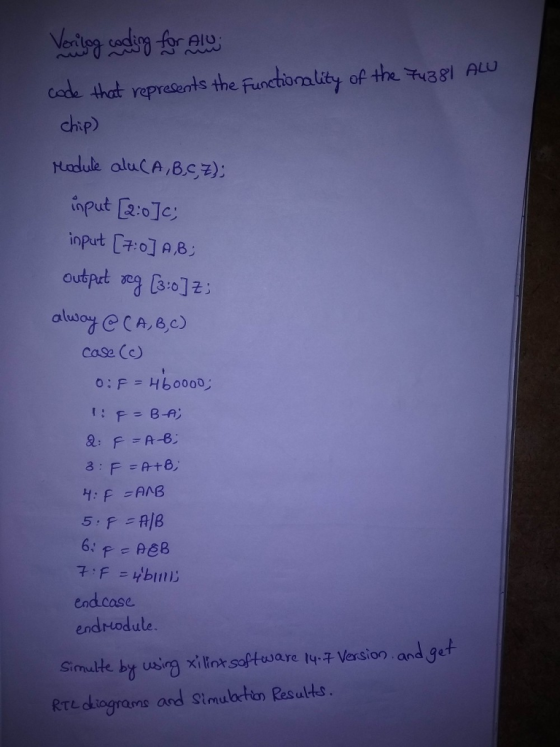

![cade that reprsents the function lity of the u3sl A chip) input 2:0]c; Ou Case (c) H: F AAB end.cose endrodule. Simeulte by w](http://img.homeworklib.com/questions/ca5f2690-7d5c-11ec-9ef6-d72712cebd23.png?x-oss-process=image/resize,w_560)
Q2. Design a 8-bit ALU (Arithmetic Logic Unit) supporting the following instructions, Z and C values...
PROBLEM STATEMENT The mini-calculator will use a small ALU to perform arithmetic operations on two 4-bit values which are set using switches. The ALU operations described below are implemented with an Adder/Subtractor component. A pushbutton input allows the current arithmetic result to be saved. An upgraded mini-calculator allows the saved value to be used in place of B as one of the operands. The small ALU that you will design will use the 4-bit adder myadder4 to do several possible...
Implement an arithmetic logic unit (ALU) using Verilog. Consider signed number arithmetic operation. The outputs of the ALU should be 1) Addition of two 8-bit numbers 2) A Zero Flag. It is set (it is 1 if the condition is met and 0 otherwise) if the result is zero. 3) A Negative Flag. It is set (it is 1 if the condition is met and 0 otherwise) if the result is less than 0. 4) An Overflow Flag. It is...
Derive the logic gates for a 2-bit Arithmetic Logic Unit (ALU)
with four micro-operations:
1) Complete the table below by showing the select input bits and the necessary groupings. (5 points) Select Inputs Micro-Operation Description F = A-B-1 F = A + B +1 F = AVB F = ashl A Subtraction with borrow Addition with carry Logic OR Arithmetic shift left 2) Draw a detailed logic circuit of the ALU's arithmetic unit. (10 points) 3) Draw a detailed logic...
Design a 4-bit Arithmetic Logic Unit (ALU) according to the following specification. Follow the design shown during the lecture. Notice this table is different, though. a. Create the internal of 1-bit of the logic unit (It is recommended that you design the internal of a 4 to 1 MUX first, create a symbol for it and use it for creating the logic unit) b. Create a symbol for your logic unit and use four of them to make a 4-bit logic unit c....
Using Structural Modeling in VHDL write the
code for:
An Arithmetic Logic Unit (ALU) shown in the
figure below. A (16-bit), B
(16-bit), Opcode (3-bit), and
Mode (1-bit) are the inputs; and
ALUOut (16-bit) and Cout (1-bit) are the outputs
of the design. A and B hold the values of the operands. Mode and
Opcode together indicate the type of the operation performed by
ALU.
The ALU components ARE:
-Arithmetic Unit that consists of one 16-bit
adder, 16-bit subtractor, 16-bit...
1. Implement this ALU in VHDL: a (7:0) b (7:0) Logic Unit Mux y (7:0) Arithmetic Unit sel (3) cin sel (3:0) Function Transfera Increment a Decrement a Transfer b Increment b Decrement b Add a and b Add a and b with carr Complement a Complement b AND OR NAND NOR XOR Se eration Unit 0001 0010 0011 0100 0101 01 10 | y <= a+b 0111 1000 | y<= 1001| y<= NOT b 1010 | y<= a AND...
FIRST ACTIVITY: (100/100) . SIMPLE 4-BIT ARITHMETIC LOGIC UNIT (ALU): This circuit selects between arithmetic (absolute value, addition) and logical (XOR, AND) operations. Only one result (hexadecimal value) can be shown on the 7-segment display This is selected by the input sel (1..0) B A-BI A+B A xnor B A nand B Input EN: If EN-1result appears on the 7 segment display. If EN=0 → all LEDs in the 7 segment display are off Arithmetic operations: The 4-bit inputs A...
You will use Quartus II to build an 8 bit arithmetic logic unit that performs the following functions: Control Value Function 000 Copy In1 to theResult unchanged 001 Copy In2 to theResult unchanged 010 Add In1 to In2 011 Subtract In2 from In1 100 And In1 and In2 101 Or In1 and In2 110 Shift left In1 by 1 bit 111 Shift right In1 by 1 bit You are allowed to use either gates/logic schematic, or else Verilog. We suggest...
The assignment is build an 8 bit ALU in structural verilog NOT behavioral : Requirements are to design the ALU to implement NAND, AND, OR, NOT, XOR, XNOR, ADD, SUBTRACT, COMPARE, etc. WIll be executed on 2s complemented throughout. 15 Op codes necessary are the following: -Transfer A -Increment A -Addition -Subtraction -Decrement A -1s comp -A and B,A NAND B,A or B, A NOR B, A XOR B, A XNOR B, -A greater than B -A Les than B...
This section gives you freedom to come up with your own
solutions.
An Arithmetic and Logic Unit (ALU) is a combinational circuit
that performs logic and arithmetic micro-operations on a pair of
4-bit operands. The operations performed by an ALU are controlled
by a set of function-select inputs. In this lab you will
design a 4-bit ALU with 3 function-select inputs: Mode M, Select S1
and S0 inputs. The mode input M selects between a Logic (M=0) and
Arithmetic (M=1)...
