LIBRARY ieee;
USE ieee.std_logic_1164.ALL;
USE ieee.numeric_std.ALL;
ENTITY Tb_alu IS
END Tb_alu;
ARCHITECTURE behavior OF Tb_alu IS
-- Component Declaration for the Unit Under Test (UUT)
COMPONENT alu
PORT(
inp_a : IN signed(3 downto 0);
inp_b : IN signed(3 downto 0);
sel : IN std_logic_vector(2 downto 0);
out_alu : OUT signed(3 downto 0));
END COMPONENT;
--Inputs
signal inp_a : signed(3 downto 0) := (others => '0');
signal inp_b : signed(3 downto 0) := (others => '0');
signal sel : std_logic_vector(2 downto 0) := (others =>
'0');
--Outputs
signal out_alu : signed(3 downto 0);
BEGIN
-- Instantiate the Unit Under Test (UUT)
uut: alu PORT MAP (
inp_a => inp_a,
inp_b => inp_b,
sel => sel,
out_alu => out_alu
);
-- Stimulus process
stim_proc: process
begin
-- hold reset state for 100 ns.
wait for 100 ns;
-- insert stimulus here
inp_a <= "1001";
inp_b <= "1111";
sel <= "000";
wait for 100 ns;
sel <= "001";
wait for 100 ns;
sel <= "010";
wait for 100 ns;
sel <= "011";
wait for 100 ns;
sel <= "100";
wait for 100 ns;
sel <= "101";
wait for 100 ns;a
sel <= "110";
wait for 100 ns;
sel <= "111";
end process;
END

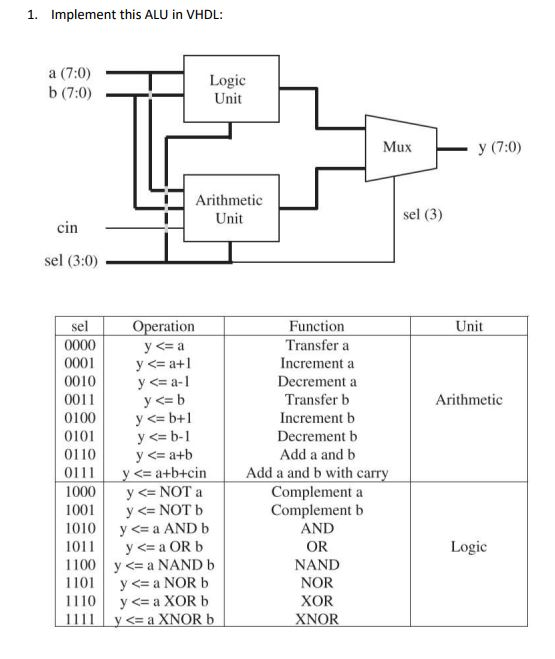

1. Implement this ALU in VHDL: a (7:0) b (7:0) Logic Unit Mux y (7:0) Arithmetic...
Using Structural Modeling in VHDL write the
code for:
An Arithmetic Logic Unit (ALU) shown in the
figure below. A (16-bit), B
(16-bit), Opcode (3-bit), and
Mode (1-bit) are the inputs; and
ALUOut (16-bit) and Cout (1-bit) are the outputs
of the design. A and B hold the values of the operands. Mode and
Opcode together indicate the type of the operation performed by
ALU.
The ALU components ARE:
-Arithmetic Unit that consists of one 16-bit
adder, 16-bit subtractor, 16-bit...
FIRST ACTIVITY: (100/100) . SIMPLE 4-BIT ARITHMETIC LOGIC UNIT (ALU): This circuit selects between arithmetic (absolute value, addition) and logical (XOR, AND) operations. Only one result (hexadecimal value) can be shown on the 7-segment display This is selected by the input sel (1..0) B A-BI A+B A xnor B A nand B Input EN: If EN-1result appears on the 7 segment display. If EN=0 → all LEDs in the 7 segment display are off Arithmetic operations: The 4-bit inputs A...
The assignment is build an 8 bit ALU in structural verilog NOT behavioral : Requirements are to design the ALU to implement NAND, AND, OR, NOT, XOR, XNOR, ADD, SUBTRACT, COMPARE, etc. WIll be executed on 2s complemented throughout. 15 Op codes necessary are the following: -Transfer A -Increment A -Addition -Subtraction -Decrement A -1s comp -A and B,A NAND B,A or B, A NOR B, A XOR B, A XNOR B, -A greater than B -A Les than B...
Problem 3 - Arithmetie Logic Unit (ALU) Design us poins Design a 4-bit ALU that has two selection variables Si Design an optimized circuit (mus external gates for circuit B operates based on the function table given below. The arithmetic unit and So and generates the arithmetic operations given below. and generatest Use a 4-1 MUX block with Si So Cin = 1 F-A (complement) F = A+B (add) FB (transfer) F A+B F = A+ 1 (negate) F A+B+...
Q2. Design a 8-bit ALU (Arithmetic Logic Unit) supporting the following instructions, Z and C values should be re-evaluated (updated) ifY changes Instruction type code[2:0] operations Logical Status update 001 010 011 100 101 110 ( Bitwise AND) Y = A & B: | Z (C is always 0) (bitwise OR) Y- A B; (bitwise XOR) Y-A B Z (Cis always 0) (negation) Y =-A; (Addition) Y A + B: (subtraction) Y = A-B: (Increment) Y-A+1 (decrement) Y-A-1 Z (C...
The Arithmetic Logic Unit The first topic for the project is to create an Arithmetic Logic Unit, using a structured approached with a Virtual Hardware Design Language such as Verilog. Mainly, the program is very close to a simulator for a programming calculator. An ALU typically has the following operations Math Functions: Add, Subtract, Multiply, Divide, Modulus Logic Functions: And, Or, XOR, Not, Nand, Nor, XNOR Error Modes: Divide by Zero, Overflow Support Functions: No Operation, Shift Left, Shift Right,...
ALU Design Design (step–by–step) and implement an 1–bit Arithmetic Logic Unit (ALU) that will perform the following arithmetic and logical operations: • NOT b • a AND b • a OR b •a+b •a-b
PROBLEM STATEMENT The mini-calculator will use a small ALU to perform arithmetic operations on two 4-bit values which are set using switches. The ALU operations described below are implemented with an Adder/Subtractor component. A pushbutton input allows the current arithmetic result to be saved. An upgraded mini-calculator allows the saved value to be used in place of B as one of the operands. The small ALU that you will design will use the 4-bit adder myadder4 to do several possible...
WITHOUT using VHDL coding, Design the arithmetic unit by
showing the truth tables, expressions and the logic circuits!
How would I also implement the status flags (Z,C,V) in my
circuit?
S2 0 1 1. Design a 4-bit Arithmetic Logic Unit (ALU) according to the following specification. Follow the design shown during the lecture. Notice this table is different, though. A(0:3) B(0:3) S1 So Function (F) 0 0 A+B 0 0 A-B Z ALU 0 0 A-1 0 A +1 0...
This section gives you freedom to come up with your own
solutions.
An Arithmetic and Logic Unit (ALU) is a combinational circuit
that performs logic and arithmetic micro-operations on a pair of
4-bit operands. The operations performed by an ALU are controlled
by a set of function-select inputs. In this lab you will
design a 4-bit ALU with 3 function-select inputs: Mode M, Select S1
and S0 inputs. The mode input M selects between a Logic (M=0) and
Arithmetic (M=1)...
