WITHOUT using VHDL coding, Design the arithmetic unit by
showing the truth tables, expressions and the...
This section gives you freedom to come up with your own solutions. An Arithmetic and Logic Unit (...
This section gives you freedom to come up with your own
solutions.
An Arithmetic and Logic Unit (ALU) is a combinational circuit
that performs logic and arithmetic micro-operations on a pair of
4-bit operands. The operations performed by an ALU are controlled
by a set of function-select inputs. In this lab you will
design a 4-bit ALU with 3 function-select inputs: Mode M, Select S1
and S0 inputs. The mode input M selects between a Logic (M=0) and
Arithmetic (M=1)...

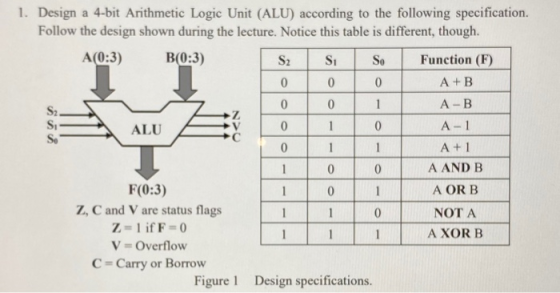

Design a 4-bit Arithmetic Logic Unit (ALU) according to the following specification
Design a 4-bit Arithmetic Logic Unit (ALU) according to the following specification. Follow the design shown during the lecture. Notice this table is different, though. a. Create the internal of 1-bit of the logic unit (It is recommended that you design the internal of a 4 to 1 MUX first, create a symbol for it and use it for creating the logic unit) b. Create a symbol for your logic unit and use four of them to make a 4-bit logic unit c....
Using Structural Modeling in VHDL write the code for: An Arithmetic Logic Unit (ALU) shown in...
Using Structural Modeling in VHDL write the
code for:
An Arithmetic Logic Unit (ALU) shown in the
figure below. A (16-bit), B
(16-bit), Opcode (3-bit), and
Mode (1-bit) are the inputs; and
ALUOut (16-bit) and Cout (1-bit) are the outputs
of the design. A and B hold the values of the operands. Mode and
Opcode together indicate the type of the operation performed by
ALU.
The ALU components ARE:
-Arithmetic Unit that consists of one 16-bit
adder, 16-bit subtractor, 16-bit...
1. Implement this ALU in VHDL: a (7:0) b (7:0) Logic Unit Mux y (7:0) Arithmetic...
1. Implement this ALU in VHDL: a (7:0) b (7:0) Logic Unit Mux y (7:0) Arithmetic Unit sel (3) cin sel (3:0) Function Transfera Increment a Decrement a Transfer b Increment b Decrement b Add a and b Add a and b with carr Complement a Complement b AND OR NAND NOR XOR Se eration Unit 0001 0010 0011 0100 0101 01 10 | y <= a+b 0111 1000 | y<= 1001| y<= NOT b 1010 | y<= a AND...
Q2. Design a 8-bit ALU (Arithmetic Logic Unit) supporting the following instructions, Z and C values...
Q2. Design a 8-bit ALU (Arithmetic Logic Unit) supporting the following instructions, Z and C values should be re-evaluated (updated) ifY changes Instruction type code[2:0] operations Logical Status update 001 010 011 100 101 110 ( Bitwise AND) Y = A & B: | Z (C is always 0) (bitwise OR) Y- A B; (bitwise XOR) Y-A B Z (Cis always 0) (negation) Y =-A; (Addition) Y A + B: (subtraction) Y = A-B: (Increment) Y-A+1 (decrement) Y-A-1 Z (C...
ALU Design Design (step–by–step) and implement an 1–bit Arithmetic Logic Unit (ALU) that will perform the...
ALU Design Design (step–by–step) and implement an 1–bit Arithmetic Logic Unit (ALU) that will perform the following arithmetic and logical operations: • NOT b • a AND b • a OR b •a+b •a-b
FIRST ACTIVITY: (100/100) . SIMPLE 4-BIT ARITHMETIC LOGIC UNIT (ALU): This circuit selects between arithmetic (absolute...
FIRST ACTIVITY: (100/100) . SIMPLE 4-BIT ARITHMETIC LOGIC UNIT (ALU): This circuit selects between arithmetic (absolute value, addition) and logical (XOR, AND) operations. Only one result (hexadecimal value) can be shown on the 7-segment display This is selected by the input sel (1..0) B A-BI A+B A xnor B A nand B Input EN: If EN-1result appears on the 7 segment display. If EN=0 → all LEDs in the 7 segment display are off Arithmetic operations: The 4-bit inputs A...
Implement an arithmetic logic unit (ALU) using Verilog. Consider signed number arithmetic operation. The outputs of...
Implement an arithmetic logic unit (ALU) using Verilog. Consider signed number arithmetic operation. The outputs of the ALU should be 1) Addition of two 8-bit numbers 2) A Zero Flag. It is set (it is 1 if the condition is met and 0 otherwise) if the result is zero. 3) A Negative Flag. It is set (it is 1 if the condition is met and 0 otherwise) if the result is less than 0. 4) An Overflow Flag. It is...
Problem 3 - Arithmetie Logic Unit (ALU) Design us poins Design a 4-bit ALU that has two selection...
Problem 3 - Arithmetie Logic Unit (ALU) Design us poins Design a 4-bit ALU that has two selection variables Si Design an optimized circuit (mus external gates for circuit B operates based on the function table given below. The arithmetic unit and So and generates the arithmetic operations given below. and generatest Use a 4-1 MUX block with Si So Cin = 1 F-A (complement) F = A+B (add) FB (transfer) F A+B F = A+ 1 (negate) F A+B+...
3. Perform the following arithmetic operations in Binary and present your resu indicate the C &Z...
3. Perform the following arithmetic operations in Binary and present your resu indicate the C &Z & DC flags status after each operation: (18 Points) (NOTE: another way of indicating that the value is HEX) nd present your results in HEX and also (a) OX48 - 0X75 (d) OX56 - OXAD (b) OXEF + OXAC (e) OX34 - OXE7 (c) OX49 + OX9D (f) OXFE - OX02 6. Perform the following logic operations in Binary and present your results innen...
This section gives you freedom to come up with your own
solutions.
An Arithmetic and Logic Unit (ALU) is a combinational circuit
that performs logic and arithmetic micro-operations on a pair of
4-bit operands. The operations performed by an ALU are controlled
by a set of function-select inputs. In this lab you will
design a 4-bit ALU with 3 function-select inputs: Mode M, Select S1
and S0 inputs. The mode input M selects between a Logic (M=0) and
Arithmetic (M=1)...
Using Structural Modeling in VHDL write the
code for:
An Arithmetic Logic Unit (ALU) shown in the
figure below. A (16-bit), B
(16-bit), Opcode (3-bit), and
Mode (1-bit) are the inputs; and
ALUOut (16-bit) and Cout (1-bit) are the outputs
of the design. A and B hold the values of the operands. Mode and
Opcode together indicate the type of the operation performed by
ALU.
The ALU components ARE:
-Arithmetic Unit that consists of one 16-bit
adder, 16-bit subtractor, 16-bit...
1. Implement this ALU in VHDL: a (7:0) b (7:0) Logic Unit Mux y (7:0) Arithmetic Unit sel (3) cin sel (3:0) Function Transfera Increment a Decrement a Transfer b Increment b Decrement b Add a and b Add a and b with carr Complement a Complement b AND OR NAND NOR XOR Se eration Unit 0001 0010 0011 0100 0101 01 10 | y <= a+b 0111 1000 | y<= 1001| y<= NOT b 1010 | y<= a AND...
Q2. Design a 8-bit ALU (Arithmetic Logic Unit) supporting the following instructions, Z and C values should be re-evaluated (updated) ifY changes Instruction type code[2:0] operations Logical Status update 001 010 011 100 101 110 ( Bitwise AND) Y = A & B: | Z (C is always 0) (bitwise OR) Y- A B; (bitwise XOR) Y-A B Z (Cis always 0) (negation) Y =-A; (Addition) Y A + B: (subtraction) Y = A-B: (Increment) Y-A+1 (decrement) Y-A-1 Z (C...
FIRST ACTIVITY: (100/100) . SIMPLE 4-BIT ARITHMETIC LOGIC UNIT (ALU): This circuit selects between arithmetic (absolute value, addition) and logical (XOR, AND) operations. Only one result (hexadecimal value) can be shown on the 7-segment display This is selected by the input sel (1..0) B A-BI A+B A xnor B A nand B Input EN: If EN-1result appears on the 7 segment display. If EN=0 → all LEDs in the 7 segment display are off Arithmetic operations: The 4-bit inputs A...
Problem 3 - Arithmetie Logic Unit (ALU) Design us poins Design a 4-bit ALU that has two selection variables Si Design an optimized circuit (mus external gates for circuit B operates based on the function table given below. The arithmetic unit and So and generates the arithmetic operations given below. and generatest Use a 4-1 MUX block with Si So Cin = 1 F-A (complement) F = A+B (add) FB (transfer) F A+B F = A+ 1 (negate) F A+B+...
3. Perform the following arithmetic operations in Binary and present your resu indicate the C &Z & DC flags status after each operation: (18 Points) (NOTE: another way of indicating that the value is HEX) nd present your results in HEX and also (a) OX48 - 0X75 (d) OX56 - OXAD (b) OXEF + OXAC (e) OX34 - OXE7 (c) OX49 + OX9D (f) OXFE - OX02 6. Perform the following logic operations in Binary and present your results innen...
