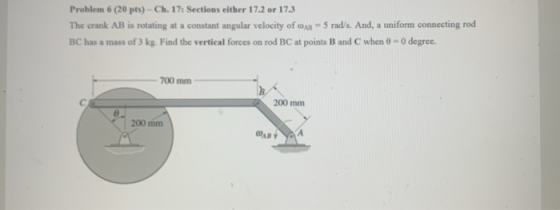

Problem 6 (20 pts) - Ch. 17: Sections either 17.2 or 17.3 The crank AB is...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

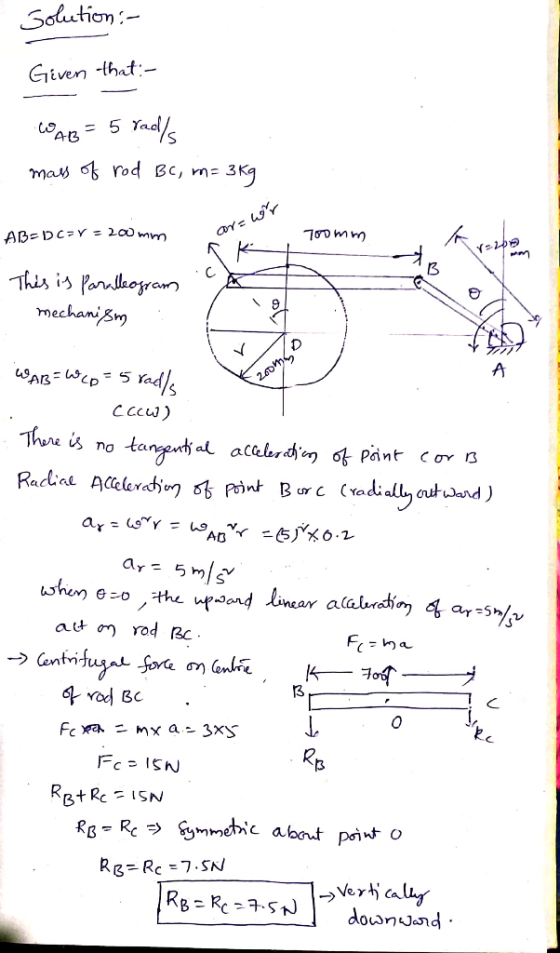

Solution :- Given that:- .C04B = 5 radys mass of rod BC, m= 3 kg AB-DCZY = 200 mm cms 700mm ob m ca This is Paralleogram mech

Answer 2

Similar Homework Help Questions

Problem 3.3 In the engine system shown, the crank AB has a constant counterclockwise angular velocity of 200 rad/s...

Problem 3.3 In the engine system shown, the crank AB has a constant counterclockwise angular velocity of 200 rad/s. Assume that AB-75mm and BD-200 mm. For the crank position indicated determine (a) the angular velocity of the connecting rod BD, (b) the angular acceleration of the connecting rod BD and (c) the velocity and the acceleration of point D. Problem 3.4 A thin homogeneous wire with Determine the period of small oscillation if the wire (a) is suspended as shown,...
Problem 1 Crank AB is rotating with an angular velocity of 4 rad/s as shown below....

Problem 1 Crank AB is rotating with an angular velocity of 4 rad/s as shown below. Currently, crank AB is vertical, and link BC is horizontal. Determine the angular velocity of link BC, and the velocity of piston C at this instant. Hint: C goes up. 0.6 m 45° B 0.3 m ФАВ 4 rad/s
Fig. P16.135 and P16.136 150 rad/scounterclockwise, determine (a) the couple M, (b) the components of the...

Fig. P16.135 and P16.136 150 rad/scounterclockwise, determine (a) the couple M, (b) the components of the force exerted at C on rod BC. 16.137 In the engine system shown 1 = 250 mm and b = 100 mm. The connecting rod BD is assumed to be a 1.2-kg uniform slender rod and is attached to the 1.8-kg piston P. During a test of the system, crank AB is made to rotate with a constant angular velocity of 600 rpm clockwise...

1. At the instant shown, the angular velocity of the cam AB is 30 rad/s. The...

1. At the instant shown, the angular velocity of the cam AB is 30 rad/s. The link BC is horizontal, and rod CD is vertical. Use the following dimensions: d1 = 300 mm, d2 = 600 mm, dz = 400 mm, and 0= 30°. a) For link BC, draw a kinematic diagram to show all vectors involved in velocity analysis. (3 pts) b) Use the relative velocity equation (NOT the instantaneous center of zero velocity) to determine the angular velocity...
WhatsApp + @ 52% 11:17 docs.google.com If bar AB has an angular velocity of 6 rad/s,...

WhatsApp + @ 52% 11:17 docs.google.com If bar AB has an angular velocity of 6 rad/s, determine the angular velocity of *.link BC at the instant shown 30° 200 mm B 150 mm WAB = 6 rad/s 60° 1.4 rad/s 8.5 rad/s O E
0 Required information Problem 16.138 General plane motion: System of rigid bodies: Rod and piston DEPENDENT...

0 Required information Problem 16.138 General plane motion: System of rigid bodies: Rod and piston DEPENDENT MULTI PART PROBLEM - ASSIGN ALL PARTS NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. In the engine system shown, /=250 mm and b=100 mm. The connecting rod BD is assumed to be a 1.7-kg uniform slender rod and is attached to the 1.8-kg piston During a test of the system, crank...

. Question 9 4 pts Suppose a disk of radius R = 6 cm is rotating...

. Question 9 4 pts Suppose a disk of radius R = 6 cm is rotating with an angular velocity w = 7 rad/s. What is the speed of a point on the rim of the disk? 200 m/s O 0.84 m/s 14 m/s - 168 m/s O 42 m/s O 0.42 m/s 1.68 m/s 0.06 m/s 0.72 m/s Question 10 4 pts Suppose the angular velocity of a disk of radius R = 6 cm increases uniformly from 14...
