Find the skin depth for sea water whose resistivity is ρ = 0.20 Ω / m...

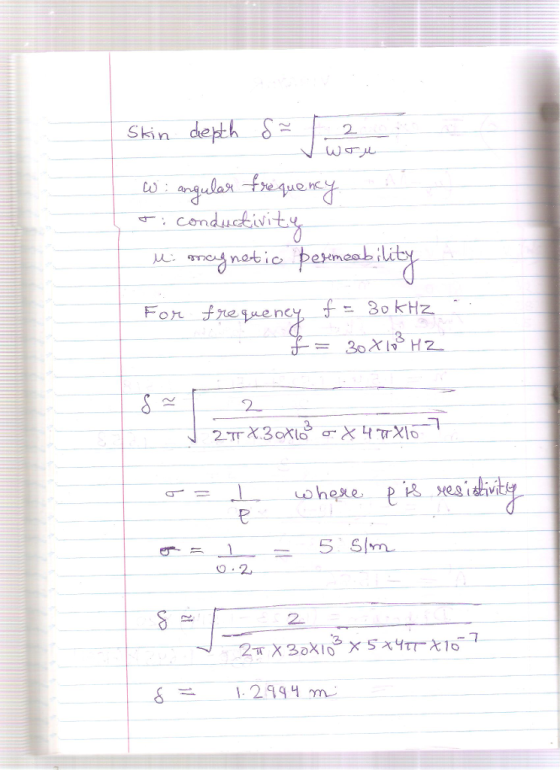

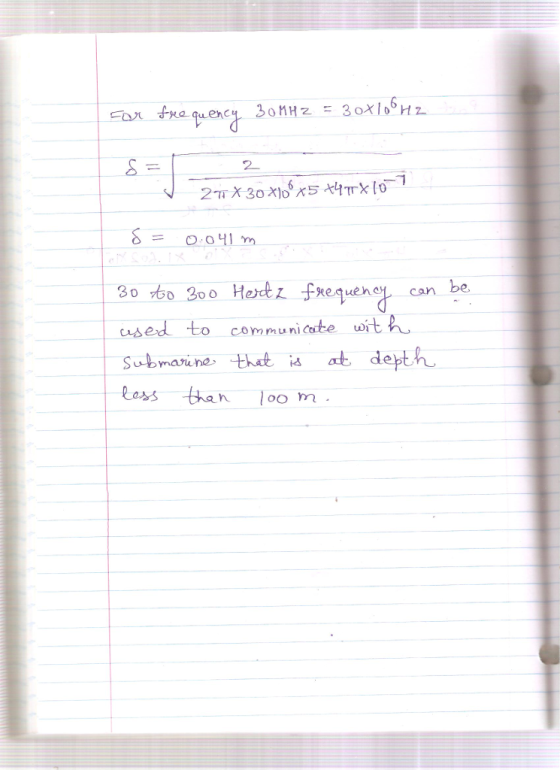

Find the skin depth for sea water whose resistivity is ρ = 0.20 Ω / m for a frequency of 30 Khz and 30 Mhz. What frequency would you use to communicate with a submarine that is at a depth of less than 100 m?
Homework Answers
Add Answer to:
Find the skin depth for sea water whose resistivity is ρ = 0.20
Ω / m...
