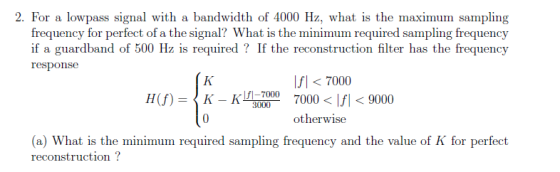

2. For a lowpass signal with a bandwidth of 4000 Hz, what is the
maximum sampling
frequency for perfect of a the signal? What is the minimum required
sampling frequency
if a guardband of 500 Hz is required ? If the reconstruction lter
has the frequency
response
(a) What is the minimum required sampling frequency and the value
of K for perfect
reconstruction ?

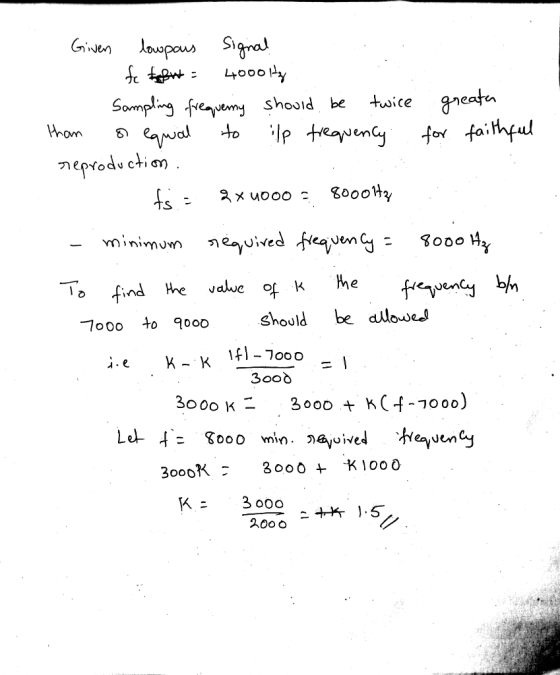

Homework Answers
Add Answer to:
2. For a lowpass signal with a bandwidth of 4000 Hz, what is the
maximum sampling...
For a lowpass signal with a bandwidth of 6000 Hz, what is the minimum sampling frequency...
For a lowpass signal with a bandwidth of 6000 Hz, what is the minimum sampling frequency for perfect reconstruction of the signal? What is the minimum required sampling frequency if a guard band of 2000 Hz is required? What is the minimum required sampling frequency and the value of K for perfect reconstruction if the nstruction filter has the following frequency response lfl 7000 K-Kino 7000, 0, H(f) = 7000 < lfl < 10000) otherwise
