When an AC source is connected across a 22.0 Ω resistor, the output voltage is given...

Question

Question

When an AC source is connected across a 22.0 Ω resistor, the output voltage is given by Δv = (140 V)sin(70πt). Determine the following quantities.

(a) maximum voltage
____ V

(b) rms voltage
____ V

(c) rms current
____ A

(d) peak current
____ A

(e) Find the current when t = 0.0045 s.
____ A

science physics

Answer 1

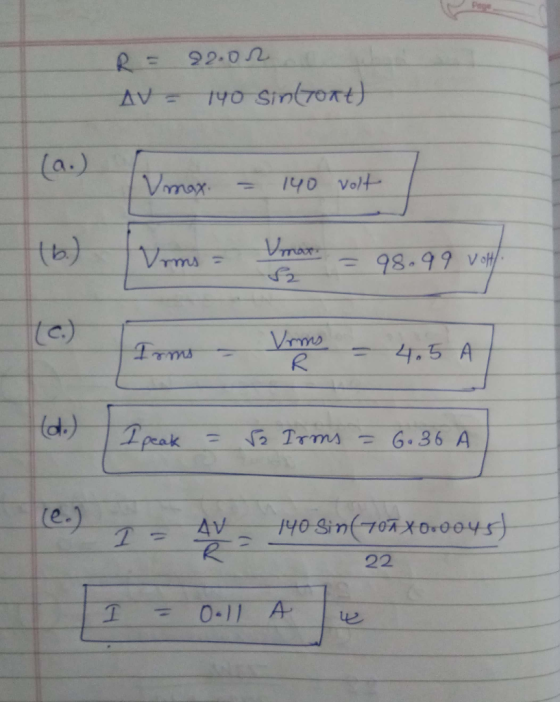

Answer #1

Vrror 午5-A-

Answer 2
