The output voltage of an AC generator is given by Δv = (110 V)sin(50πt). The generator...

The output voltage of an AC generator is given by

Δv = (110 V)sin(50πt).

The generator is connected across a 14.0-Ω resistor.

(a) By inspection, what is the maximum voltage?
V

(b) By inspection, what is the frequency?
Hz

(c) Find the rms voltage across the resistor.
V

(d) Find the rms current in the resistor.
A

(e) Find the maximum current in the resistor.
A

(f) Find the power delivered to the resistor.
W

(g) Find the current when

t = 0.0050 s.


A

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

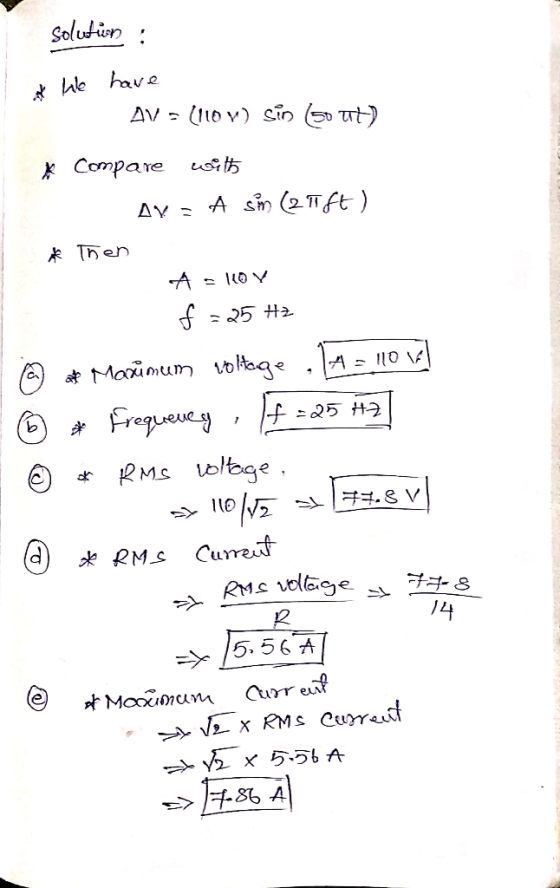

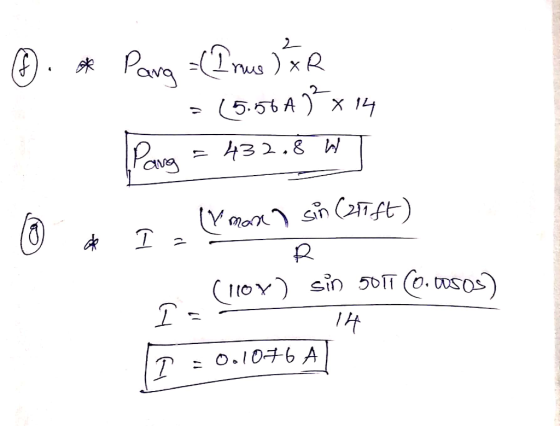

Answer #1

0 0
Add a comment
