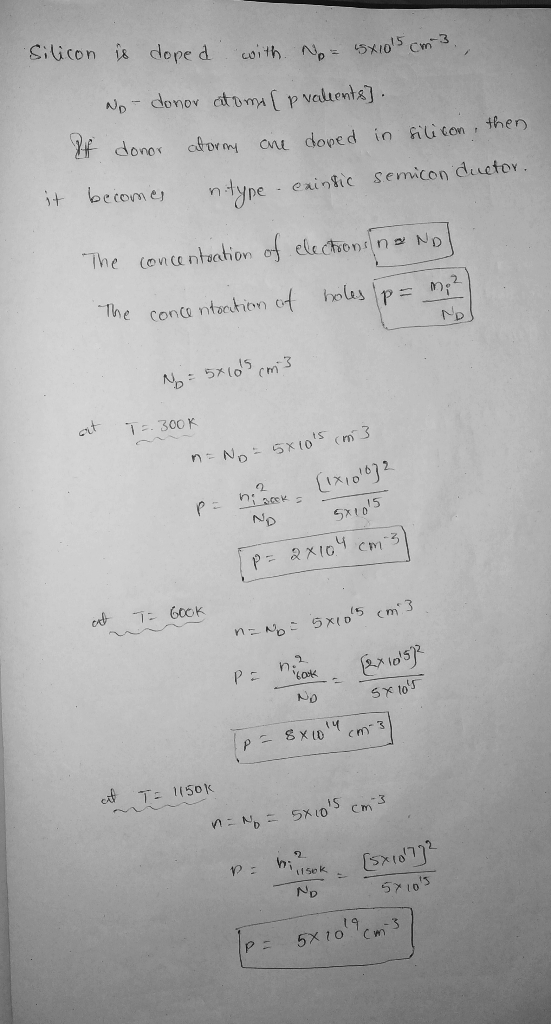

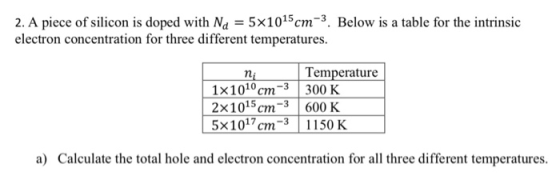

2. A piece of silicon is doped with Na5x1015cm-3. Below is a table for the intrinsic...
(a) Assuming that the Fermi level is at the midgap in the intrinsic silicon, calculate the probability of finding an electron at the bottom of the conduction band (E=Ec) for three different temperatures: 0K, 20C, 100C? (b) How are these probabilities related to the probabilities of finding a hole at E=Ev, which is the top of the valence band? (c) A sample of silicon is doped with 1016 cm-3 of arsenic and 3x1016 cm-3 of boron. Calculate n, p, and...
P3. (a) Determine the position of the Fermi level with respect to the intrinsic Fermi level in silicon at T = 300'K that is doped with phosphors atoms at a concentration of 1015 cm. (b) Repeat (a) if the silicon is doped with boron atoms at a concentration of 10'5 cm3. (c) Calculate the electron concentration in the silicon for parts (a) and (b) P1. For the Boltzmann approximation to be valid for a semiconductor, the Fermi level must be...
A silicon semiconductor material is doped with 3x1015/cm of phosphorous atoms at room temperature (300°K). Given: Electron mobility is 1450 cm2/V-s, Hole mobility is 380 cm?/V-s, Intrinsic carrier concentration (n) of Si at room temperature (300°K) 1.5x 101%cm³. Calculate the conductivity of the material
P3. (a) Determine the position of the Fermi level with respect to the intrinsic Fermi level in silicon at T = 300'K that is doped with phosphors atoms at a concentration of 1015 cm. (b) Repeat (a) if the silicon is doped with boron atoms at a concentration of 10'5 cm3. (c) Calculate the electron concentration in the silicon for parts (a) and (b)
P3. (a) Determine the position of the Fermi level with respect to the intrinsic Fermi level...
2. (a) A piece of silicon is doped with 5x107/cm boron atoms. Find the hole and electron concentrations at room temperature (20°C) and at 150°C. (b) Calculate the resistance of the silicon piece in part (a), if it has length of 10 um and cross-section of 10 um'. Use mobility values from the mobility vs carrier concentration plot from lecture slides. (c) Repeat steps (a) and (b) for the Si doped with 104 cm boron atoms. What you mention for...
QUESTION 43 (10 Marks) a) Calculate the conductivity of an intrinsic silicon (SI) semiconductor at 27°C if the hole mobility is 460 cm V's and the electron mobility is 1350 cm? Vis! Assume an intrinsic carrier density of 1.45 x 10 carriers/cm' and an electron charge of -0.16 x 10-4C (3 marks) b) Using Figure 8, calculate the conductivity of the Si intrinsic semiconductor if the temperature is increased to 150°C, assuming the same electron and hole mobilities (2 marks)...
Silicon at at T-300 K contains acceptor atoms at a concentration of Na-5x10A15 cmA-3. Donor atoms are added forming an n type compensated(counter doped) semiconductor such that the fermi level is 0.215 eV below the conduction band edge 4. a. What concentration of donor atoms were added. b. What were the concentration of holes and electrons before the silicon was counterdoped c. What are the electron and hole concentrations after the silicon was counter doped.
Silicon at at T-300 K...
Silicon at at T-300 K contains acceptor atoms at a concentration of Na-5x10A15 cmA-3. Donor atoms are added forming an n type compensated(counter doped) semiconductor such that the fermi level is 0.215 eV below the conduction band edge 4. a. What concentration of donor atoms were added. b. What were the concentration of holes and electrons before the silicon was counterdoped c. What are the electron and hole concentrations after the silicon was counter doped.
Silicon at at T-300 K...
3. A silicon npn bipolar transistor is uniformly doped and biased in the forward active region with the base-collector junction reverse biased by 2.5 V. The metallurgical base width is 1.5 μm. The emitter, base collector doping concentrations are 5 × 1017, 1016, 2 × 1015 cm-3 respectively. a. At T-300 K, calculate the base-emitter voltage at which the minority carrier electron concentration at x-0 is 20% of the majority carrier hole concentration. At this voltage calculate the minority carrier...
A piece of p-type GaAs is doped with a net impurity concentration of N Na-5 × 1018 m-3. Is it degenerate or nondegenerate? Find its electron and hole concentrations and its Fermi level at 300 K. How much is the shift of the Fermi level, measured from the intrinsic Fermi level, caused by the doping of the impurity? Compare the results obtained in this problem for the p-type GaAs with those found in Example 12.3 for the n-type GaAs of...
