(a) Assuming that the Fermi level is at the midgap in the intrinsic silicon, calculate the...

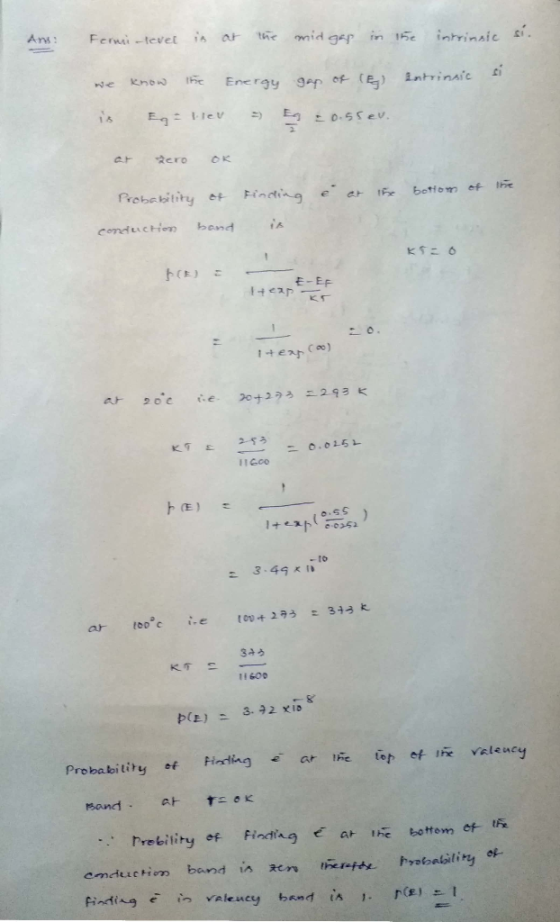

(a) Assuming that the Fermi level is at the midgap in the
intrinsic silicon,
calculate the probability of finding an electron at the bottom of
the conduction
band (E=Ec) for three different temperatures: 0K, 20C, 100C?
(b) How are these probabilities related to the probabilities of
finding a hole
at E=Ev, which is the top of the valence band?

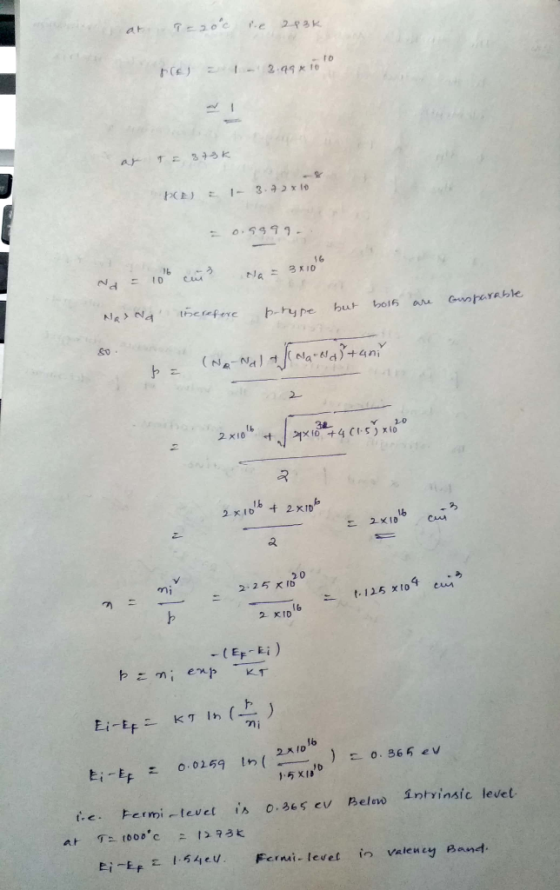

(c) A sample of silicon is doped with 1016 cm-3 of arsenic and
3x1016 cm-3 of
boron. Calculate n, p, and Ef for room temperature and 1000 C.
