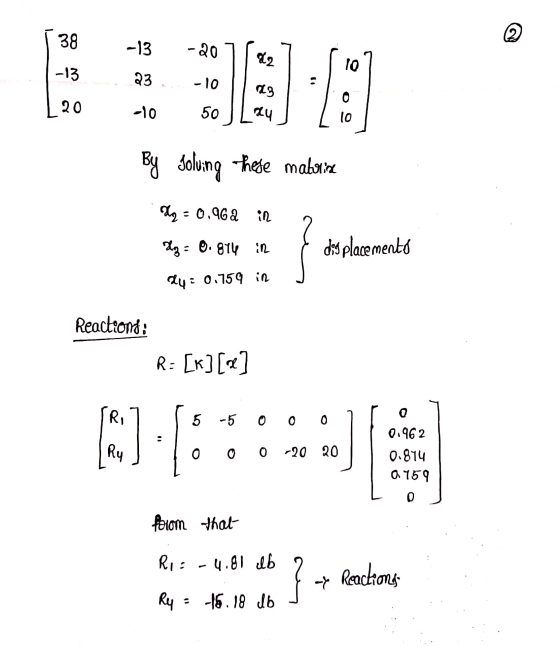

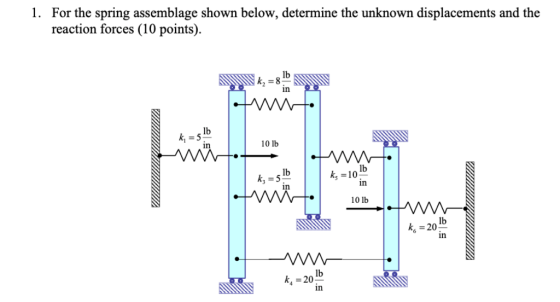

1. For the spring assemblage shown below, determine the unknown displacements and the reaction forces (10...
1. Find displacements at each node and forces in each element for the series of spring shown below. (20 points) 3 4 3 100 K k1 k4 u2 k3 из U4 k1 50 k/in k2- 20 k/in k3-40 k/in k4-50 k/in 2. For the following truss structure, all the members has the same elastic modulus E and cross section area A. (10 points) 2 4000 lb 10.000 lb 3 3 4 30 in. 30 in. 30 in Find the structural...
For the spring assemblage shown in Figure 2-13, obtain (a) the global stiffness matrix, (b) the displacements of nodes 2-4, (c) the global nodal forces, and (d) the local element forces. Node l is fixed while node 5 is given a fixed, known displacement δ= 20.0 mm. The spring constants are all equal to k = 200 kN/m.
2. For the spring assemblages shown in Figures 2a through 2e, determine the nodal displacements, the forces in each element, and the reactions. k = 3000 lb/in. k =3000 lb/in. k = 3000 lb/in. 2000 lb 1000 lb 4 Figure 2a. k= 500 lb/in. a 3000 lb/in. 2000 lb V 4 Rigid bar_ k =500 lb/in. Figure 2b.
For the bar assemblage shown Data: in the figure, determine the nodal displacements, the E=nx10" Pa forces in each element, the L; =nx 500mm A=nx10-m? 13 reactions and the stresses L =nx 500mm F =nx10*N L = n x 250mm F2 = 2.5x F, F2 12 L

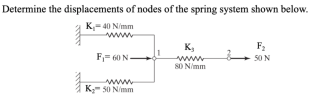

|Determine the displacements of nodes of the spring system shown below K=40 N/mm WW Кз 1 Fi= 60 N 50 N WWw 80 N/mm Ww K2= 50 N/mm
|Determine the displacements of nodes of the spring system shown below K=40 N/mm WW Кз 1 Fi= 60 N 50 N WWw 80 N/mm Ww K2= 50 N/mm
N is 1
QUESTION 2 For the bar assemblage shown Data: in the figure, determine the nodal displacements, the E =nx10" Pa forces in each element, the A=nx10-?m? reactions and the stresses. L =nx 500mm Ly =n x500mm F=nx104N L2 =nx 250mm F, = 2.5x F, MITT L 1 L2
For the beam shown in below, determine the displacements and rotations at the nodes, the forces in each element, and reactions. Also, draw the shear force and bending moment diagrams 10 kN 2 E210 GPa .20 kN m
For the beam shown in below, determine the displacements and rotations at the nodes, the forces in each element, and reactions. Also, draw the shear force and bending moment diagrams 10 kN 2 E210 GPa .20 kN m
Problem 4. (3 points). Determine the nodal displacements and reaction forces using the finite element direct method for the 1-D bar elements connected as shown below. Do not rename the nodes or elements when solving. Assume that bars can only undergo translation in x (1 DOF at each node). Nodes 1 and 4 are fixed Elements 1, 2 and 3 have Young's Modulus of Ei-300 Pa, E2-200 Pa, Es-200 Pa. All elements have o ae of 20 N 20 N...
I need some help with this spring assemblage question. In the
image below the nodes are actually reorganized in the question in
the order of 1-5-4-3-2. Now Knowing that I have to a) write the
global stiffness matrix for it b) if nodes 1 and 2 are fixed and a
force P is at node 4 what is the nodal displacement, c) I need to
find the reactions at 1 and 5 and finally d) I need to find the...
Three rigid bodies (Nodes 2, 3, and 4) are connected by five
springs as shown below. Assume that the
bodies can only undergo translation in the horizontal direction.
Horizontal force P2=1000 N and
P4=1500 N is applied to Elements 2 and 4, respectively. The spring
constants in (N/mm) are given as:
k1=400, k2=500, k3=600, k4=100, and k5=300. Nodes 1 and 5 are
fixed. Determine the nodal
displacements and reaction forces at the walls.
Problem 1. (3 points) Three rigid bodies...
