Please show all the steps, a free-body diagram, and state all assumptions for this problem.

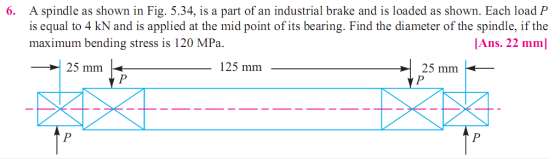

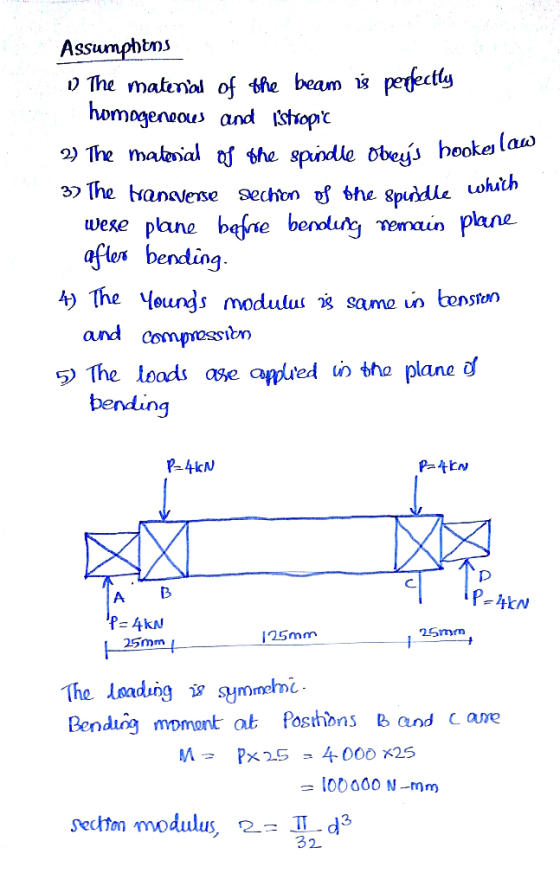

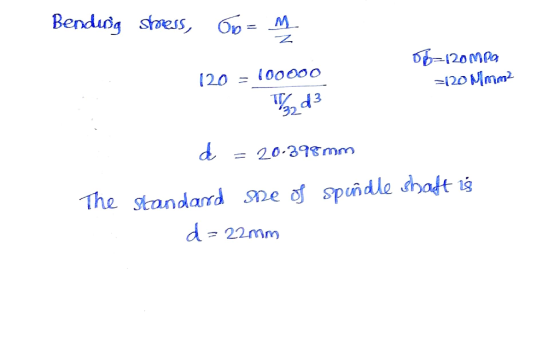

Please show all the steps, a free-body diagram, and state all assumptions for this problem. 6....
Please show all steps, sketch free-body diagram, and
state assumptions.
Create a drawing of the designed cotter joint. Assume
non-critical dimensions.
Design stresses are 55 MPa in tension; 40 MPa in shear and 70 MPa in crushing. Draw a neat sketch of the joint designed joint to connect two mild steel rods for a pull of 30 kN. The maximum permissible 1 a cotter [Ans. d 22 mm; d,=32 mm ; t= 14 mm ; d, =44 mm ; b=30...
A vertical load P = 150 kN is applied to a circular solid shaft which in turn is supported by a circular end cap as shown below. Both members are made of steel with allowable normal stress = 160 MPa, allowable shear stress 100 MPa, and allowable bearing stress 200 MPa. Determine the minimum required diameter of the solid shaft, and the minimum required outer diameter and thickness of the circular end plate. P 150 kN ds d 30 mm...
Please show all work including a free body
diagram.
Thanks
Determine the deflection at the load P for the three-sided bracket shown in the Figure below. The bracket has the same material and cross section throughout. With solid steel rods of 56 mm diameter, using E = 200 GPa, G= 77 GPa, a = 300 mm, b = 800 mm, and P= 5.5 kN. Р 3
Figure 5.2 shown a hollow brass pipe with 125 mm diameter and 6 mm thickness (c) has an axial load P applied 5 mm from the geometric axis Using Young Modulus, E 120 GPa, determine; . The load P for which the horizontal deflection at the mid-point C is 5 mm ii. The corresponding maximum stress in the column. P A 125 mm 2.7 m C B Figure 5.2 Brass pipe
Figure 5.2 shown a hollow brass pipe with 125...
the hollow tube down has an outside diameter of 45 mm
and an inside diameter of 40 mm. the tube is made of an aluminum
alloy with a minimum yield strength of 280 MPa. the bending load is
F =1.5 kN, the axial load is P = 10kN and the twisting moment is T
= 70 N-m. Determine the factor of safety based on the stress at
point A using (a) the maximum shear stress theory and (b) the
distortion...
1.51 In the steel structure shown, a 6-mm-diameter pin is used at C and 10-mm-diameter pins are used at B and D. The ultimate shearing stress is 150 MPa at all connections, and the ultimate normal stress is 400 MPa in link BD. Knowing that a factor of safety of 3.0 is desired, determine the largest load P that can be applied at A. Note that ink BD is not reinforced around the pin holes Front view 18 mm Side...
if you can just do a and b ( would be appreciate ) i
need to learn the concept
Fig. Q.1 2. A steel plate (Fig. Q.2) is riveted to a vertical pillar diameter and carry the load and moment resulting fro he rivets have a 15 mm civeted to from the external load of 8 KN. eters. The yield strengths of the materials are I length dimensions are in The (Sy)mvet 600 MPa and (Sy)plate 350 MPa. Calculate the...
2. A steel plate (Fig Q.2) is riveted to a vertical pillar. The three rivets have a 15mm diameter and carry the load and moment resulting from the external load of 8 N All length dmensions are in milimeters. The yield strengths of the matenials are (S 600 MPa and (S 350 MPa. Calculate the safety factors for a Shear of rivet when Say 0.57 S (10 pts) b. Bearing of met when σ--o 9 s, (10 pts) c Beanng...
A concentrated force P is applied in the middle of a simply supported beam with the T-shaped cross section shown. The maximum value of the load P so that the normal stress in the beam does not exceed 25 MPa is most closely: 150 mm P 30 mm 4m 4m 120 mm A' B A 40 mm A. 3.1 kN B. 5.8 kN Oc. 2.5 kN D. 4.3 kN
A concentrated force P is applied in the middle of a...
ESP 3-6: The simply supported beam is built up from three boards by nailing them together as shown. The wood has an allowable shear stress of Tallow=1.9 MPa, and an allowable bending stress of allow=8.4 MPa. The nails are spaced at s = 75 mm, and each has a shear strength of 1 kN. Determine the maximum allowable force P that can be applied to the beam. А. -1m- 25 mm 25 mm 200 mm 125 mm
