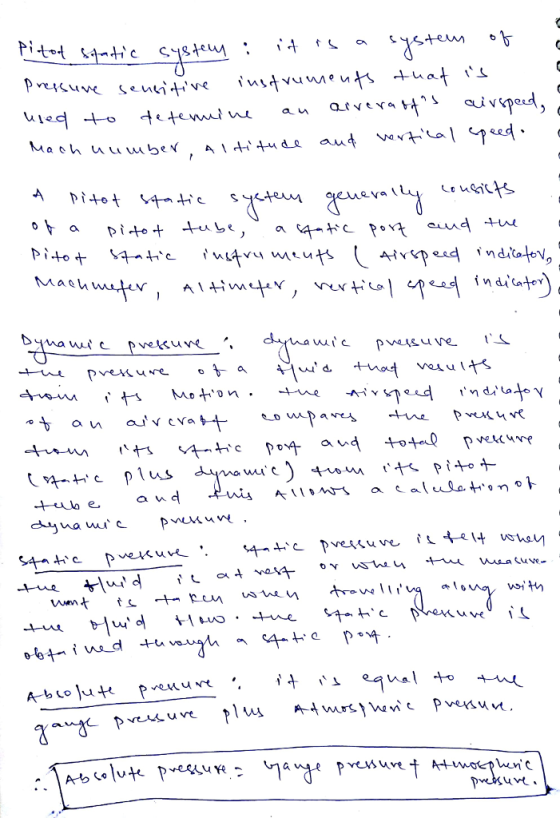

Define pitot-static system, also define dynamic pressure, absolute and static pressure
Homework Answers
Add Answer to:
Define pitot-static system, also define dynamic pressure, absolute
and static pressure
Due to dynamic pressure Due to static pressure Datum Pitot tube OS 009 8) How would...
Due to dynamic pressure Due to static pressure Datum Pitot tube OS 009 8) How would the height h change if one changes the elevation of the point B (i.e., bringing the pitot tube up or down). What happens if B reaches the bottom of the channel? Explain. 10
Based on the definitions of static, dynamic and hydrostatic pressure which of these pressures is used...
Based on the definitions of static, dynamic and hydrostatic pressure which of these pressures is used by a pitot tube operating in a constant flow air stream? A. Dynamic Only B. Dynamic and Static C. Dynamic and Hydrostatic D. Hydrostatic and Static
Can someone explain what is happening in this diagram why are there two exits for pressure P in the actual tube. Pitot-static tube To manometer Po Bernoulli's equation along AO: 2 Pitot-stat...
Can someone explain what is happening in this diagram why are
there two exits for pressure P in the actual tube.
Pitot-static tube To manometer Po Bernoulli's equation along AO: 2
Pitot-static tube To manometer Po Bernoulli's equation along AO: 2
Velocity data analysis: Air flow speed is tested using a Pitot tube. Table 1 summarizes the...
Velocity data analysis: Air flow speed is tested using a Pitot tube. Table 1 summarizes the Power supply of the wind tunnel and the dynamic pressure DP. The dynamic pressure P, is the difference between the total pressure P, and the static pressure P, measured by the Pitot tube. Please determine: 1) the air flow speed at each power supply (consider room 2) Plot the flow speed vs power supply using a computer 3) If the relation of the flow...
What is the difference between Static pressure Stagnation pressure Dynamic pressure? Make a sketch and explain!...
What is the difference between Static pressure Stagnation pressure Dynamic pressure? Make a sketch and explain! What is the relation between the three pressures? How can you calculate the dynamic pressure?
calculate the static and dynamic lung pressure. peak pressure 40 cmH2O plateu preasure 32 cm H2O...
calculate the static and dynamic lung pressure. peak pressure 40 cmH2O plateu preasure 32 cm H2O peep 5 cmH2O exhaled volume 400 ml
System and computer engineering Model the dynamic systems in STAT VARIABLE form define the order of...
System and computer engineering
Model the dynamic systems in STAT VARIABLE form
define the order of the system first. Then dram simulation
diagram
Model the following dynamic systems in state variable form. Clearly define the energy storage devices and the corresponding state variables which define the energy in each device. Define the order of the system. Draw the simulation diagram for each system. 4.Input is e(t) Output is edt) e Le)
Question 3. i. Define absolute pressure, gage pressure and vacuum pressure. ii. If a mercury barometer...
Question 3. i. Define absolute pressure, gage pressure and vacuum pressure. ii. If a mercury barometer reads 720 mm Hg. Determine the atmospheric pressure in kPa and psi. (I psi -6.895 kPa. Density of Hg - 13.56 g/cc). Question 4 i. Define/explain energy, kinetic energy, potential energy and internal energy ii. Explain the contribution/mechanism of internal energy with sketch.
2. Find the Mach number and air speed corresponding of 500 kPa(abs) in an air flow with a (static) pressure of 100 kPa...
2. Find the Mach number and air speed corresponding of 500 kPa(abs) in an air flow with a (static) pressure of 100 kPa and measured (stagnation) temperature of 500 K. DISCUSSION: Suppose that, instead of assuming that a normal shock occurs upstream of the Pitot tube, it is assumed that the flow upstream is ISENTROPIC... what would the estimated flow speed be in that case? (NOTE: A normal shock is always observed to form upstream of bluff bodies such as...
Demonstrate step by step if the following system is: 1. Static or dynamic. 2. Linear or...
Demonstrate step by step if the following system is: 1. Static or dynamic. 2. Linear or non-linear. 3. Invariant or variant in time. 4. Causal or not causal. 5. Stable or unstable. y(n)=x(n)+3u(n-2)
Due to dynamic pressure Due to static pressure Datum Pitot tube OS 009 8) How would the height h change if one changes the elevation of the point B (i.e., bringing the pitot tube up or down). What happens if B reaches the bottom of the channel? Explain. 10
Can someone explain what is happening in this diagram why are
there two exits for pressure P in the actual tube.
Pitot-static tube To manometer Po Bernoulli's equation along AO: 2
Pitot-static tube To manometer Po Bernoulli's equation along AO: 2
Velocity data analysis: Air flow speed is tested using a Pitot tube. Table 1 summarizes the Power supply of the wind tunnel and the dynamic pressure DP. The dynamic pressure P, is the difference between the total pressure P, and the static pressure P, measured by the Pitot tube. Please determine: 1) the air flow speed at each power supply (consider room 2) Plot the flow speed vs power supply using a computer 3) If the relation of the flow...
System and computer engineering
Model the dynamic systems in STAT VARIABLE form
define the order of the system first. Then dram simulation
diagram
Model the following dynamic systems in state variable form. Clearly define the energy storage devices and the corresponding state variables which define the energy in each device. Define the order of the system. Draw the simulation diagram for each system. 4.Input is e(t) Output is edt) e Le)
Question 3. i. Define absolute pressure, gage pressure and vacuum pressure. ii. If a mercury barometer reads 720 mm Hg. Determine the atmospheric pressure in kPa and psi. (I psi -6.895 kPa. Density of Hg - 13.56 g/cc). Question 4 i. Define/explain energy, kinetic energy, potential energy and internal energy ii. Explain the contribution/mechanism of internal energy with sketch.
2. Find the Mach number and air speed corresponding of 500 kPa(abs) in an air flow with a (static) pressure of 100 kPa and measured (stagnation) temperature of 500 K. DISCUSSION: Suppose that, instead of assuming that a normal shock occurs upstream of the Pitot tube, it is assumed that the flow upstream is ISENTROPIC... what would the estimated flow speed be in that case? (NOTE: A normal shock is always observed to form upstream of bluff bodies such as...
