Based on the definitions of static, dynamic and hydrostatic pressure which of these pressures is used...

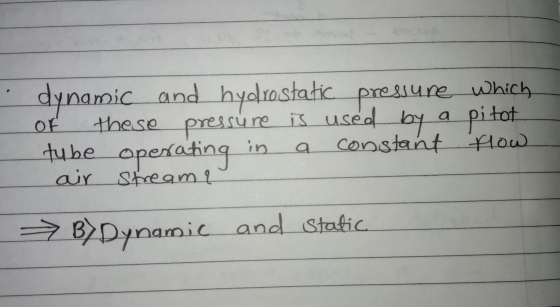

Based on the definitions of static, dynamic and hydrostatic pressure which of these pressures is used by a pitot tube operating in a constant flow air stream?
A. Dynamic Only
B. Dynamic and Static
C. Dynamic and Hydrostatic
D. Hydrostatic and Static
Homework Answers
