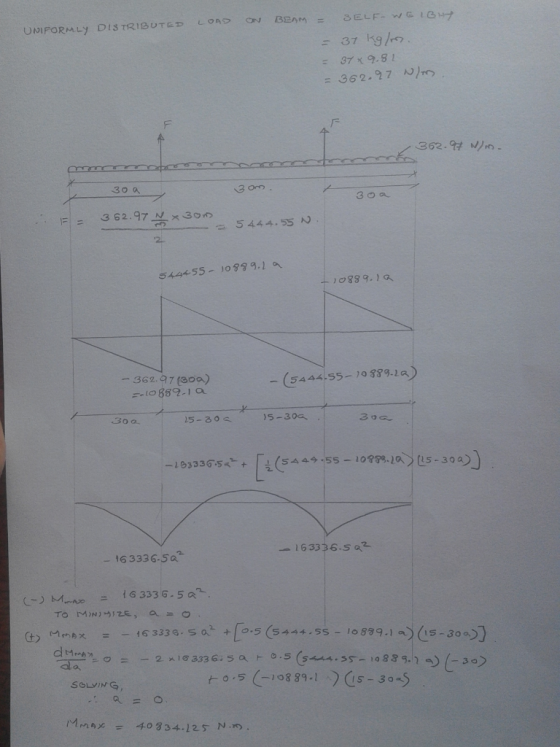

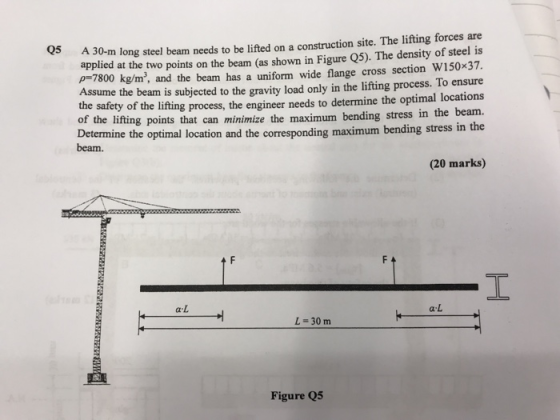

Qs A 30-m long steel beam needs to be lifted on a construction site. The lifting...
The low strength concrete floor slab is integrated with a wide- flange A-36 steel beam using...
The low strength concrete floor slab is integrated with a wide- flange A-36 steel beam using shear studs (not shown) to form the composite beam. (Figure 1) Part A If the allowable bending stress for the concrete is (Gallow)con = 10 MPa and allowable bending stress for steel is allow)st = 165 MPa, determine the maximum allowable internal moment M that can be applied to the beam. Express your answer with the appropriate units. Figure 1 of 1 H HÅ...
Figure 2a shows a composite beam made by placing three steel plates inside a wooden section....
Figure 2a shows a composite beam made by placing three
steel plates inside a wooden
section.
(a) Determine the maximum bending stress developed in the wooden
section and steel plate
if the beam is subjected to allowable bending moment, M of 20 kN.m.
Given that the
Modulus of Elasticity of wood is 13.1 GPa and steel is 200
GPa.
[14 Marks]
Figure 2a: Composite beam
(b) Figure 2b shows another beam without steel plates. Suggest the
maximum bending
stress for...
The internal shear force at a certain section of a steel beam is V=185 kN. The...
The internal shear force at a certain section of a steel beam is
V=185 kN. The beam cross section shown in the figure has dimensions
of tf=17 mm, bf=300 mm, d=394 mm, and tw=10 mm. Determine:
(a) the shear stress at point A, which is located at
yA=71 mm below the centroid of the wide-flange shape.
(b) the maximum horizontal shear stress in the wide-flange
shape.
The internal shear force at a certain section of a steel beam is V=...
The built-up beam is made of steel as shown in Figure 1. Knowing that modulus of...
The built-up beam is made of steel as shown in Figure 1. Knowing that modulus of elasticity for the steel is E = 200 GPa 150 mm 20 mm 150 mm 150 mm 10 mm M '10 mm 300 mm А Figure 1 (1) If the allowable tensile and compressive stress for the beam are allow tension = 140 MPa and o = 210 MPa. allow compression respectively, determine the maximum allowable internal moment M that can be applied Determine...
24 M9.4 Shear stress in a standard steel shape scenes 246 For the wide flange beam...
24 M9.4 Shear stress in a standard steel shape scenes 246 For the wide flange beam subjected to the indicated shear force V, determine the transverse shear stress acting at locations H and K. 712 84 664 216 V=930 KN TH (MPa) dimensions: mm TK (MPa) 24 Try one 1st 2nd 3rd attempt enter
The beam is subjected to a moment of M = 4.8kip·ft . (Figure 1)
The beam is subjected to a moment of M = 4.8kip·ft . (Figure 1) Part ADetermine the maximum tensile bending stress in the beam. Part B Determine the maximum compressive bending stress in the beam.
A simply supported composite beam 3 m long carries a uniformly distributed load of intensity q= 30 kN/m (see figure)
A simply supported composite beam 3 m long carries a uniformly distributed load of intensity q= 30 kN/m (see figure). The beam is constructed of a wood member, 100 mm wide by 150 mm deep, and is reinforced on its lower side by a steel plate 8 mm thick and 100 mm wide. (a) Find the maximum bending stresses σw and σs, in the wood and steel, respectively, due to the uniform load if the moduli of elasticity are Ew =...
Review Part A A wood beam is reinforced with steel straps at its top and bottorm...
Review Part A A wood beam is reinforced with steel straps at its top and bottorm as shown in the figure below (Figure 1). Determine the maximum bending stress developed in the steel if the beam is subjected to a moment of M = 110 kN-m Take E = 10 GPa 200 GPa Express your answer to three significant figures and include appropriate units. Units Submit Request Answer Part B Determine the maximum bending stress developed in the wood. Express...
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine...
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine...
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
The low strength concrete floor slab is integrated with a wide- flange A-36 steel beam using shear studs (not shown) to form the composite beam. (Figure 1) Part A If the allowable bending stress for the concrete is (Gallow)con = 10 MPa and allowable bending stress for steel is allow)st = 165 MPa, determine the maximum allowable internal moment M that can be applied to the beam. Express your answer with the appropriate units. Figure 1 of 1 H HÅ...
Figure 2a shows a composite beam made by placing three
steel plates inside a wooden
section.
(a) Determine the maximum bending stress developed in the wooden
section and steel plate
if the beam is subjected to allowable bending moment, M of 20 kN.m.
Given that the
Modulus of Elasticity of wood is 13.1 GPa and steel is 200
GPa.
[14 Marks]
Figure 2a: Composite beam
(b) Figure 2b shows another beam without steel plates. Suggest the
maximum bending
stress for...
The internal shear force at a certain section of a steel beam is
V=185 kN. The beam cross section shown in the figure has dimensions
of tf=17 mm, bf=300 mm, d=394 mm, and tw=10 mm. Determine:
(a) the shear stress at point A, which is located at
yA=71 mm below the centroid of the wide-flange shape.
(b) the maximum horizontal shear stress in the wide-flange
shape.
The internal shear force at a certain section of a steel beam is V=...
The built-up beam is made of steel as shown in Figure 1. Knowing that modulus of elasticity for the steel is E = 200 GPa 150 mm 20 mm 150 mm 150 mm 10 mm M '10 mm 300 mm А Figure 1 (1) If the allowable tensile and compressive stress for the beam are allow tension = 140 MPa and o = 210 MPa. allow compression respectively, determine the maximum allowable internal moment M that can be applied Determine...
24 M9.4 Shear stress in a standard steel shape scenes 246 For the wide flange beam subjected to the indicated shear force V, determine the transverse shear stress acting at locations H and K. 712 84 664 216 V=930 KN TH (MPa) dimensions: mm TK (MPa) 24 Try one 1st 2nd 3rd attempt enter
Review Part A A wood beam is reinforced with steel straps at its top and bottorm as shown in the figure below (Figure 1). Determine the maximum bending stress developed in the steel if the beam is subjected to a moment of M = 110 kN-m Take E = 10 GPa 200 GPa Express your answer to three significant figures and include appropriate units. Units Submit Request Answer Part B Determine the maximum bending stress developed in the wood. Express...
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
