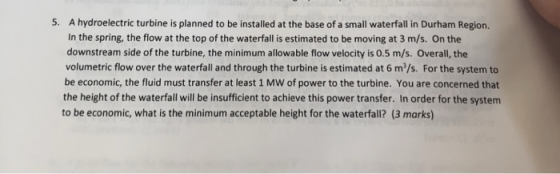

5. A hydroelectric turbine is planned to be installed at the base of a small waterfall in Durham Region. In the spring, the flow at the top of the waterfall is estimated to be moving at 3 m/s. On the downstream side of the turbine, the minimum allowable flow velocity is 0.5 m/s. Overall, the volumetric flow over the waterfall and through the turbine is estimated at 6 m3/s. For the system to be economic, the fluid must transfer at least 1 MW of power to the turbine. You are concerned that the height of the waterfall will be insufficient to achieve this power transfer. In order for the system to be economic, what is the minimum acceptable height for the waterfall? (3 marks)
engineering   Chemical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Date SoluHon At Point o At Poi Volumchic.huo rare C : 6㎡/seo 9 810 X6 Sufticient height (h)-? .minimvm a cceptable 14.43S m As fer Bernowbis principle/ height wnHu fall 음twt.th :Lty, the R92J 20 2 2. tooo @g一一3°) t △hx1000 xs 81

0 0
Add a comment
Know the answer?
Add Answer to:
5. A hydroelectric turbine is planned to be installed at the base of a small waterfall...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A hydroelectric power plant has a turbine whose speed must be fixed at 240 rpm. The...

    A hydroelectric power plant has a turbine whose speed must be fixed at 240 rpm. The turbine is impulse type with 12 m diameter. When the flow rate at the nozzle of the penstock is 10 m3/s, the generated electricity is 60 MW. Compute the velocity of the water jet (i.e., Find Vi).

  • You are designing a hydroelectric plant. The turbine has an efficiency of 88% and the generator...

    You are designing a hydroelectric plant. The turbine has an efficiency of 88% and the generator has an efficiency of 92%. You design the water flow rate to be 110 m3/s. The water elevation drop is 120 m. Disregarding frictional loss in the piping, what do you expect the electric power output to be in MW?

  • 3. In a small hydroelectric power station, the turbine uses the energy of the water in...

    3. In a small hydroelectric power station, the turbine uses the energy of the water in the reservoir behind the dam to produce 12000 horsepower. The circular channels before and after the turbine have a diameter of 90 inches. If the head loss across the dam can be calculated from hloss=cV²/2g where c=8 and V is the water velocity in the circular channel, calculate the volumetric flow rate, Q, through the system and the corresponding head loss for h=400 ft...

  • ENGR 320 Exam2 Name 1: (15+5 pts) A hydroelectric power plant takes in 25 m's of water through it...

    ENGR 320 Exam2 Name 1: (15+5 pts) A hydroelectric power plant takes in 25 m's of water through its turbine and discharges it to the atmosphere at V2-I m/s. The head loss in the turbine and penstock system is 10 m. Assuming turbulent flow, a -1.12, (a) What it the power in MW extracted by the turbine? () If the efficiency of the turbine and electrical generator is 85% what is the net power (in MW) generated by this plant?...

  • A micro hydro turbine is used to generate hydroelectric power by letting liquid water from a...

    A micro hydro turbine is used to generate hydroelectric power by letting liquid water from a high elevation run through the turbine to a low elevation. The turbine is under a steady state operation condition. The inlet water and outlet water are at elevations of 10 m and 2 m, respectively. The inlet and outlet diameters are 0.3 m and 0.5 m, respectively. The inlet pressure is 2.5 bar and the outlet pressure 1 bar. The inlet and outlet temperatures...

  • 3. For the following system determine the power that can be extracted by the turbine for...

    3. For the following system determine the power that can be extracted by the turbine for a volumetric flow rate of 0.007 [m3/s. Include appropriate minor losses (elbows & entrance). - Cast iron, L88, d 7 [c 45 [m H20 Turbine

  • A turboprop engine consists of a diffuser, compressor, combustor, turbine, and nozzle. The turbine drives a...

    A turboprop engine consists of a diffuser, compressor, combustor, turbine, and nozzle. The turbine drives a propeller as well as the compressor. Air enters the diffuser with a volumetric flow rate of 63.7 m3/s at 40 kPa, 240 K, and a velocity of 180 m/s, and decelerates essentially to zero velocity. The compressor pressure ratio is 9 and the compressor has an isentropic efficiency of 85%. The turbine inlet temperature is 1240 K, and its isentropic efficiency is 85%. The...

  • A power generation system with a turbine and a generator is located at a dam, where...

    A power generation system with a turbine and a generator is located at a dam, where the water falls from 106.074 m height to the turbine. Assuming turbines having 100% efficiency, what should be the flow rate of water (in kg/s) to produce 7.486 MW of power? (Take gravitational acceleration as 9.81 m/s2.

  • A power generation system with a turbine and a generator is located at a dam, where...

    A power generation system with a turbine and a generator is located at a dam, where the water falls from 119.002 m height to the turbine. Assuming turbines having 100% efficiency, what should be the flow rate of water (in kg/s) to produce 7.608 MW of power? (Take gravitational acceleration as 9.81 m/s2

  • there is table provided for help for the type of turbine TIPO Min Max 1 Jacto...

    there is table provided for help for the type of turbine TIPO Min Max 1 Jacto PELTON 0.16 2 ou mais Jactos 0.30 0,10 FRANCIS Lenta 0,26 0,50 Normal 0,50 1,00 TURBINAS Rápida 1,00 2,50 5,50 KAPLAN HELICES 1,70 3,00 AXIAIS (de gás) 0.25 1,80 Centrífugas 120 0,15 ВОMBAS Mistas 1,20 2,50 Hélices 7,00 Radiais VENTILADORES 0.40 2,00 Ахiais 1,50 3. At a hydroelectric plant under design, a 40 m drop is available to drive three turbine-generator groups, for a...
