Please refer the following memory system : Main memory : 64 MB Cache memory: 64 KB...

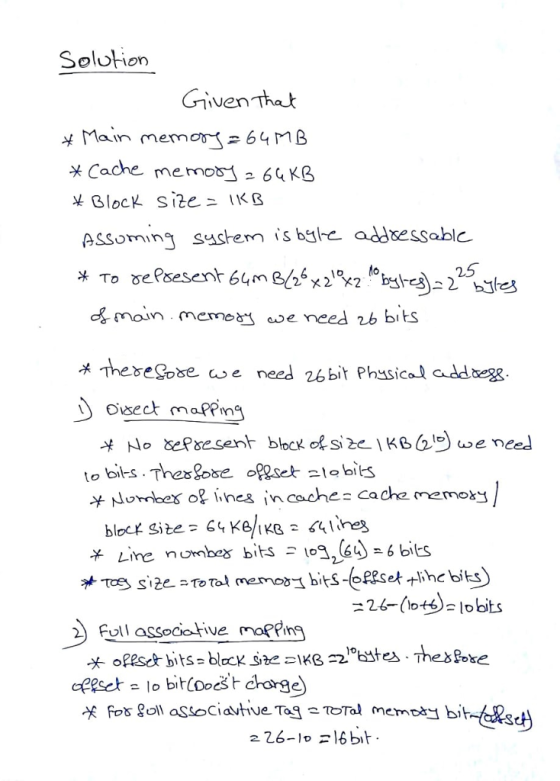

Please refer the following memory system :
Main memory : 64 MB
Cache memory: 64 KB
Block size of 1 KB
1. Direct Mapping
Offset bits?
Number of lines in cache?
Line number bits?
Tag size?
2. Fully Associative Mapping
Offset bits?
Tag size?

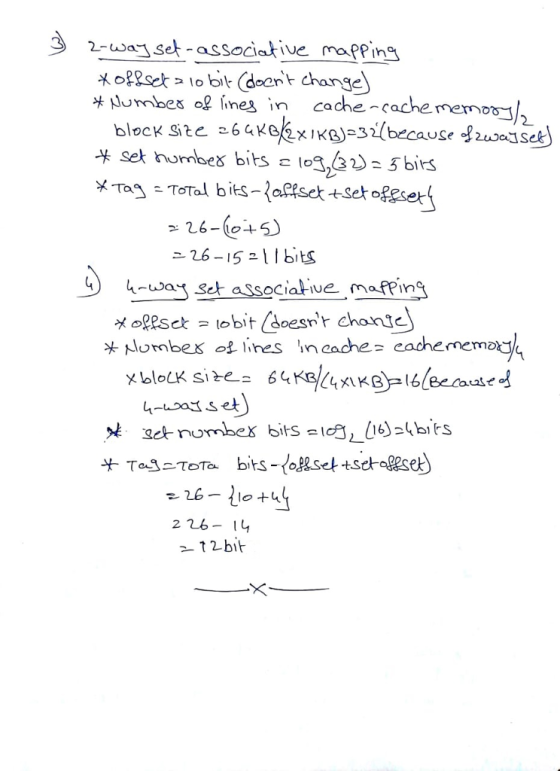

3. 2-way set-associative mapping
Offset bits?
Number of lines in cache?
Set number bits?
Tag size?
4. 4-way set-associative mapping
Offset bits?
Number of lines in cache?
Set number bits?
Tag size?
Homework Answers
