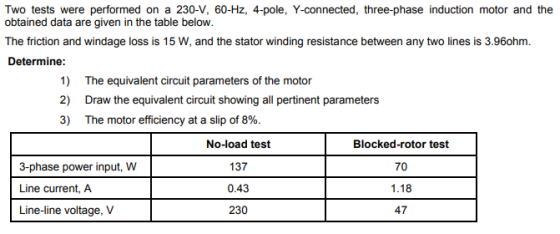

Two tests were performed on a 230-V, 60-Hz, 4-pole, Y-connected, three-phase induction motor and the obtained data are given in the table below. The friction and windage loss is 15 W, and the stator winding resistance between any two lines is 3.96ohm Determine: 1) The equivalent circuit parameters of the motor 3) The motor efficiency at a slip of 8%. No-load test 137 0.43 230 Blocked-rotor test 70 1.18 47 3-phase power input, W Line-line voltage, V

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

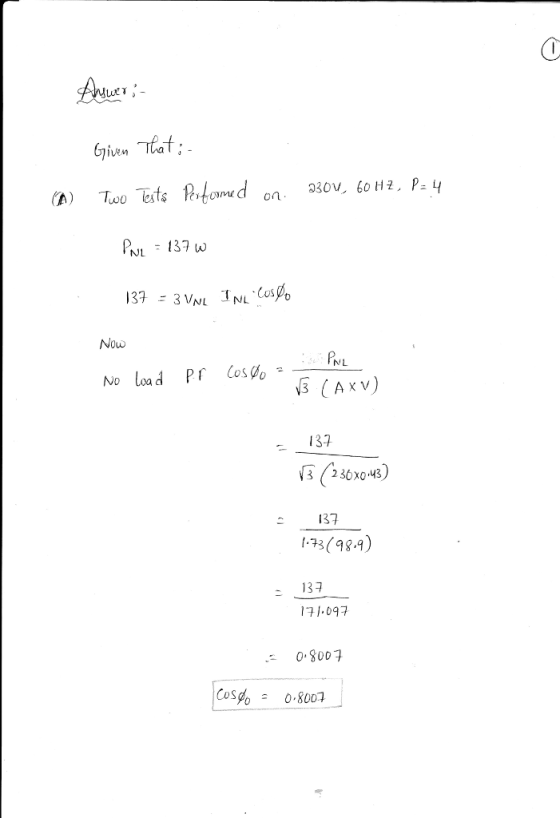

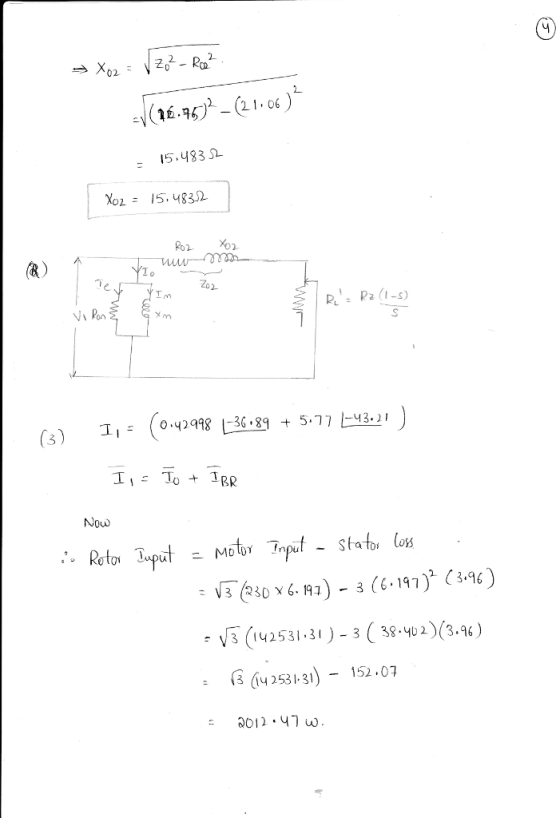

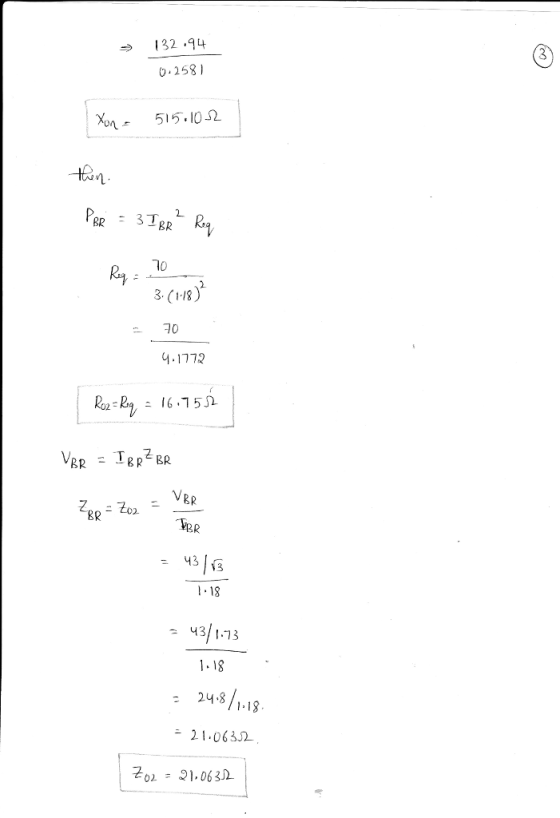

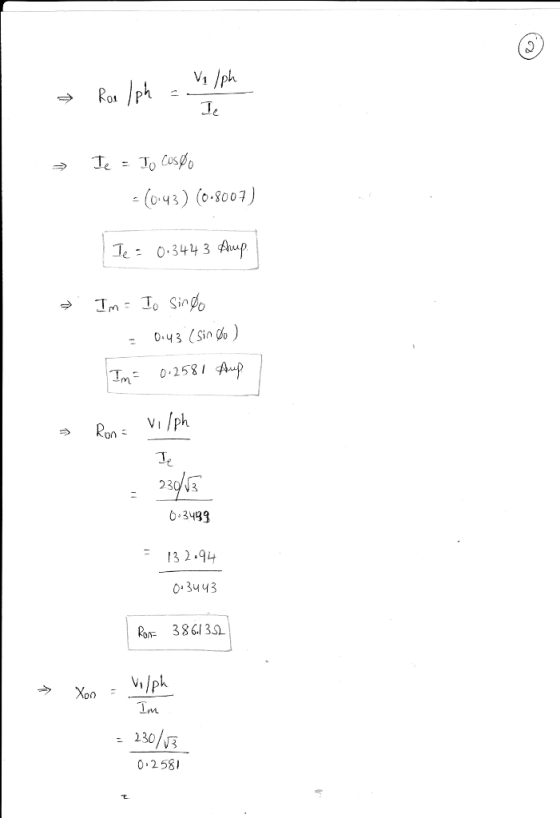

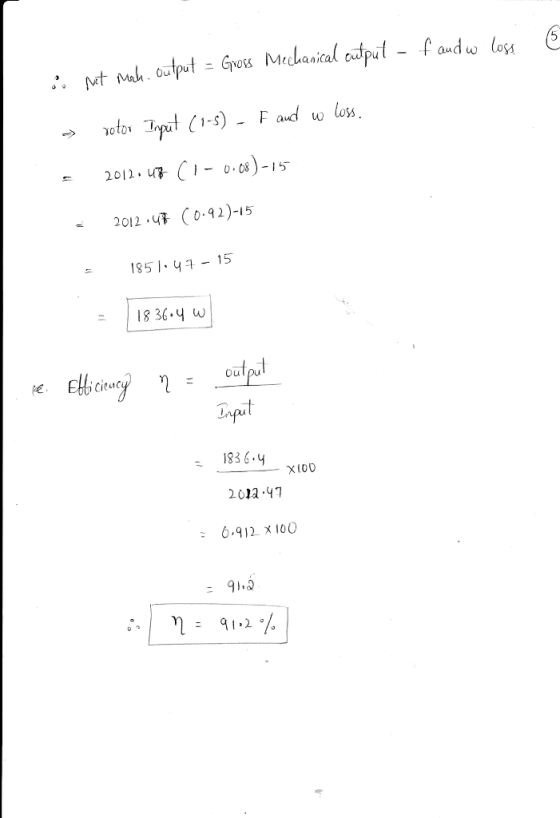

A) Two ests Rotoned NL Now 137 236x03) 137 3(98.4) : 137 171.09구 - 0 8007

0 0
