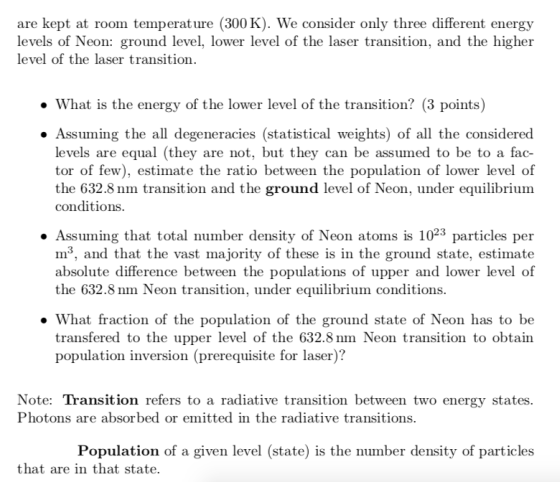

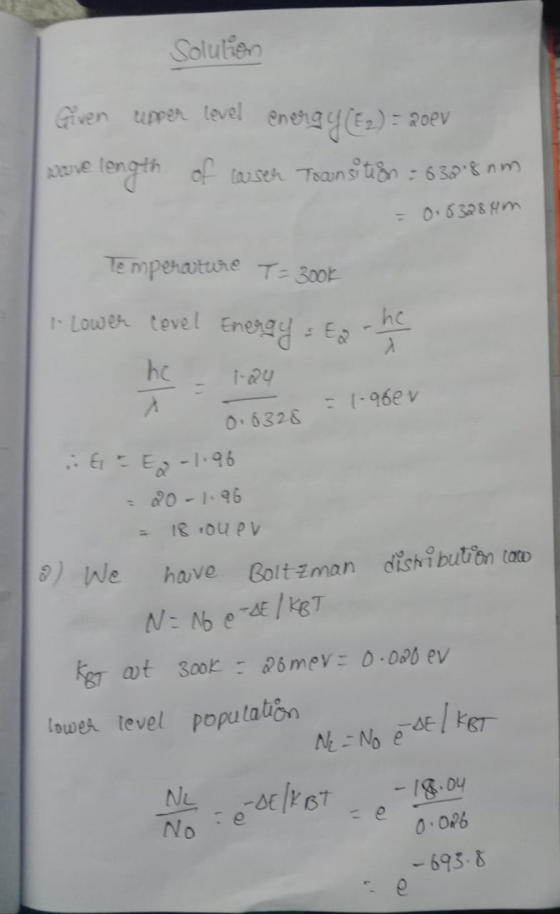

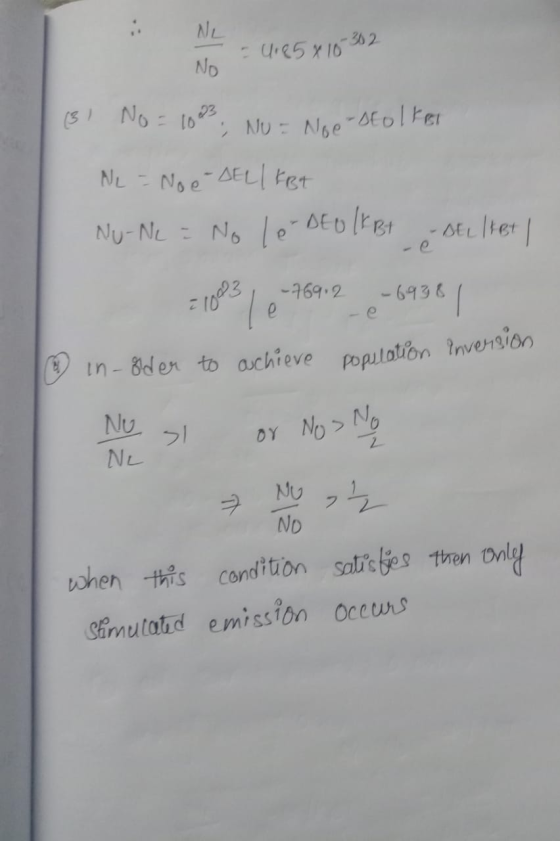

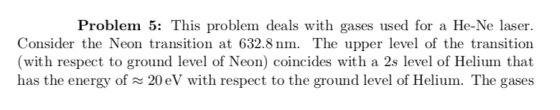

Problem 5: This problem deals with gases used for a He-Ne laser. Consider the Neon transition...
4.8 He-Ne Laser The He-Ne laser system energy levels can be quite complicated, as shown in Figure...
4.8 He-Ne Laser The He-Ne laser system energy levels can be quite complicated, as shown in Figure 4.58. There are a number of lasing emissions in the laser output in the red (632.8 nm), green (543.5 nm), orange (612 nm), yellow (594.1 nm), and in the infrared regions at 1.52 μm and 3.39 μm, which give the He-Ne laser its versatility. The pumping mechanism for all these lasers operations is the same, energy transfer from excited He atoms to Ne...
1. Rate Equations in a Four-Level Laser (10+ 10+10 Points). Consider a four-level laser with an...
1. Rate Equations in a Four-Level Laser (10+ 10+10 Points). Consider a four-level laser with an active volume V13. The population densities of the upper and lower laser levels are N2 and N and N- N2 N. The pumping rate is such that the steady-state population difference N in the absence of the stimulated emission and absorption is No. The photon-number density is n and the photon lifetime is tp (a) Write the rate equations for N2. N.N. and n...
Problem 4) Consider the following laser system. It consists of a conventional 4-level system (the...
need help
Problem 4) Consider the following laser system. It consists of a conventional 4-level system (the laser action occurs between E2 and E1 as usual with spontaneous transition time τ, between these states, and atoms in state Ei have spontaneous decay time t, back to the ground state, Eo) 32 34 E4 4 0 To obtain population inversion, atoms are pumped from state Eo to state Es. However, while some of the atoms decay to state E2 with spontaneous...
Problem 4) Consider the following laser system. It consists of a conventional 4-level system (the...
Problem 4) Consider the following laser system. It consists of a conventional 4-level system (the laser action occurs between E2 and El as usual with spontaneous transition time τ2 between these states, and atoms in state El have spontaneous decay time τ| back to the ground state, Eo) 32 34 4 0 To obtain population inversion, atoms are pumped from state Eo to state E3. However, while some of the atoms decay to state E2 with spontaneous transition time 732...
Artificial rubies have an atomic system consisting of three main energy levels and can be used to...
Artificial rubies have an atomic system consisting of three main energy levels and can be used to produce short pulses of laser light. The energies of these levels are Eo, E1 and E2, in increasing order of energy (a) Write down an expression giving the relative population of the energy levels Eo and E1 at thermal equilibrium. b) Explain what is meant by the term population inversion. Described how this is achieved in a three-level laser system Photons of wavelength...
Please help out on any of these! Thank you!! Problem 10.38 Part A A neon sign...
Please help out on any of
these! Thank you!!
Problem 10.38 Part A A neon sign is made of glass tubing whose inside diameter is 2.5 cm and whose length is 5.5 m If the sign contains neon at a pressure of 1.77 torn at 31 °C, how many grams of neon are in the sign? (The volume of a cylinder is rh) Express your answer using two significant figures. In Asia on a , 7 Submit My Answers Give...
10. Write a one-page summary of the attached paper? INTRODUCTION Many problems can develop in activated...
10. Write a one-page summary of the attached paper? INTRODUCTION Many problems can develop in activated sludge operation that adversely affect effluent quality with origins in the engineering, hydraulic and microbiological components of the process. The real "heart" of the activated sludge system is the development and maintenance of a mixed microbial culture (activated sludge) that treats wastewater and which can be managed. One definition of a wastewater treatment plant operator is a "bug farmer", one who controls the aeration...
4.8 He-Ne Laser The He-Ne laser system energy levels can be quite complicated, as shown in Figure 4.58. There are a number of lasing emissions in the laser output in the red (632.8 nm), green (543.5 nm), orange (612 nm), yellow (594.1 nm), and in the infrared regions at 1.52 μm and 3.39 μm, which give the He-Ne laser its versatility. The pumping mechanism for all these lasers operations is the same, energy transfer from excited He atoms to Ne...
1. Rate Equations in a Four-Level Laser (10+ 10+10 Points). Consider a four-level laser with an active volume V13. The population densities of the upper and lower laser levels are N2 and N and N- N2 N. The pumping rate is such that the steady-state population difference N in the absence of the stimulated emission and absorption is No. The photon-number density is n and the photon lifetime is tp (a) Write the rate equations for N2. N.N. and n...
need help
Problem 4) Consider the following laser system. It consists of a conventional 4-level system (the laser action occurs between E2 and E1 as usual with spontaneous transition time τ, between these states, and atoms in state Ei have spontaneous decay time t, back to the ground state, Eo) 32 34 E4 4 0 To obtain population inversion, atoms are pumped from state Eo to state Es. However, while some of the atoms decay to state E2 with spontaneous...
Problem 4) Consider the following laser system. It consists of a conventional 4-level system (the laser action occurs between E2 and El as usual with spontaneous transition time τ2 between these states, and atoms in state El have spontaneous decay time τ| back to the ground state, Eo) 32 34 4 0 To obtain population inversion, atoms are pumped from state Eo to state E3. However, while some of the atoms decay to state E2 with spontaneous transition time 732...
Artificial rubies have an atomic system consisting of three main energy levels and can be used to produce short pulses of laser light. The energies of these levels are Eo, E1 and E2, in increasing order of energy (a) Write down an expression giving the relative population of the energy levels Eo and E1 at thermal equilibrium. b) Explain what is meant by the term population inversion. Described how this is achieved in a three-level laser system Photons of wavelength...
Please help out on any of
these! Thank you!!
Problem 10.38 Part A A neon sign is made of glass tubing whose inside diameter is 2.5 cm and whose length is 5.5 m If the sign contains neon at a pressure of 1.77 torn at 31 °C, how many grams of neon are in the sign? (The volume of a cylinder is rh) Express your answer using two significant figures. In Asia on a , 7 Submit My Answers Give...
