1. The cutting conditions in a turning operation are v=2m/s f=. 25 mm. and d 3.0...

1.
The cutting conditions in a turning operation are v=2m/s f=. 25 mm. and d 3.0 mm. The tool rake angle 10 degrees, which produces a deformed chip thickness t c = 0.54 mm. Determine (a) shear plane angle, (b) shear strain. and (c) material removal rate. Use the orthogonal cutting model as an approximation of the turning process.

3.
The cutting force and thrust force have been measured in an orthogonal cutting operation: Fc = 300 lb and Fc = 291 lb. The rake angle is 10 degrees, the width of the
cut =.20 in. the chip thickness before the cut = 0.015, and the chip thickness ratio =.04.Determine (a) the shear strength of the work material and (b) the coefficient of friction in the operation.

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

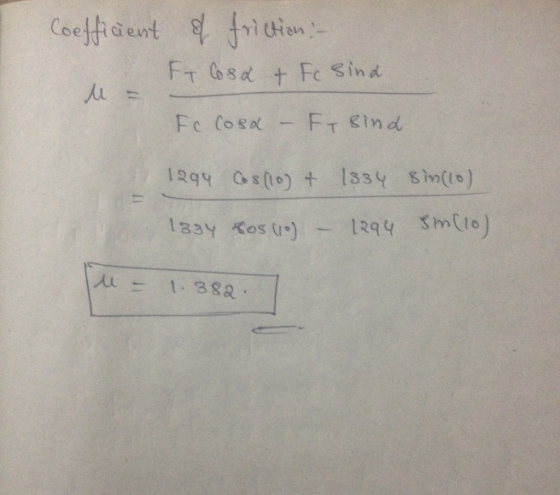

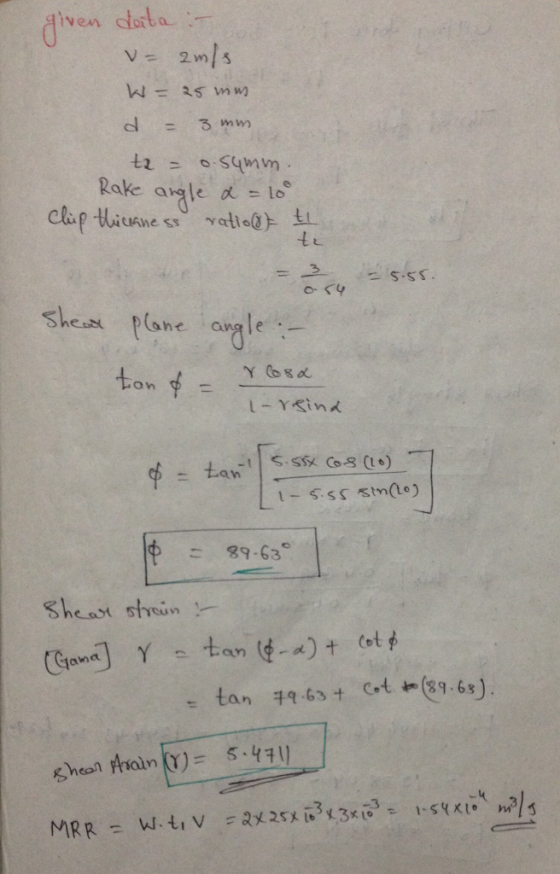

diven diab ven dtata. d = 3 mm t2ニ。.sqm m Rake ogled =le ぐ4 She Pane a こ 89-63。 an - dFe 1334 46 N FT1294 43 N : 22.944 Fs 13y4 46 Co (224y) 1294.43 si ka 12 38.6 (3.39 Fs 694.4 Non- Coefficient friui Sin d Ju 1334

0 0
Add a comment
Know the answer?
Add Answer to:
1. The cutting conditions in a turning operation are v=2m/s f=. 25 mm. and d 3.0...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • In a turning operation, cutting speed = 1.8 m/s, feed = 0.30 mm/rev, and depth of...

    In a turning operation, cutting speed = 1.8 m/s, feed = 0.30 mm/rev, and depth of cut = 2.6 mm. Rake angle = 8°. After the cut, the deformed chip thickness = 0.56 mm and before the cut, the chip thickness = 0.26 mm. Determine (a) shear plane angle, (b) shear strain, and (c) material removal rate. Use the orthogonal cutting model as an approximation of turning

  • In an orthogonal metal cutting test in a turning operation, the following conditions were recorded cutting...

    In an orthogonal metal cutting test in a turning operation, the following conditions were recorded cutting speed = 160 m/min, feed = 0.28 mm/rev, width of cut-2.4 mm, rake angle-70. After the cut, the deformed chip thickness 0.45 mm, cutting force-950 N and thrust 400 N. Determine (a) shear plane angle, (b) The friction angle, (c) The specific energy of workpiece material, (d) The shear stress on shear plane (e) The friction force (f) The shear strain during the deformation...

  • 21.7. An orthogonal cutting operation is performed using a rake angle of 15°, chip thickness before...

    21.7. An orthogonal cutting operation is performed using a rake angle of 15°, chip thickness before the cut =0.012 in and width of cut = 0.100 in. The chip thickness ratio is measured after the cut to be 0.55. Determine (a) the chip thickness after the cut, (b) shear angle, (c) friction angle, (d) coefficient of friction, and (e) shear strain. 21.8. The orthogonal cutting operation described in previous Problem 21.7 involves a work material whose shear strength is 40,000...

  • Chapter 15: 1. Shear plane angle and shear strain: In an orthogonal cutting operation, the tool...

    Chapter 15: 1. Shear plane angle and shear strain: In an orthogonal cutting operation, the tool has a rake angle = 16°. The chip thickness before the cut = 0.32 mm and the cut yields a deformed chip thickness = 0.72 mm. Calculate (a) the shear plane angle and (b) the shear strain for the operation. 2. Shear strength: The cutting force and thrust force have been measured in an orthogonal cutting operation to be 301 lb and 291 lb,...

  • Manufacturing of Engineering 21.1. In an orthogonal cutting operation, the tool has a rake angle=15°.The chip...

    Manufacturing of Engineering 21.1. In an orthogonal cutting operation, the tool has a rake angle=15°.The chip thickness before the cut          = 0.30 mm and the cut yields a deformed chip thickness = 0.65 mm. Calculate (a) the shear plane angle and (b) the shear strain for the operation. 21.2 In Problem 21.1, suppose the rake angle were changed to a α= 0°. Assuming that the friction angle remains the same, determine (a) the shear plane angle, (b) the chip thickness,...

  • Manufacturing Q10 - The shear strength of a certain work material 50,000 lb'in". An orthogonal cutting...

    Manufacturing Q10 - The shear strength of a certain work material 50,000 lb'in". An orthogonal cutting operation is perfommed using a tool with a rake angle = 20° at the following cutting conditions: cutting speed = 100 ft/min, chip thickness before the cut = 0.015 in, and width of cut = 0.150 in. The resulting chip thickness ratio = 0.50. Determine (a) the shear plane angle; (b) shear force; (c) cutting force and thrust force, and (d) friction force. wers:...

  • 1. A certain work material has shear strength of = 50,000 lb/in. An orthogonal cutting operation...

    1. A certain work material has shear strength of = 50,000 lb/in. An orthogonal cutting operation is performed using a tool with a rake angle = 20° at the following cutting conditions: cutting speed - 100 ft/min, chip thickness before the cut = 0.015 in, and width of cut = 0.150 in. The resulting chip thickness ratio = 0.50. Determine (a) The shear plane angle; (b) Shear force; (c) Cutting force and thrust force, and (d) Friction force. 2.1 The...

  • During the turning operation, the cutting speed = 2.95 m/s, the feed f = 0.40 mm/rev,...

    During the turning operation, the cutting speed = 2.95 m/s, the feed f = 0.40 mm/rev, the depth of cut, d = 1.83 mm, the rake angle α = 5° and the deformed chip thickness= 0.58 mm. The workpiece material has volumetric specific heat = 2.96 x10-3 J/mm3- °C, thermal diffusivity = 0.783 cm2/s and specific energy = 1.036 J/mm3, obtained at feed equal to 0.25 mm/rev. The correction factor for the specific energy is CF = 0.75 to-0.21, when...

  • Kindly provide with clear step by step solution An orthogonal cutting operation is being carried out...

    Kindly provide with clear step by step solution An orthogonal cutting operation is being carried out under the following conditions: depth of cut-0.10 mm, width of cut 5 mm, chip thickness-0.2 mm, cutting speed = 2 m/s, rake angle = 15°, cutting force-500 N, and thrust force-200 N. Calculate the percentage of the total energy that is dissipated in the shear plane during cutting.

  • M allu lile uut ylelus a eru um tillkless - U.U ml. Calcule alle sue al...

    M allu lile uut ylelus a eru um tillkless - U.U ml. Calcule alle sue al palle angle and (b) the shear strain for the operation. In an orthogonal cutting operation, the tool has a rake angle = -5°. The chip thickness before the cut = 0.012 in. and the cut yields a deformed chip thickness = 0.028 in. Calculate (a) the shear plane angle and (b) the shear strain for the operation.
