Homework Answers

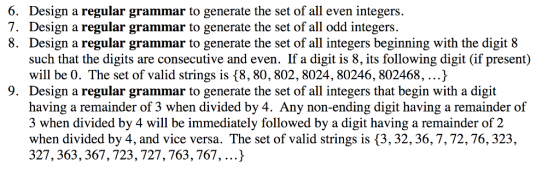

REGULAR GRAMMAR FOR SET OF ALL EVEN NUMBERS
Last digit of the number will be even, which is taken care by the
production S`.
S-> 0S | 1S | 2S | 3S | 4S | 5S | 6S | 7S | 8S | 9S |
S`
S`-> 0 | 2 | 4 | 6 | 8
REGULAR GRAMMAR FOR SET OF ALL ODD NUMBERS
Last digit of the number will be ODD, which is taken care by the
production S`.
S-> 0S | 1S | 2S | 3S | 4S | 5S | 6S | 7S | 8S | 9S |
S`
S`-> 1 | 3 | 5 | 7 | 9
REGULAR GRAMMAR TO GENERATE THE SET OF ALL INTEGERS
BEGINING WITH 8
HERE THIS PRODUCTION BEGINS THE NUMBER WITH 8, AFTER 8 WE WILL HAVE
0, AND 2 AND 4 CONSECUTIVELY, WHICH IS TAKEN CARE BY EACH
PRODUCTION.
S-> 8A | 8
A-> 0B | 0
B-> 2C | 2
C-> 4D | 4
D-> 6E | 6
E-> S
QUESTION 9:-
The first digit can either be 3 or 7, second digit can either be 2 or 6, and so on...
S-> 3A | 7A | 3 | 7
A-> 2S | 6S | 2 | 6
If there is anything that you don not understand, then please mention it in the comments section.
