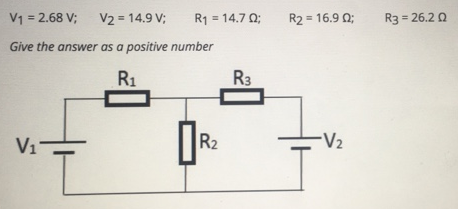

For the circuit below, what is the magnitude of the current through the resistor R3, in units of amperes?
For the circuit below, what is the magnitude of the current through the resistor R3, in units of amperes?

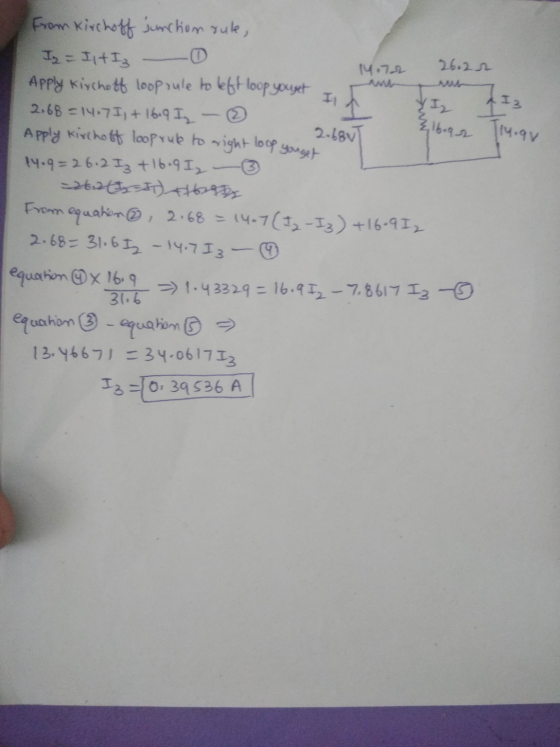

Homework Answers
Add Answer to:
For the circuit below, what is the magnitude of the current through the resistor R3, in units of amperes?
Circuit Part A Determine the magnitude of the current through resistor R3, shown in the figure...
Circuit Part A Determine the magnitude of the current through resistor R3, shown in the figure below. The batteries have emfs of -9.00 V and E2-12.00 V and the resistors have values of R1 16.4 Ω , R,-21.7 Ω, and R3 329 Ω Ri 61 Submit Answer Tries 0/6 Part B Determine the magnitude of the current through resistor R1 Submit Answer Tries 0/6 Part C Determine the magnitude of the current through resistor R2. Submit Answer Tries 0/6
For the circuit below, determine the MAGNITUDE of the CURRENT passing through each resistor. V1 =...
For the circuit below, determine the MAGNITUDE of the
CURRENT passing through each resistor. V1 = 7 V,
V2 = 12 V, V3 = 4 V, R1 = 19 Ω,
R2 = 3 Ω, R3 = 6 Ω.
For the circuit below, determine the MAGNITUDE of the CURRENT passing through each resistor. V1-7 V, V2 = 12 V, V3 = 4 V, R1 = 19 Ω, R2-3 Ω, R3 = 6 Ω. R1 V I3-
A.)Determine the magnitude of the current through resistor R3,shown in the figure below. The batteries...
A.)Determine the magnitude of the current through resistor R3,
shown in the figure below. The batteries have emfs of E1 = 6.00 V
and E2 = 9.00 V and the resistors have values of R1 = 15.8 ohm, R2
= 20.0 ohm, and R3 = 32.9 ohmB.) Determine the magnitude of the current through resistor
R1.C) Determine the magnitude of the current through resistor
R2.
For the circuit below, determine the MAGNITUDE of the CURRENT passing through each resistor. V1 =...
For the circuit below, determine the MAGNITUDE of the
CURRENT passing through each resistor. V1 = 10 V,
V2 = 13 V, V3 = 14 V, R1 = 2 Ω,
R2 = 19 Ω, R3 = 9 Ω.
Please show all work.
10. -10 points DC Circuits: Circuit Analysis My Notes Ask Your For the circuit below, determine the MAGNITUDE of the CURRENT passing through each resistor. V1 = 10 V, V2 13 V, V3 = 14 V, R1 =...
1. a. What is the resistance of the circuit? (Ω/OHM) b. What is the magnitude of the potential across resistor R3? (V) c. What is the magnitude of the current in resistor R3? (A) d. What is the mag...
1.
a. What is the resistance of the circuit? (Ω/OHM)
b. What is the magnitude of the potential across resistor
R3? (V)
c. What is the magnitude of the current in resistor R3?
(A)
d. What is the magnitude of the potential across resistor
R1? (V)
e. What is the magnitude of the potential across resistor
R2? (V)
f. What is the magnitude of the current through resistor
R1? (A)
g. What is the magnitude of the current through resistor...
Circuits For the circuit below, determine the MAGNITUDE of the CURRENT passing through each resistor. V1...
Circuits
For the circuit below, determine the MAGNITUDE of the CURRENT passing through each resistor. V1 = 6 V, V2 = 18 V, V3 = 3 V, R1 = 1 ?, R2 = 16 ?, R3 = 10 ?. R1 V 11 = 3A I21.5A 13 = 1.5A ½Az V3 R3
Find the magnitude and direction of the current through resistor R in the circuit shown if...
Find the magnitude and direction of the current through resistor
R in the circuit shown if R=57 ΩΩ and V=13 V.
What is the direction of the current through resistor R?
Find the magnitude and direction of the current through resistor R in the circuit shown if R=57 Ω and V-13 V 85 Ω 15 V 151 Ω Answer: Choose... What is the direction of the current through resistor R? Select one: O down O up O can't tell
QUESTION 8 For the circuit shown below, what is the current through the 200 Q resistor,...
QUESTION 8 For the circuit shown below, what is the current through the 200 Q resistor, in units of amperes? give the answer as a positive value 2 points Save Answer 尺 50Ω 1002 10v 40V R's 2000 2 points QUESTION 9 A student has to calculate the currents in the circuit shown in the diagram. After he chooses the current the following is a correct equation for this loop? ts in the circuit shown in the diagram. After he...
2) What is 1(), the magnitude of the current through the resistor R after the switch...
2) What is 1(), the magnitude of the current through the resistor R after the switch has been closed for a very long time? A Submit 3) What is l_(-), the magnitude of the current through the inductor after the switch has been closed for a very long time? A Submit 4) After the switch has been closed for a very long time, it is then opened. What is Iz(topen), the current through the resistor R3 at a time topen...
Find the magnitude and direction of the current through resistor R in the circuit shown if...
Find the magnitude and direction of the current through resistor R in the circuit shown if R 74 Ω and V 15 V 85 Ω 15 V 151 Ω Answer Choose... What is the direction of the current through resistor R? Select one: down up can't tell
Circuit Part A Determine the magnitude of the current through resistor R3, shown in the figure below. The batteries have emfs of -9.00 V and E2-12.00 V and the resistors have values of R1 16.4 Ω , R,-21.7 Ω, and R3 329 Ω Ri 61 Submit Answer Tries 0/6 Part B Determine the magnitude of the current through resistor R1 Submit Answer Tries 0/6 Part C Determine the magnitude of the current through resistor R2. Submit Answer Tries 0/6
For the circuit below, determine the MAGNITUDE of the
CURRENT passing through each resistor. V1 = 7 V,
V2 = 12 V, V3 = 4 V, R1 = 19 Ω,
R2 = 3 Ω, R3 = 6 Ω.
For the circuit below, determine the MAGNITUDE of the CURRENT passing through each resistor. V1-7 V, V2 = 12 V, V3 = 4 V, R1 = 19 Ω, R2-3 Ω, R3 = 6 Ω. R1 V I3-
A.)Determine the magnitude of the current through resistor R3,
shown in the figure below. The batteries have emfs of E1 = 6.00 V
and E2 = 9.00 V and the resistors have values of R1 = 15.8 ohm, R2
= 20.0 ohm, and R3 = 32.9 ohmB.) Determine the magnitude of the current through resistor
R1.C) Determine the magnitude of the current through resistor
R2.
For the circuit below, determine the MAGNITUDE of the
CURRENT passing through each resistor. V1 = 10 V,
V2 = 13 V, V3 = 14 V, R1 = 2 Ω,
R2 = 19 Ω, R3 = 9 Ω.
Please show all work.
10. -10 points DC Circuits: Circuit Analysis My Notes Ask Your For the circuit below, determine the MAGNITUDE of the CURRENT passing through each resistor. V1 = 10 V, V2 13 V, V3 = 14 V, R1 =...
1.
a. What is the resistance of the circuit? (Ω/OHM)
b. What is the magnitude of the potential across resistor
R3? (V)
c. What is the magnitude of the current in resistor R3?
(A)
d. What is the magnitude of the potential across resistor
R1? (V)
e. What is the magnitude of the potential across resistor
R2? (V)
f. What is the magnitude of the current through resistor
R1? (A)
g. What is the magnitude of the current through resistor...
Circuits
For the circuit below, determine the MAGNITUDE of the CURRENT passing through each resistor. V1 = 6 V, V2 = 18 V, V3 = 3 V, R1 = 1 ?, R2 = 16 ?, R3 = 10 ?. R1 V 11 = 3A I21.5A 13 = 1.5A ½Az V3 R3
Find the magnitude and direction of the current through resistor
R in the circuit shown if R=57 ΩΩ and V=13 V.
What is the direction of the current through resistor R?
Find the magnitude and direction of the current through resistor R in the circuit shown if R=57 Ω and V-13 V 85 Ω 15 V 151 Ω Answer: Choose... What is the direction of the current through resistor R? Select one: O down O up O can't tell
QUESTION 8 For the circuit shown below, what is the current through the 200 Q resistor, in units of amperes? give the answer as a positive value 2 points Save Answer 尺 50Ω 1002 10v 40V R's 2000 2 points QUESTION 9 A student has to calculate the currents in the circuit shown in the diagram. After he chooses the current the following is a correct equation for this loop? ts in the circuit shown in the diagram. After he...
2) What is 1(), the magnitude of the current through the resistor R after the switch has been closed for a very long time? A Submit 3) What is l_(-), the magnitude of the current through the inductor after the switch has been closed for a very long time? A Submit 4) After the switch has been closed for a very long time, it is then opened. What is Iz(topen), the current through the resistor R3 at a time topen...
Find the magnitude and direction of the current through resistor R in the circuit shown if R 74 Ω and V 15 V 85 Ω 15 V 151 Ω Answer Choose... What is the direction of the current through resistor R? Select one: down up can't tell
