1.

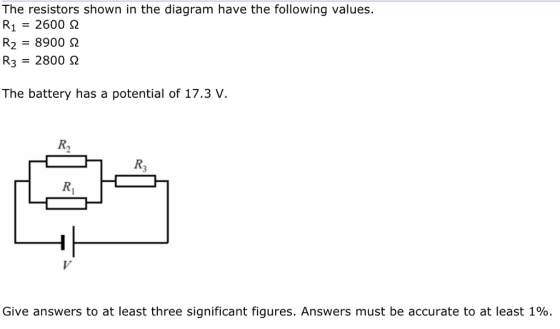

a. What is the resistance of the circuit? (Ω/OHM)
b. What is the magnitude of the potential across resistor
R3? (V)
c. What is the magnitude of the current in resistor R3?
(A)
d. What is the magnitude of the potential across resistor
R1? (V)
e. What is the magnitude of the potential across resistor
R2? (V)
f. What is the magnitude of the current through resistor
R1? (A)
g. What is the magnitude of the current through resistor R2? (A)

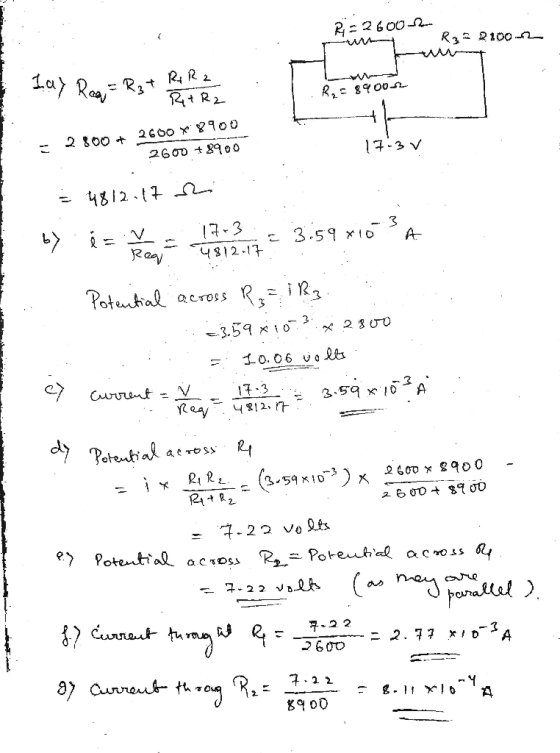

Homework Answers
