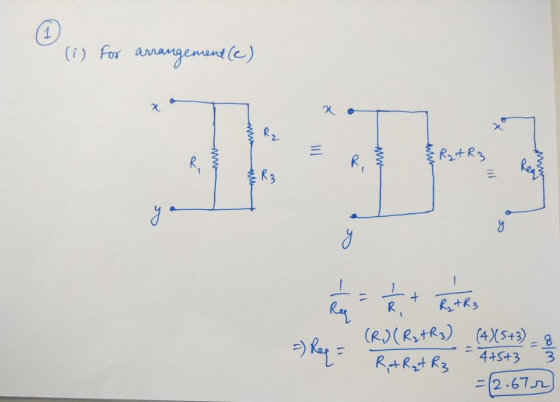

R2 R1 R3 Equivalent Resistance and current (10 pts) 1. R1 = 4 Ω R2-50 R3...
Question 3. (10 points) Four resistors are connected as shown in Figure 28.9a Find the equivalent resistance between a and c. R1-16 and R4-12 Ω R2-13 R3-4 (a) (b) What is the current in each resistor...
Question 3. (10 points) Four resistors are connected as shown in Figure 28.9a Find the equivalent resistance between a and c. R1-16 and R4-12 Ω R2-13 R3-4 (a) (b) What is the current in each resistor if a potential difference of 0.64 V is maintained between a and c. Calculate the current in each resistor I (for Ri resistor)- I (for R2 resistor)- I (for R3 resistor) I (for R4 resistor)- Which resistor uses more power, R or R4? Which...
Three resistors, R1 2.0 Ω, R2:4.0 Ω, and R3:6.0 Ω are connected as shown in the...
Three resistors, R1 2.0 Ω, R2:4.0 Ω, and R3:6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; .e. [Req1] in Ohms. (b) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals: L.e. [Itot1] in A (c) Find the voltage across and the current through each resistor; L.e R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
Question 2. (15 points) Four resistors are connected as shown in Figure 28.9a (a) Find the equivalent resistance between a and c. R1-16 Ω, R2-139, R3-49, and R4-12 Ω Rs (b) What is the current in eac...
Question 2. (15 points) Four resistors are connected as shown in Figure 28.9a (a) Find the equivalent resistance between a and c. R1-16 Ω, R2-139, R3-49, and R4-12 Ω Rs (b) What is the current in each resistor if a potential difference of 0.64 V is maintained between a and. Calculate the current in each resistor I (for Ri resistor)- I (for R resistor) I (for R, resistor)- I (for R resistor Which resistor uses more power, R or R,....
Consider the three resistors R1=11 Ω, R2=29 Ω, and R3=77 Ω in the configuration shown in the figure. A potential difference ΔV=3.5 V is applied between A and B
Consider the three resistors R1=11 Ω, R2=29 Ω, and R3=77 Ω in the configuration shown in the figure. A potential difference ΔV=3.5 V is applied between A and B Part (a) Express the equivalent resistance Re of the combination of R2 and R3 in terms of R2 and R3.Part (b) Express the total resistance R off the combination of all three resistors in terms of R1, R2 and R3Part (c) Calculate the numerical value ofthe total resistance R in Ω.Part (d)...
Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω)...
Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω) are connected in parallel to another resistor R1 (5 Ω). And the circuit is connected to a 20 V power supply 9. Find the equivalent resistance (R) of the circuit shown above. (3 pts) Answer 10. Find the current that goes through R1. (4 pts) Answer 11. Find the potential difference through resistors in parallel (R2 and R3). (4 pts) Answer
IP Three resistors, R1 = 15 Ω , R2 = 62 Ω , and R3=R, are...
IP Three resistors, R1 = 15 Ω , R2 = 62 Ω , and R3=R, are connected in series with a 24.0 V battery. The total current flowing through the battery is 0.15 A . Find the value of resistance R. Find the potential difference across each resistor.
Three resistors, R1-2.0 Ω, R2-4.0 Ω, and R3 6.0 Ω are connected as shown in the...
Three resistors, R1-2.0 Ω, R2-4.0 Ω, and R3 6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; t.e. Req1] in Ohms ) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals; L.e. [itot1) in Amps. (c) Find the voltage across and the current through each resistor; L.e. R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
Consider the circuit with R1 = 4 Ω, R2 = 10 Ω, R3 = 9 Ω,...
Consider the circuit with
R1 = 4 Ω, R2 = 10 Ω, R3 = 9 Ω,
R4 = 6 Ω, and R5 = 7 Ω as above with a
battery of 10 volt.
(a) Calculate the equivalent resistant of the entire
circuit.
(b) Calculate the total current in the circuit.
(c) Calculate the voltage drop across the R5
resistor.
(d) Calculate the current through the R5
resistor.
(e) Calculate the dissipated power across the R5
resistor.
1. a. What is the resistance of the circuit? (Ω/OHM) b. What is the magnitude of the potential across resistor R3? (V) c. What is the magnitude of the current in resistor R3? (A) d. What is the mag...
1.
a. What is the resistance of the circuit? (Ω/OHM)
b. What is the magnitude of the potential across resistor
R3? (V)
c. What is the magnitude of the current in resistor R3?
(A)
d. What is the magnitude of the potential across resistor
R1? (V)
e. What is the magnitude of the potential across resistor
R2? (V)
f. What is the magnitude of the current through resistor
R1? (A)
g. What is the magnitude of the current through resistor...
Vs=10,R1=Rs=8,R2=3,R3=4,R4=RL=2 Perform source transformation on Vs and R1. compute the equivalent current source and parallel resistance,...
Vs=10,R1=Rs=8,R2=3,R3=4,R4=RL=2
Perform source transformation on Vs and R1. compute the
equivalent current source and parallel resistance, as well as the
voltage across and current through RL
R3 R1 R4 iz R2 Vs ww
Question 3. (10 points) Four resistors are connected as shown in Figure 28.9a Find the equivalent resistance between a and c. R1-16 and R4-12 Ω R2-13 R3-4 (a) (b) What is the current in each resistor if a potential difference of 0.64 V is maintained between a and c. Calculate the current in each resistor I (for Ri resistor)- I (for R2 resistor)- I (for R3 resistor) I (for R4 resistor)- Which resistor uses more power, R or R4? Which...
Three resistors, R1 2.0 Ω, R2:4.0 Ω, and R3:6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; .e. [Req1] in Ohms. (b) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals: L.e. [Itot1] in A (c) Find the voltage across and the current through each resistor; L.e R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
Question 2. (15 points) Four resistors are connected as shown in Figure 28.9a (a) Find the equivalent resistance between a and c. R1-16 Ω, R2-139, R3-49, and R4-12 Ω Rs (b) What is the current in each resistor if a potential difference of 0.64 V is maintained between a and. Calculate the current in each resistor I (for Ri resistor)- I (for R resistor) I (for R, resistor)- I (for R resistor Which resistor uses more power, R or R,....
Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω) are connected in parallel to another resistor R1 (5 Ω). And the circuit is connected to a 20 V power supply 9. Find the equivalent resistance (R) of the circuit shown above. (3 pts) Answer 10. Find the current that goes through R1. (4 pts) Answer 11. Find the potential difference through resistors in parallel (R2 and R3). (4 pts) Answer
Three resistors, R1-2.0 Ω, R2-4.0 Ω, and R3 6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; t.e. Req1] in Ohms ) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals; L.e. [itot1) in Amps. (c) Find the voltage across and the current through each resistor; L.e. R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
Consider the circuit with
R1 = 4 Ω, R2 = 10 Ω, R3 = 9 Ω,
R4 = 6 Ω, and R5 = 7 Ω as above with a
battery of 10 volt.
(a) Calculate the equivalent resistant of the entire
circuit.
(b) Calculate the total current in the circuit.
(c) Calculate the voltage drop across the R5
resistor.
(d) Calculate the current through the R5
resistor.
(e) Calculate the dissipated power across the R5
resistor.
1.
a. What is the resistance of the circuit? (Ω/OHM)
b. What is the magnitude of the potential across resistor
R3? (V)
c. What is the magnitude of the current in resistor R3?
(A)
d. What is the magnitude of the potential across resistor
R1? (V)
e. What is the magnitude of the potential across resistor
R2? (V)
f. What is the magnitude of the current through resistor
R1? (A)
g. What is the magnitude of the current through resistor...
Vs=10,R1=Rs=8,R2=3,R3=4,R4=RL=2
Perform source transformation on Vs and R1. compute the
equivalent current source and parallel resistance, as well as the
voltage across and current through RL
R3 R1 R4 iz R2 Vs ww
