Review In the circuit shown in the diagram(Figure 1), suppose R1=R2 = 220 Ω and R3=R....

Question

Question

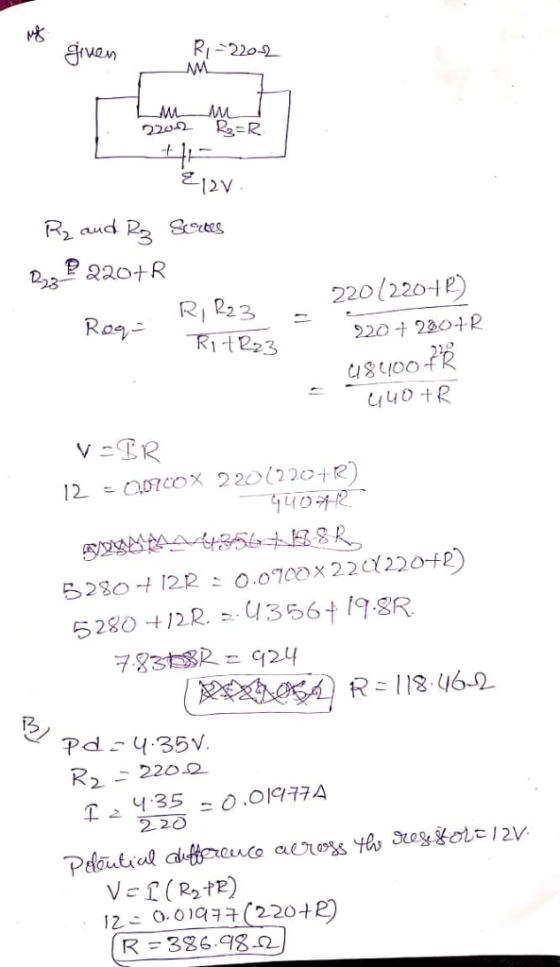

Review In the circuit shown in the diagram(Figure 1), suppose R1=R2 = 220 Ω and R3=R. The emf of the battery is 12.0 V .

(A)Find the value of R such that the current supplied by the battery is 0.0900 A .

(B)Find the value of R that gives a potential difference of 4.35 V across resistor 2.

science physics

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

In the circuit shown in the diagram(Figure 1), suppose R1=R2 = 240 Ω and R3=R. The...

In the circuit shown in the diagram(Figure 1), suppose R1=R2 = 240 Ω and R3=R. The emf of the battery is 12.0 V . Find the value of R such that the current supplied by the battery is 0.0760 A . Find the value of R that gives a potential difference of 4.95 V across resistor 2.
Review Part A In the circuit shown in the diagram(Figure 1), suppose R1 R2 210 and...

Review Part A In the circuit shown in the diagram(Figure 1), suppose R1 R2 210 and Rs R The emf of the battery is 12.0 V Find the value of R such that the current supplied by the battery is 0.0730 A Submit Incorrect; Try Again; 4 attempts remaining Part B Find the value of R that gives a potential difference of 3.65 V across resistor 2 Submit Provide Feedback Next > Figure 1 of 1 R2
In the circuit in the figure below, the batteries have negligible internal resistance. (Take R1 =...

In the circuit in the figure below, the batteries have negligible internal resistance. (Take R1 = 2.15 Ω, R2 = 4.35 Ω, and R3= 7.00 Ω.) (a) Find the magnitude of the current in each resistor. I2.15Ω = A I4.35Ω = A I7.00Ω = A (b) Find the magnitude of the potential difference between points a and b. V (c) Find the power supplied by each battery. left battery W right battery W 12.0 V R3 12.0 V

IP Three resistors, R1 = 15 Ω , R2 = 62 Ω , and R3=R, are...

IP Three resistors, R1 = 15 Ω , R2 = 62 Ω , and R3=R, are connected in series with a 24.0 V battery. The total current flowing through the battery is 0.15 A . Find the value of resistance R. Find the potential difference across each resistor.
Find the potential difference across each resistor in the figure below. (R1 = 5.30 Ω, R2...

Find the potential difference across each resistor in the figure below. (R1 = 5.30 Ω, R2 = 4.40 Ω, R3 = 2.60 Ω, R4 = 1.80 Ω) 12. -6.66 points SerPSE9 28.P.035.MI.FB My Notes Ask Your Teacher Find the potential difference across each resistor in the figure below. (R1 = 5.30 Ω, R2 = 4.40 Ω, R3 2.60 Ω, R-1.80 Ω) 12.0 V 3.00 V18.0 V R, R3 Need Help? LMastern
Consider the circuit shown in the figure with resistors R1= 4.0 Ω, R2= 3.0 Ω, R3=...

Consider the circuit shown in the figure with resistors R1= 4.0 Ω, R2= 3.0 Ω, R3= 3.0 Ω, and batteries V1= 2.0 V, V2=1.5 V respectively. What is the potential drop (voltage) across resistor R3?

In the circuit shown in (Figure 1), R1=3 Ω , R2=5 Ω , R3=4 Ω ,...

In the circuit shown in (Figure 1), R1=3 Ω , R2=5 Ω , R3=4 Ω , R4=9 Ω , and R5=9 Ω . Part A: What is the current flowing through resistor R1 (A)? Part B: What is the current flowing through resistor R2 (A)? Part C: What is the current flowing through resistor R3 (A)? Part D: What is the total power supplied by the battery (W)? ㄱ
Find the potential difference across each resistor in the figure below. (R1 = 5.40 Ω, R2...

Find the potential difference across each resistor in the figure below. (R1 = 5.40 Ω, R2 = 4.40 Ω, R3 = 3.20 Ω, R4 = 1.80 Ω) ΔVR1 = Incorrect: Your answer is incorrect. V ΔVR2 = V ΔVR3 = V ΔVR4 = V A circuit consists of two adjacent rectangular loops, one to the left of the other. All three vertical sides have a battery for which the positive terminal is above the negative terminal, as well as a...
Suppose the three resistors in the circuit have the values R1 = 160 Ω , R2...

Suppose the three resistors in the circuit have the values R1 = 160 Ω , R2 = 260 Ω , and R3 = 410 Ω , and that the emf of the battery is 18.0 V. Find the current that flows through each resistor.

For the circuit shown below, R1=15 Ω, R2=20 Ω, R3=30 Ω, and Vbattery=18 V. Which of...

For the circuit shown below, R1=15 Ω, R2=20 Ω, R3=30 Ω, and Vbattery=18 V. Which of the following expressions correctly gives the equivalent resistance of the circuit? What is the voltage across each resistor? R Vbattery R2 R₂
