Suppose the three resistors in the circuit have the values R1 = 160 Ω , R2...

Suppose the three resistors in the circuit have the values R1 = 160 Ω , R2 = 260 Ω , and R3 = 410 Ω , and that the emf of the battery is 18.0 V. Find the current that flows through each resistor.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

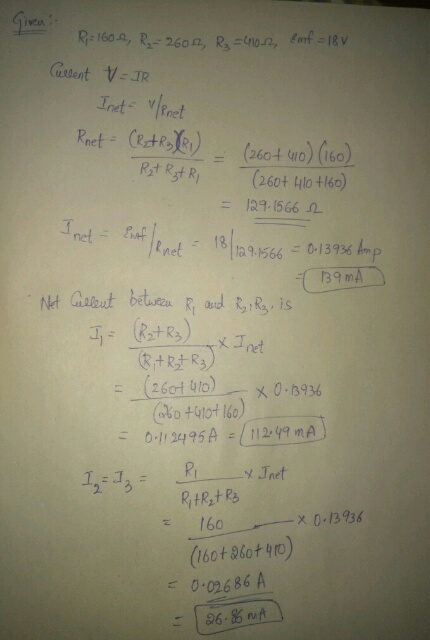

isdent -TR Inet net 260+ u0) (160 129-1566 2 net a9560133 139 mA Gtbes An tytot 160)-- OX 0.13936 0.02686 A
