Three resistors, R1 = 24 Ω , R2 = 69 Ω , and R3=R, are connected in parallel with a 12 V battery.

Part A: The total current flowing through the battery is 0.88 A . Find the value of resistance R.

Part B: Find the current through each resistor.

Part C: If the total current in the battery had been greater than 0.88 A , would your answer to part A have been larger or smaller?

science physics

Answer 1

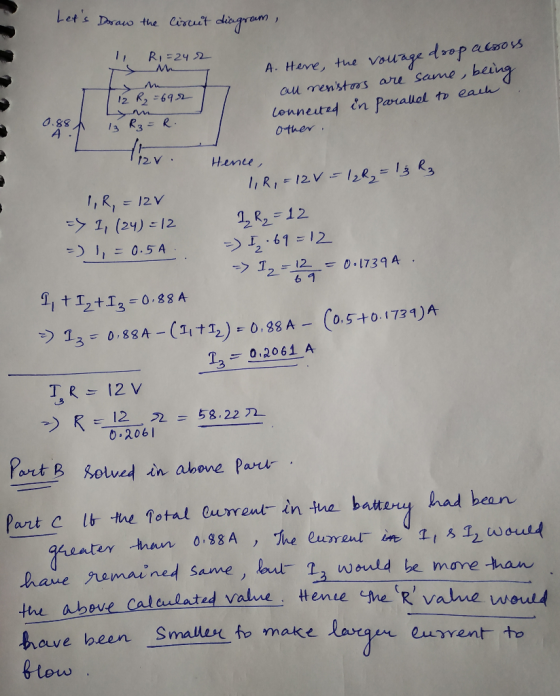

Answer #1

Answer 2
