Find the potential difference
across each resistor in the figure below. (R1 =
5.30 Ω, R2 = 4.40 Ω, R3 =
2.60 Ω, R4 = 1.80 Ω)

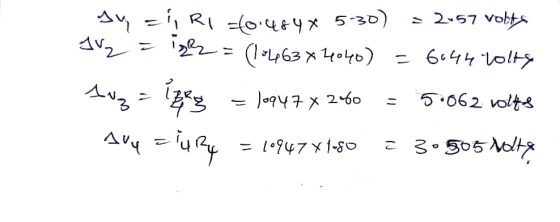

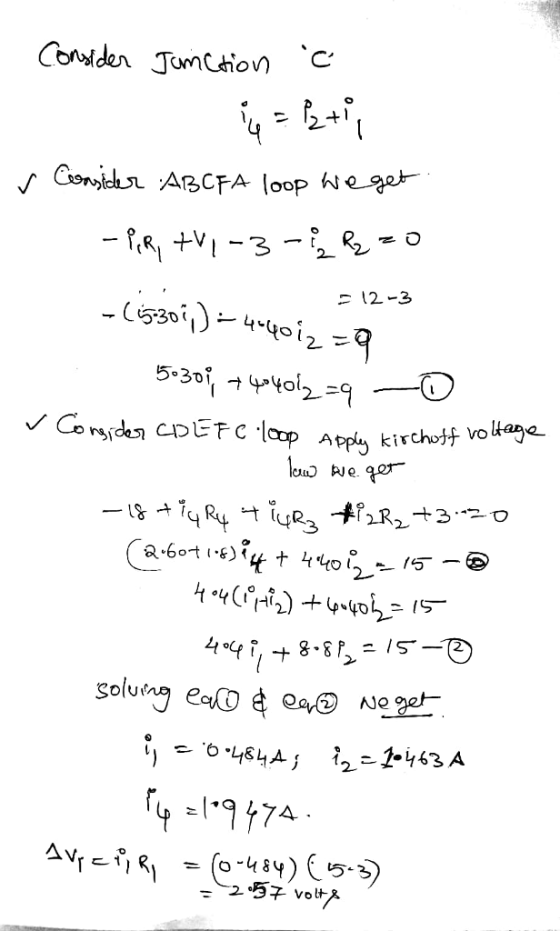

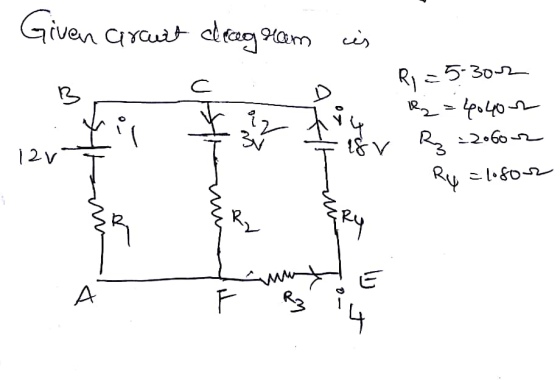

Homework Answers
Add Answer to:
Find the potential difference
across each resistor in the figure below. (R1 =
5.30 Ω, R2...
Find the potential difference across each resistor in the figure below. (R1 = 5.40 Ω, R2...
Find the potential difference across each resistor in the figure below. (R1 = 5.40 Ω, R2 = 4.40 Ω, R3 = 3.20 Ω, R4 = 1.80 Ω) ΔVR1 = Incorrect: Your answer is incorrect. V ΔVR2 = V ΔVR3 = V ΔVR4 = V A circuit consists of two adjacent rectangular loops, one to the left of the other. All three vertical sides have a battery for which the positive terminal is above the negative terminal, as well as a...
Find the potential difference across each resistor in the figure below. (R1 = 4.60 ?, R2...
Find the potential difference
across each resistor in the figure below. (R1 =
4.60 ?, R2 = 4.20 ?, R3 =
2.80 ?, R4 = 1.80 ?)??
?V1
=
?V2
=
?V3
=
?V4
=
12.0 V 8.00 V 18.0 V
V Find the potential difference across each resistor in the figure below. (R1 = 5.20 2,...

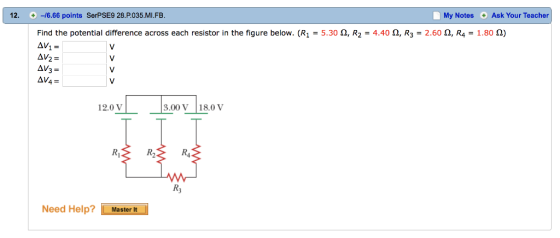

V Find the potential difference across each resistor in the figure below. (R1 = 5.20 2, R2 = 4.20 2, R3 = 2.80 2, R4 = 1.60 ) AV1 = AV2 = V AV3 = V AV4 = v 12.0 V 3.00 V 18.0 V Ri R2 R4 W R3
Find the potential difference across each resistor in the figure below. (R-470 ?, R2: 3.80 ?,...
Find the potential difference across each resistor in the figure below. (R-470 ?, R2: 3.80 ?, R3 2.60 ?, R4 2.40 ?) 12.0 V 8.00 180V Rs
Find the potential difference across each resistor in the figure below. (R = 4.70 A, R2...
Find the potential difference across each resistor in the figure below. (R = 4.70 A, R2 = 4.20 , R3 = 2.80 N, RA = 1.60 ) 12.0 V 3.00 V 18.0 V I RIŞ RŞR lu R AV, X Apply Kirchhoff's rules to write a set of simultaneous equations that can be solved for the current through the resistor R, AV, - AV- AVA V V V
Find the current in the 12-Ω resistor in the figure below. (Assume R1 = R3 =...
Find the current in the 12-Ω resistor in the figure below.
(Assume R1 = R3 = 5.0 Ω,
R2 = R4 = 8.2 Ω,
ΔV = 20 V.) (A)
Please answer the question correctly! Thank you so much in
advance!
Safari File Edit View History Bookmarks Window Help 令 44% D E® Mon 3:24:15 PM 10. -10 points sercp11 18.3.p.015.nva My Notes Ask Your Teacher Find the current in the 12-Ω resistor in the figure below. (Assume R,-R 5.0 Ω,...
Question 3. (10 points) Four resistors are connected as shown in Figure 28.9a Find the equivalent resistance between a and c. R1-16 and R4-12 Ω R2-13 R3-4 (a) (b) What is the current in each resistor...
Question 3. (10 points) Four resistors are connected as shown in Figure 28.9a Find the equivalent resistance between a and c. R1-16 and R4-12 Ω R2-13 R3-4 (a) (b) What is the current in each resistor if a potential difference of 0.64 V is maintained between a and c. Calculate the current in each resistor I (for Ri resistor)- I (for R2 resistor)- I (for R3 resistor) I (for R4 resistor)- Which resistor uses more power, R or R4? Which...
In the circuit shown in the diagram(Figure 1), suppose R1=R2 = 240 Ω and R3=R. The...
In the circuit shown in the diagram(Figure 1), suppose R1=R2 = 240 Ω and R3=R. The emf of the battery is 12.0 V . Find the value of R such that the current supplied by the battery is 0.0760 A . Find the value of R that gives a potential difference of 4.95 V across resistor 2.
Review In the circuit shown in the diagram(Figure 1), suppose R1=R2 = 220 Ω and R3=R....
Review In the circuit shown in the diagram(Figure 1), suppose R1=R2 = 220 Ω and R3=R. The emf of the battery is 12.0 V . (A)Find the value of R such that the current supplied by the battery is 0.0900 A . (B)Find the value of R that gives a potential difference of 4.35 V across resistor 2.
Find the current in the 12-Ω resistor in the figure below. (Assume R1 = R3 =...
Find the current in the 12-Ω resistor in the figure below.
(Assume R1 = R3 = 2.8 Ω, R2 = R4 = 7.8 Ω, ΔV = 21 V.)
Find the potential difference
across each resistor in the figure below. (R1 =
4.60 ?, R2 = 4.20 ?, R3 =
2.80 ?, R4 = 1.80 ?)??
?V1
=
?V2
=
?V3
=
?V4
=
12.0 V 8.00 V 18.0 V
V Find the potential difference across each resistor in the figure below. (R1 = 5.20 2, R2 = 4.20 2, R3 = 2.80 2, R4 = 1.60 ) AV1 = AV2 = V AV3 = V AV4 = v 12.0 V 3.00 V 18.0 V Ri R2 R4 W R3
Find the potential difference across each resistor in the figure below. (R-470 ?, R2: 3.80 ?, R3 2.60 ?, R4 2.40 ?) 12.0 V 8.00 180V Rs
Find the potential difference across each resistor in the figure below. (R = 4.70 A, R2 = 4.20 , R3 = 2.80 N, RA = 1.60 ) 12.0 V 3.00 V 18.0 V I RIŞ RŞR lu R AV, X Apply Kirchhoff's rules to write a set of simultaneous equations that can be solved for the current through the resistor R, AV, - AV- AVA V V V
Find the current in the 12-Ω resistor in the figure below.
(Assume R1 = R3 = 5.0 Ω,
R2 = R4 = 8.2 Ω,
ΔV = 20 V.) (A)
Please answer the question correctly! Thank you so much in
advance!
Safari File Edit View History Bookmarks Window Help 令 44% D E® Mon 3:24:15 PM 10. -10 points sercp11 18.3.p.015.nva My Notes Ask Your Teacher Find the current in the 12-Ω resistor in the figure below. (Assume R,-R 5.0 Ω,...
Question 3. (10 points) Four resistors are connected as shown in Figure 28.9a Find the equivalent resistance between a and c. R1-16 and R4-12 Ω R2-13 R3-4 (a) (b) What is the current in each resistor if a potential difference of 0.64 V is maintained between a and c. Calculate the current in each resistor I (for Ri resistor)- I (for R2 resistor)- I (for R3 resistor) I (for R4 resistor)- Which resistor uses more power, R or R4? Which...
Find the current in the 12-Ω resistor in the figure below.
(Assume R1 = R3 = 2.8 Ω, R2 = R4 = 7.8 Ω, ΔV = 21 V.)
