Question

Find the potential difference across each resistor in the figure below. (R1 = 5.40 Ω, R2 = 4.40 Ω, R3 = 3.20 Ω, R4 = 1.80 Ω) ΔVR1 = Incorrect: Your answer is incorrect. V ΔVR2 = V ΔVR3 = V ΔVR4 = V A circuit consists of two adjacent rectangular loops, one to the left of the other. All three vertical sides have a battery for which the positive terminal is above the negative terminal, as well as a resistor below the battery. The left side of the left loop has a battery labeled 12.0 V above a resistor labeled R1. The right side of the left loop, which is the left side of the right loop, has a battery labeled 3.00 V above a resistor labeled R2. The right side of the right loop has a battery labeled 18.0 V above a resistor labeled R4. Finally, the bottom side of the right loop has a resistor labeled R3.

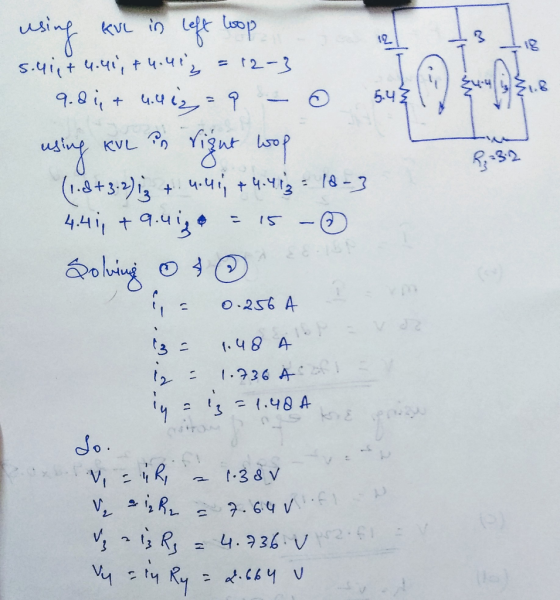

Answer 1

Comment in case any doubt please rate my answer ...
