Homework Answers
Add Answer to:

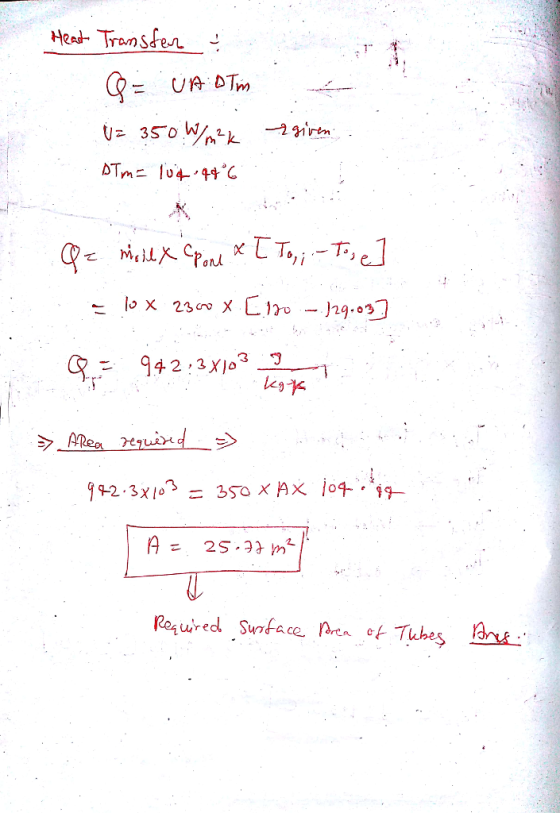

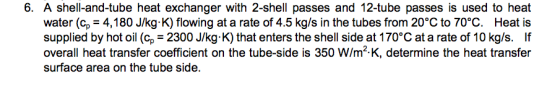

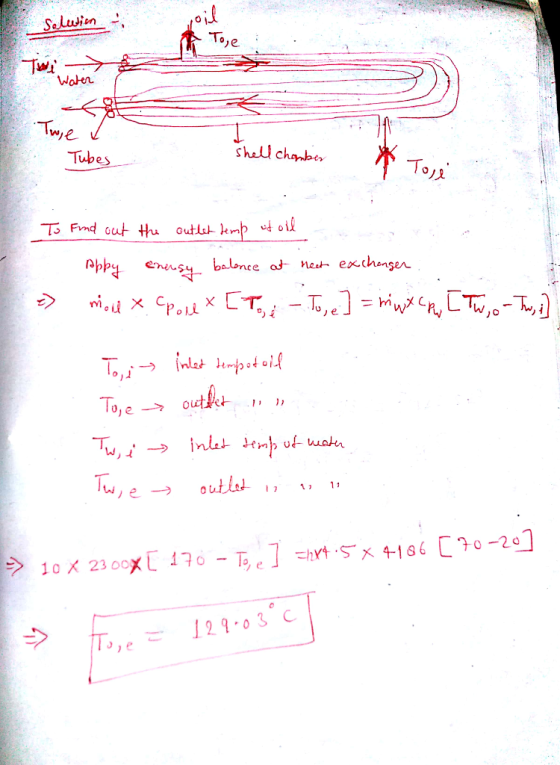

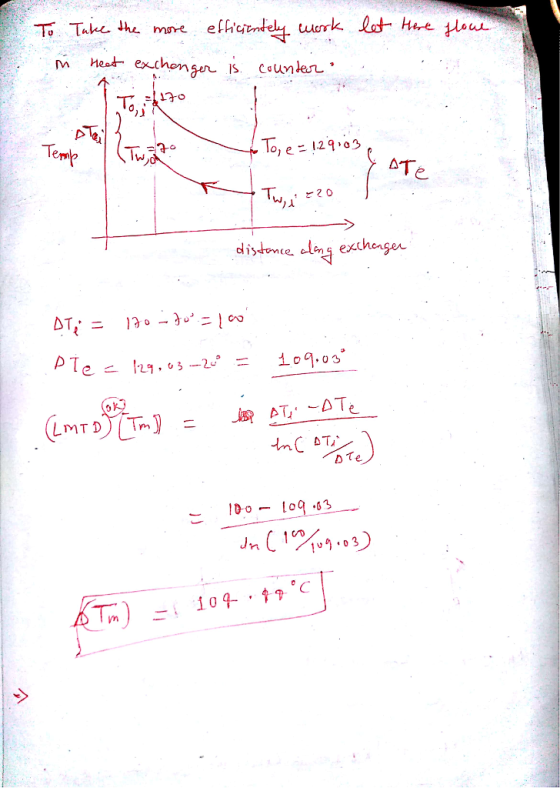

6. A shell-and-tube heat exchanger with 2-shell passes and 12-tube passes is used to heat water...
A shell-and tube heat exchanger has one-shell pass and 2-tube passes. This heat exchanger is used...
A shell-and tube heat exchanger has one-shell pass and 2-tube passes. This heat exchanger is used to cool oil, flowing through the tube-side from 140°C to 50°C. The cooling is accomplished by water, flowing through the shell-side, which enters the heat exchanger at 15°C and leaves at 32°C. Each tube pass consists of 60, 2.54-cm-O.D. tubes with a wall thickness of 1.65 mm.if the inside and outside heat transfer coefficients are h1=260 W/(m^2°C) and h°=970 W/(m^2°C), respectively, and the fouling...
2. (35P) Ashell-and-tube heat exchanger with 1-shell pass and 20-tube passes is used to heat glycerin...
2. (35P) Ashell-and-tube heat exchanger with 1-shell pass and 20-tube passes is used to heat glycerin (Cp = 2480 J/kg) in the shell, with hot water in the tubes. The tubes are thinwalled and have a diameter of 1.5 cm and length of 2 m per pass. The hot water (Cp=4180 J/kg Centers the tubes at 102°C at a rate of 9 kg/s and leaves at 55°C. Overall heat transfer coefficient U=13900 W/m2C. The glycerin enters the shell at 15°C...
Problem 2: Heat exchanger (25 points) Cold water (op 4179 J/kg K) enters the tubes of a heat exchanger at 20 °C at a rate of 3 kgs. while hot oil (cp 2200 J/kg.K) enters the shell at 130 C at the sam...
Problem 2: Heat exchanger (25 points) Cold water (op 4179 J/kg K) enters the tubes of a heat exchanger at 20 °C at a rate of 3 kgs. while hot oil (cp 2200 J/kg.K) enters the shell at 130 C at the same mass flow rate and leaves at 60°C The heat exchanger consistsoftwo shells and 20 tubes, each executing four passes (two passes per shell). If the W/m2-K, assume the tube wall is very thin with convective heat transfer...
6 Problem 4 (25%) A 2-shell passes and 4-tube passes heat exchanger is used to heat...
6 Problem 4 (25%) A 2-shell passes and 4-tube passes heat exchanger is used to heat glycerin (Cp.gly = 2447) entering at 15 °C by hot water (Cp water = 4180 f.), which enters at 90°C. The thin-walled inner tube has a 4 cm diameter and a total length of 15 m. The hot water flows through the tube at a total rate of 0.265 kg/s, and the glycerin through the shell at a rate of 0.6 kg/s. The convection...
be clear Problem 3 (60 Points). A 1-2 shell-and-tube heat exchanger must be designed to heat...
be clear
Problem 3 (60 Points). A 1-2 shell-and-tube heat exchanger must be designed to heat 2.5 kg/s of water from 15 to 85°C. The heating is to be accomplished by passing hot engine oil at a rate of 5.2 kg/s, which is available at 160°C, through the shell side of the exchanger. The oil is known to provide an average convection coefficient of 400 W/m2K on the outside of the tubes. Ten tubes passes the water through the shell....
QUESTION 2 2. A shell and tube heat exchanger with two shell passes and four tube...
QUESTION 2 2. A shell and tube heat exchanger with two shell passes and four tube passes cools a chemical with a specific heat of 2385 J/kg K at a rate of 1.25 kg/s from 140°C to 80°C, using water at 35°C. The outlet temperature of the water is 85°C. Determine the area of heat exchanger if U= 800 W/m2-K. If the unit is operated with flow rates doubled, determine the heat transfer. Also determine the heat transfer if the...
Part II – Show your work &nbs
Part II – Show your work [19 Marks] A shell-and-tube heat exchanger with 2-shell passes and 12-tube passes is used to heat water p (c = 4180 J/kg×o C) in the tubes from 30oC to 90oC at a rate of 4.3 kg/s. Heat is supplied by hot oil p (c = 2300 J/kg×o C) that enters the shell side at 180oC at a rate of 12 kg/s. For a tube-side overall heat transfer coefficient of...
A shell and tube heat exchanger with one shell pass and two tube passes is used...
A shell and tube heat exchanger with one shell pass and two tube passes is used to heat 8.82 kg/s of fluid from 15.6 °C to 60 °C by using saturated steam at 150 kPa. The steam is condensing on the outside of the tubes with h= 15 kW/m2.K. There are 50 tubes with an outside diameter of 1.91 cm and a wall thickness of 0.211 cm. If the fouling coefficient on the inside of the tubes is 5678 W/m2.K,...
1. A shell-and-tube heat exchanger with 1 shell and 10 tubes is used to heat glycerine...
1. A shell-and-tube heat exchanger with 1 shell and 10 tubes is used to heat glycerine in the shell, with hot water in the tubes. The tubes are thin walled and have a diameter of 1.5 cm and length of 2 m. The water enters the tubes at 100°C at a rate of 5 kg/s and leaves at 55°C. The glycerine enters the shell at 15°C and leaves at 55°C. Determine the mass flow rate of the glycerine and the...
Required information A shell-and-tube heat exchanger is used for cooling 47 kg/s of a process stream...
Required information A shell-and-tube heat exchanger is used for cooling 47 kg/s of a process stream flowing through the tubes from 160°C to 136°C. This heat exchanger has a total of 100 identical tubes. each with an inside diameter of 2.5 cm and negligible wall thickness. The average properties of the process stream are: p = 950 kg/m”, k = 0.50 W/mK, Cp=3.5 kJ/kg.K, and -20 mPas The coolant stream is water (cp=4.18 kJ/kg K) at a flow rate of...
2. (35P) Ashell-and-tube heat exchanger with 1-shell pass and 20-tube passes is used to heat glycerin (Cp = 2480 J/kg) in the shell, with hot water in the tubes. The tubes are thinwalled and have a diameter of 1.5 cm and length of 2 m per pass. The hot water (Cp=4180 J/kg Centers the tubes at 102°C at a rate of 9 kg/s and leaves at 55°C. Overall heat transfer coefficient U=13900 W/m2C. The glycerin enters the shell at 15°C...
Problem 2: Heat exchanger (25 points) Cold water (op 4179 J/kg K) enters the tubes of a heat exchanger at 20 °C at a rate of 3 kgs. while hot oil (cp 2200 J/kg.K) enters the shell at 130 C at the same mass flow rate and leaves at 60°C The heat exchanger consistsoftwo shells and 20 tubes, each executing four passes (two passes per shell). If the W/m2-K, assume the tube wall is very thin with convective heat transfer...
6 Problem 4 (25%) A 2-shell passes and 4-tube passes heat exchanger is used to heat glycerin (Cp.gly = 2447) entering at 15 °C by hot water (Cp water = 4180 f.), which enters at 90°C. The thin-walled inner tube has a 4 cm diameter and a total length of 15 m. The hot water flows through the tube at a total rate of 0.265 kg/s, and the glycerin through the shell at a rate of 0.6 kg/s. The convection...
be clear
Problem 3 (60 Points). A 1-2 shell-and-tube heat exchanger must be designed to heat 2.5 kg/s of water from 15 to 85°C. The heating is to be accomplished by passing hot engine oil at a rate of 5.2 kg/s, which is available at 160°C, through the shell side of the exchanger. The oil is known to provide an average convection coefficient of 400 W/m2K on the outside of the tubes. Ten tubes passes the water through the shell....
QUESTION 2 2. A shell and tube heat exchanger with two shell passes and four tube passes cools a chemical with a specific heat of 2385 J/kg K at a rate of 1.25 kg/s from 140°C to 80°C, using water at 35°C. The outlet temperature of the water is 85°C. Determine the area of heat exchanger if U= 800 W/m2-K. If the unit is operated with flow rates doubled, determine the heat transfer. Also determine the heat transfer if the...
A shell and tube heat exchanger with one shell pass and two tube passes is used to heat 8.82 kg/s of fluid from 15.6 °C to 60 °C by using saturated steam at 150 kPa. The steam is condensing on the outside of the tubes with h= 15 kW/m2.K. There are 50 tubes with an outside diameter of 1.91 cm and a wall thickness of 0.211 cm. If the fouling coefficient on the inside of the tubes is 5678 W/m2.K,...
1. A shell-and-tube heat exchanger with 1 shell and 10 tubes is used to heat glycerine in the shell, with hot water in the tubes. The tubes are thin walled and have a diameter of 1.5 cm and length of 2 m. The water enters the tubes at 100°C at a rate of 5 kg/s and leaves at 55°C. The glycerine enters the shell at 15°C and leaves at 55°C. Determine the mass flow rate of the glycerine and the...
Required information A shell-and-tube heat exchanger is used for cooling 47 kg/s of a process stream flowing through the tubes from 160°C to 136°C. This heat exchanger has a total of 100 identical tubes. each with an inside diameter of 2.5 cm and negligible wall thickness. The average properties of the process stream are: p = 950 kg/m”, k = 0.50 W/mK, Cp=3.5 kJ/kg.K, and -20 mPas The coolant stream is water (cp=4.18 kJ/kg K) at a flow rate of...
