A charge +2 μC is at the origin. A charge -4 μC is at x = 2.0 m on the +x axis.

Question

Question

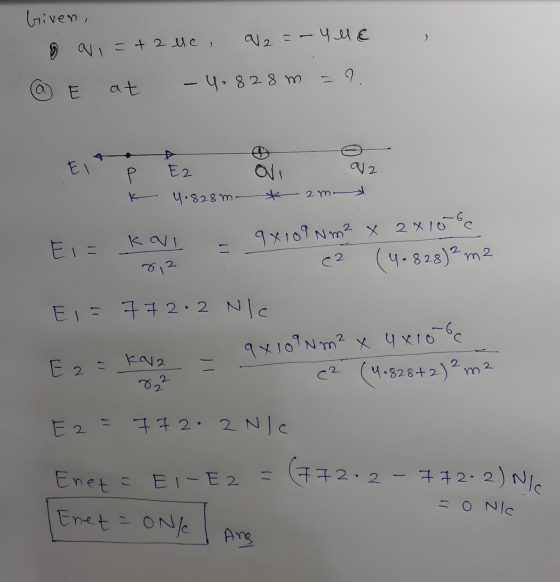

(a) What is the value of the electric field at x = -4.828 m?

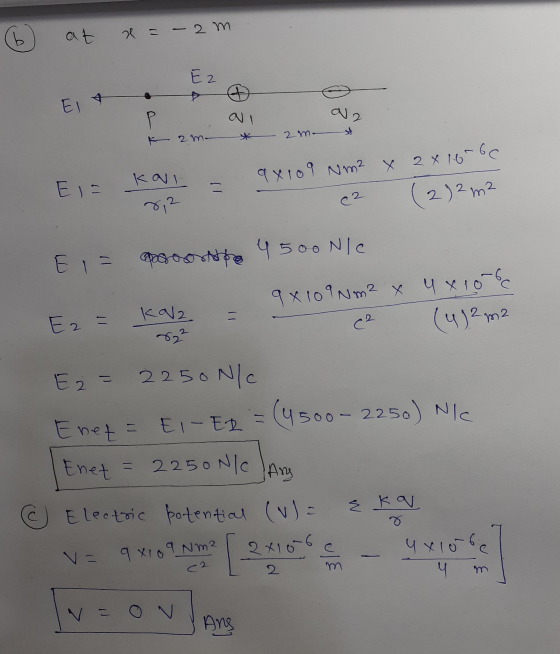

(b) What is the value of the electric field at x = -2 m?

(C) What is the value of the electric potential at x = -2 m?

science physics

Answer 1

Answer #1

Answer 2
