Homework Answers
Add Answer to:

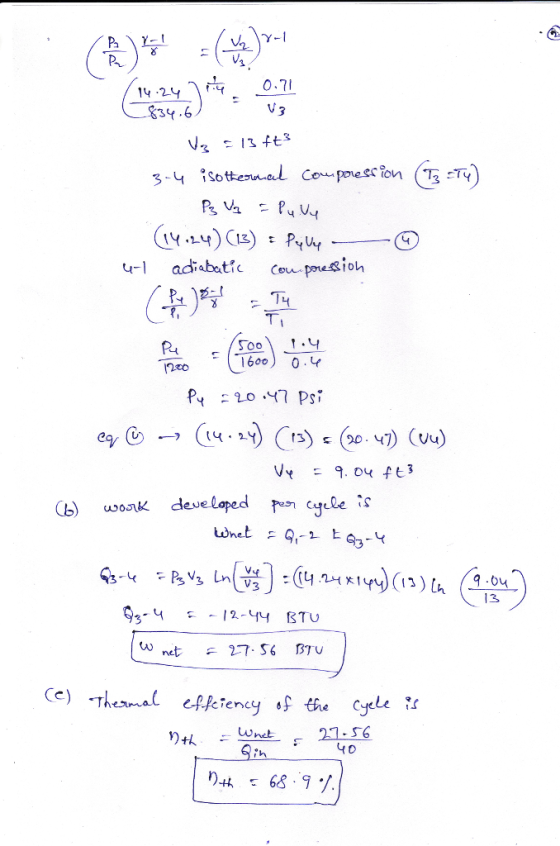

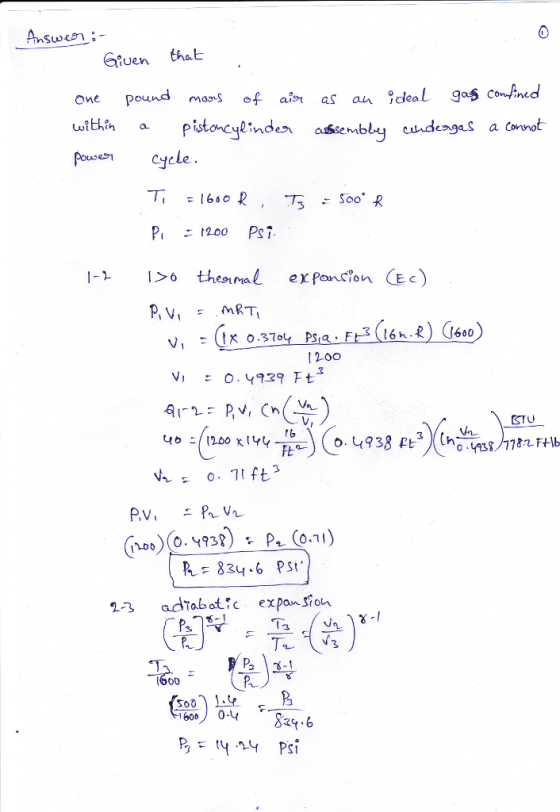

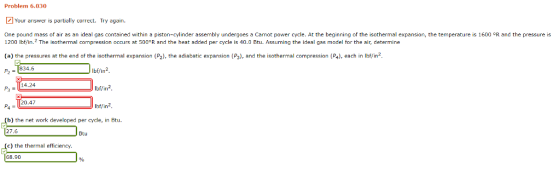

Problem 6.030 Your answer is partially correct. Try again. One pound mass of air as an...
Air in a piston-cylinder assembly executes a Carnot power cycle (4 internally reversible processes, shown in...
Air in a piston-cylinder assembly executes a Carnot power cycle (4 internally reversible processes, shown in the figure below). The isothermal expansion and compression processes occur at TH 1400 K and Tc-350 K, respectively. The pressure at the beginning and end of the isothermal compression are p4-100 kPa and pi - 500 kPa, respectively Assume the ideal gas model for the air: ai 0.717 J/g.K Mair- 28.97 g/mol kpv.air 1.4 R 8.314J /(mol K) Adiabatic Isothermal expansion Adiabatic compression Gas...
One pound of oxygen O2 undergoes a power cycle consisting of the following processes: 3.145 One...
One pound of oxygen O2 undergoes a power cycle consisting of
the following processes:
3.145 One lb of oxygen, 02, undergoes a power cycle consisting of the following processes: Process 1-2: Constant-volume heating from P1 = 20 lbf/in. 7, = 500°R to T2 = 820°R. Process 2-3: Adiabatic expansion to = 1.432 Process 3-1: Constant-pressure compression to state 1. Sketch the cycle on a p-v diagram. Assuming ideal gas behavior, determine (a) the pressure at state 2, in lbf/in.2 (b)...
need help understanding and how to solve this problem? Three kilograms of air within a piston-cylinder...
need help understanding and how to solve this problem?
Three kilograms of air within a piston-cylinder assembly executes a Carnot power cycle. The isothermal expansion occurs at 700K from 1.25 bar to 0.85 bar; the air can be treated as an ideal gas. If the cycle thermal efficiency is 65%, a. (5) determine the temperature of the isothermal compression b.(5) calculate the network developed for the cycle in kj c. (10) draw the cycle on both Pv and Ts diagrams,...
Problem 2:2* (Carnot Cycle Application) Two kilograms of air within a piston-cylinder assembly execute a Carnot...
Problem 2:2* (Carnot Cycle Application) Two kilograms of air within a piston-cylinder assembly execute a Carnot power cycle with maximum and minimum temperatures of 750 K and 300 K, respectively. The heat transfer to the air during the isothermal expansion is 60 kJ. At the end of the isothermal expansion, the pressure is 600 kPa. Assuming the ideal gas model for the air, determine (a) The thermal efficiency. (b) The Pressure and volume at the beginning of the isothermal expansion,...
Problem 3.094 SI Your answer is incorrect. Try again. Air contained in a piston-cylinder assembly undergoes...
Problem 3.094 SI Your answer is incorrect. Try again. Air contained in a piston-cylinder assembly undergoes the power cycle shown in the figure below. 4.5 Isothermal process (bar) 1.6 0 0 1.0 2.8125 v (m3/kg) Assuming ideal gas behavior for the air, evaluate the thermal efficiency of the cycle
PROBLEM-4 (50%) One kg of air is in a piston-cylinder assembly. Air is modeled as an...
PROBLEM-4 (50%) One kg of air is in a piston-cylinder assembly. Air is modeled as an ideal gas with a constant specific heat ratio, k = 1.4. The air undergoes a power cycle consisting of four processes in series: Process 1-2: Constant-temperature expansion at 600 K from P1 = 0.5 MPa to P2 = 0.4 MPa Process 2–3: Polytropic expansion with n=k to P3 = 0.3 MPa Process 3–4: Constant-pressure compression to V4 = V1 Process 4–1: Constant-volume heating. (a)...
2. One lb of air undergoes a power cycle consisting of the following processes: 1->2: constant...
2. One lb of air undergoes a power cycle consisting of the following processes: 1->2: constant volume from p1=20 psi, T1=500°R to T2=820°R 2->3: adiabatic expansion to v3 = 1.4 v2 3->1: constant pressure compression Sketch the cycle on a p-v diagram. Assuming ideal gas behavior, determine (a) The pressure at state 2 in psi. (b) The temperature at state 3 in °R. (c) The thermal efficiency of the cycle.
4. An ideal Carnot power generation cycle using air is represented by the diagram below. The prop...
4. An ideal Carnot power generation cycle using air is represented by the diagram below. The properties of the state points are given in the table below. Take the properties of air to be cp 0040.717. and RBhthe ns: and G, have been 1.004 chosen as the average values between the high temperature and low temperature processes, in order for you to not have to worry about the temperature dependence of cp and c, for this problem.) Recall that y...
Air in a piston-cylinder assembly executes a Carnot power cycle (4 internally reversible processes, shown in the figure below). The isothermal expansion and compression processes occur at TH 1400 K and Tc-350 K, respectively. The pressure at the beginning and end of the isothermal compression are p4-100 kPa and pi - 500 kPa, respectively Assume the ideal gas model for the air: ai 0.717 J/g.K Mair- 28.97 g/mol kpv.air 1.4 R 8.314J /(mol K) Adiabatic Isothermal expansion Adiabatic compression Gas...
One pound of oxygen O2 undergoes a power cycle consisting of
the following processes:
3.145 One lb of oxygen, 02, undergoes a power cycle consisting of the following processes: Process 1-2: Constant-volume heating from P1 = 20 lbf/in. 7, = 500°R to T2 = 820°R. Process 2-3: Adiabatic expansion to = 1.432 Process 3-1: Constant-pressure compression to state 1. Sketch the cycle on a p-v diagram. Assuming ideal gas behavior, determine (a) the pressure at state 2, in lbf/in.2 (b)...
need help understanding and how to solve this problem?
Three kilograms of air within a piston-cylinder assembly executes a Carnot power cycle. The isothermal expansion occurs at 700K from 1.25 bar to 0.85 bar; the air can be treated as an ideal gas. If the cycle thermal efficiency is 65%, a. (5) determine the temperature of the isothermal compression b.(5) calculate the network developed for the cycle in kj c. (10) draw the cycle on both Pv and Ts diagrams,...
Problem 2:2* (Carnot Cycle Application) Two kilograms of air within a piston-cylinder assembly execute a Carnot power cycle with maximum and minimum temperatures of 750 K and 300 K, respectively. The heat transfer to the air during the isothermal expansion is 60 kJ. At the end of the isothermal expansion, the pressure is 600 kPa. Assuming the ideal gas model for the air, determine (a) The thermal efficiency. (b) The Pressure and volume at the beginning of the isothermal expansion,...
Problem 3.094 SI Your answer is incorrect. Try again. Air contained in a piston-cylinder assembly undergoes the power cycle shown in the figure below. 4.5 Isothermal process (bar) 1.6 0 0 1.0 2.8125 v (m3/kg) Assuming ideal gas behavior for the air, evaluate the thermal efficiency of the cycle
PROBLEM-4 (50%) One kg of air is in a piston-cylinder assembly. Air is modeled as an ideal gas with a constant specific heat ratio, k = 1.4. The air undergoes a power cycle consisting of four processes in series: Process 1-2: Constant-temperature expansion at 600 K from P1 = 0.5 MPa to P2 = 0.4 MPa Process 2–3: Polytropic expansion with n=k to P3 = 0.3 MPa Process 3–4: Constant-pressure compression to V4 = V1 Process 4–1: Constant-volume heating. (a)...
2. One lb of air undergoes a power cycle consisting of the following processes: 1->2: constant volume from p1=20 psi, T1=500°R to T2=820°R 2->3: adiabatic expansion to v3 = 1.4 v2 3->1: constant pressure compression Sketch the cycle on a p-v diagram. Assuming ideal gas behavior, determine (a) The pressure at state 2 in psi. (b) The temperature at state 3 in °R. (c) The thermal efficiency of the cycle.
4. An ideal Carnot power generation cycle using air is represented by the diagram below. The properties of the state points are given in the table below. Take the properties of air to be cp 0040.717. and RBhthe ns: and G, have been 1.004 chosen as the average values between the high temperature and low temperature processes, in order for you to not have to worry about the temperature dependence of cp and c, for this problem.) Recall that y...
