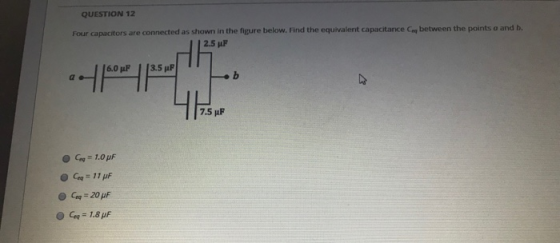

QUESTION 12 Four capacitors are connected as shown in the figure below. Find the equivalent capacitance...

Question

Question

science physics

Answer 1

Similar Homework Help Questions

QUESTION 11 A parallel plate capacitor has capacitance C when the area of each plate is...

QUESTION 11 A parallel plate capacitor has capacitance C when the area of each plate is A the separation between plates is d, and the medium between plates is the vacuum. What will be the new capacitance when the separation between plates is doubled 2d and a dielectric with constant 2 is filling the space between the plates? C-C C-20 C-4C C- QUESTION 12 Four capacitors are connected as shown in the figure below. Find the equivalent capacitance between the...
CAPACITANCE In the circuit shown in Figure 1 below the capacitors are connected with an applied...

CAPACITANCE In the circuit shown in Figure 1 below the capacitors are connected with an applied de potential difference across terminals a-b of V.- 200.0V. The capacitors have values C - 3.0 F, C = 3.0 uF, C, -6.0 pF, and C -6.0 F. Figure 1 Calculate the equivalent capacitance of the circuit. 1(a) ANSWER 1(b) Calculate the potential difference between locations c and don the circuit. ANSWER
2 pts Question 5 Three capacitors are connected as shown in the figure. What is the...

2 pts Question 5 Three capacitors are connected as shown in the figure. What is the equivalent capacitance between points a and b? 2.0F 4.0 MF 6.0 F be O 7.1 uF O 4.0uF 12 JF O 1.7 uF O 8.0 pF

Tutorial Exercise Four capacitors are connected as shown in the figure below. (Let C = 17.0...

Tutorial Exercise Four capacitors are connected as shown in the figure below. (Let C = 17.0 uF.) C 3.00 uF 20.0 uF 6.00 uF (a) Find the equivalent capacitance between points a and b. (b) Calculate the charge on each capacitor, taking AV ab = 19.5 V. Part 1 of 9 - Conceptualize From outside the circuit in the figure, the section of circuit between a and b would behave like a single capacitor. When voltage is applied between points...
Find the equivalent capacitance Ceq of the combination of capacitors shown in the figure, where C0.375...

Find the equivalent capacitance Ceq of the combination of capacitors shown in the figure, where C0.375 uF C2-10.0 μF , and C3-3.75 μF C, Ceq C.
Find the equivalent capacitance Ceq of he combination of capacitors shown in the figure, where C1=0.825uF...

Find the equivalent capacitance Ceq of he combination of capacitors shown in the figure, where C1=0.825uF , C2=10.0uF , C3 =2.25 uF. Physicist worriesT ⓧ亠Lakehead University . PHYS x N Netto Jump to... t⑦ Lyndsay willams 10/2133-Winter29-MACKAY Activities and Due Dates HW: Electric Potential ent Score 1345/2500 Resources Check Answer 7 of 25> Find the equivalent capacitance Cog of the combination of capacitors shown in the figure, where C 0.825 pF C2-10.0 μF, and C3-2.25 μF C2 ess

Consider the following figure. = =2 (a) Find the equivalent capacitance between points a and b...

Consider the following figure. = =2 (a) Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in the figure above. Take C, = 8.00 pF, C, = 11.0 pF, and ca = 4.00 uF. UF (b) What charge is stored on C, if the potential difference between points a and bis 60.0 V? PC
Six identical capacitors with capacitance C are connected as shown in the figure (Figure 1) ....

Six identical capacitors with capacitance C are connected as shown in the figure (Figure 1) . 1)What is the potential difference between points a and b? 2) What is the equivalent capacitance of these six capacitors? Six identical capacitors with capacitance C are connected as shown in the figure (Figure 1) What is the potential difference between points a and b? What is the equivalent capacitance of these six capacitors?
- Thanks in advance! What is the equivalent capacitance for the following three capacitors connected in...

- Thanks in advance! What is the equivalent capacitance for the following three capacitors connected in series: C1 = 70 uF, C2 = 10 pF, and C3 = 70 UF ? F Submit Answer Tries 0/2 e Post Discussion C1 C2 C3 What is the equivalent capacitance for the following three capacitors connected in parallel: C1 = 10 pF, C2 = 30 pF, and C3 = 60 uF ? MF Submit Answer Tries 0/2

Four capacitors are connected as shown below. Find the equivalent capacitance. Find the charge on each...

Four capacitors are connected as shown below. Find the equivalent capacitance. Find the charge on each capacitor if V_ab = 15 volts Find the energy stored in the 3 mu F.
