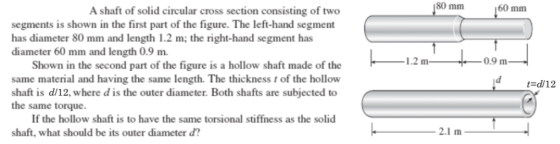

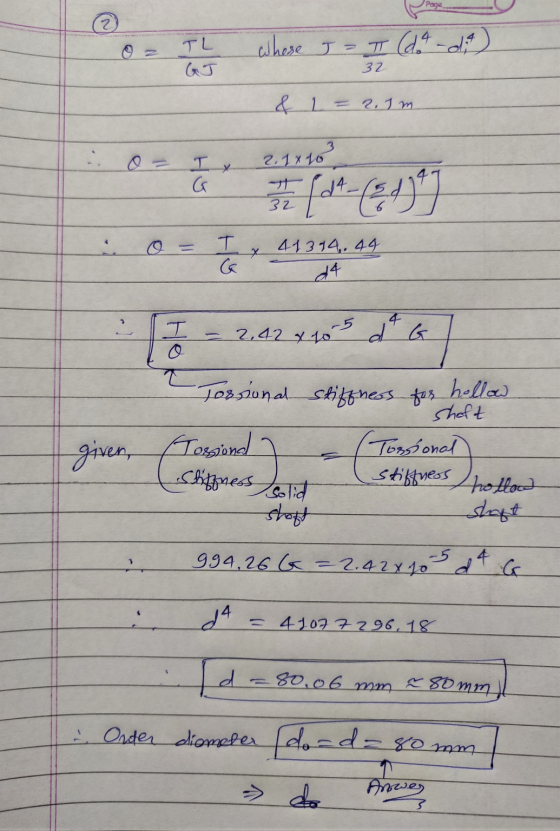

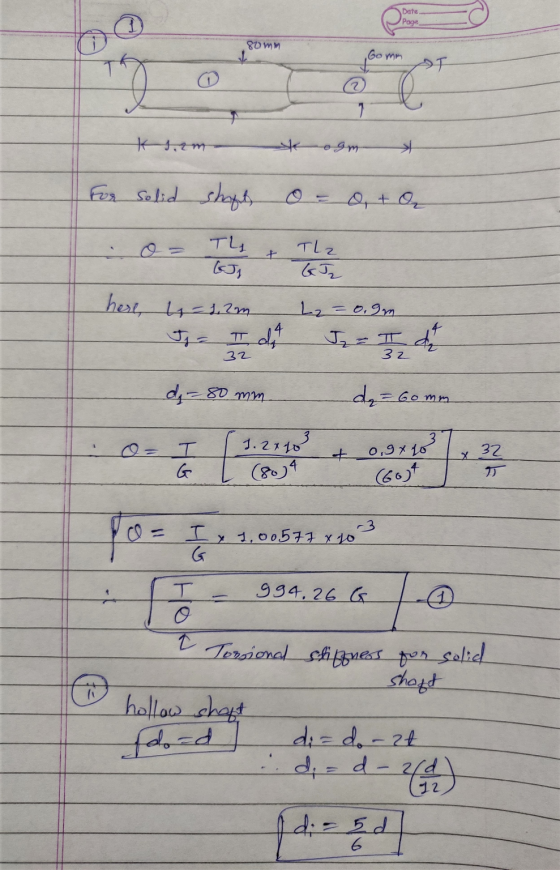

180 mm 160 mm -1.2 m- -0.9 m A shaft of solid circular cross section consisting...
Question - 5A [15 marks] Shaft BC is hollow with inner and outer diameters of 100 mm and 130 mm, respectively. Shafts AB and CD are solid and of diameter d. For the loading shown in Figure Q-5A, determine (a) The maximum and minimum shearing stress in shaft BC [6 marks] (b) The required diameter d of shafts AB and CD if the allowable shearing stress in these shafts is 60 MPa [5 marks] (c) Which shaft is better to...
01. Shaft BC is hollow with inner and outer
diameters of 90 mm and 120 mm, respectively. Shafts AB and CD are
solid and of diameter d. For the loading shown, determine (a) the
maximum and minimum shearing stress in shaft BC, (b) the required
diameter d of shafts AB and CD if the allowable shearing stress in
these shafts is 65 MPa. [TA = 7.5 kNm; TB = 16 kNm; TC = 30 kNm; TD
= 7 kNm]
01....
5 mm 10 mm 1000 mm I 90 mm Fig. 1: A hollow shaft with a solid circular disc Question 1 For the system shown in Fig. 1, a vertical hollow steel shaft of diameter (d) = 5mm and length (L) = 100mm is fixed at its upper end and has a solid circular disc having a diameter (D) = 90mm and a mass (m) 12kg fixed rigidly to its lower end as shown. Taking G = 83 GN/m2 for...
The shaft is hollow from A to B and solid from Bto C. The shaft has an outer diameter of 82 mm , and the thickness of the wall of the hollow segment is 10 mm (Figure 1) Part A Determine the maximum shear stress developed in the shaft. Express your answer to three significant figures and include the appropriate units Figure 1 of 1> Value Units Тmax Request Answer Submit В Return to Assignment Provide Feedback 4 kN.m 2...
The power loading on a uniform shaft of 20 mm diameter solid circular cross section is shown in Figure 2. The speed of the shaft is 1200 rpm. The shear modulus (G) of steel may be taken as 80 GPa C (a) Sketch the torque diagram; (b) Determine the maximum shear stress in the shaft (c) Calculate the angle of twist between the two ends of the shaft 1.2 m 1.8 m 6 kW 11 kW A Тв TA Tc...
A compound shaft drives several pulleys, as shown in Figure P6.18. Segments (1) and (2) of the compound shaft are FI = 28 GPa] tubes, which have an outside diameter of 75 mm and a wall thickness of 3 mm. Segments (3) and (4) are solid 40 mm diameter steel [G = 80 GPa] shafts. The shaft lengths are a = 2.0 m, b = 0.8 m, c = 1.4 m, and d = 1.4 m. The following torques are...
The 60-mm-diameter solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the absolute maximum and minimum shear stresses in the shaft's surface and specify their locations, measured from the free end. 10-25. The solid shaft is subjected to the distributed and concentrated torsional loadings shown. Determine the required diameter d of the shaft if the allowable shear stress for the material is Tallow = 60 MPa. 400 N·m 4 kN.m/m А. < 0.2 m 0.2 m...
L-A solid circular shaft of varying diameters is subjected to three torques with magnitudes equal to: T, = 600 Ibin, T2 -500 Ib-in and T3 200 Ib-in, as shown in the figure. The thicker segment has a diameter of di 2.83 in, and the other segment has diameter equal to d2 2.38 in. The length of each segment, in inches, is shown in the figure. The shaft is made of steel with G- 3.15 ksi. (a) Draw the torsion diagram...
Learning Goal: To determine the maximum shear force that can be applied to two shafts of varying cross sections: a solid square shaft and a hollow square shaft. The two square cross sections shown below (Figure 1) are each subjected to a vertical shear force, V. The side length of each cross section is s = 6.75 in and the side length of the hollowed-out portion of the second cross section is r = 4.00 in. The maximum allowable shear stress in...
35 mm A 20 mm 35 mm 00 N-m Figure 2 The solid shaft (Figure 2) is fixed at C and subjected to the torsional loadings as shown. Determine the shear stress at points A and B and sketch the shear stress on volume elements located at these points.
