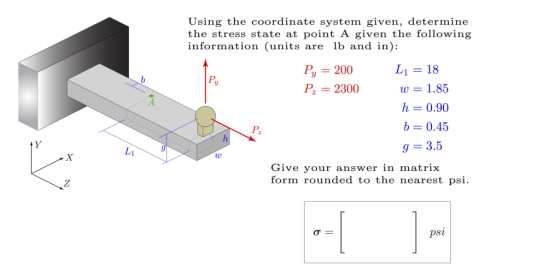

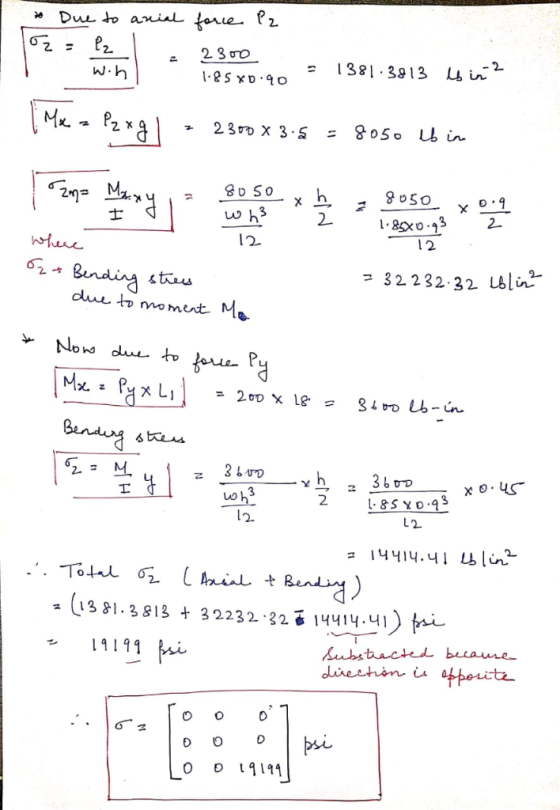

Using the coordinate system given, determine the stress state at point A given the following information...
The 3D state of stress in a point of an elastic solid is given in the...
The 3D state of stress in a point of an elastic solid is given in the x-y-z coordinates by: 「200 200 01 [o] 1 200 300 01 Using the matrix transformation law, determine the state of stress at the same point for an element rotated in the x-y plane 30° anticlockwise about the z-axis from its original position. a. b. Calculate the stress invariants and write the characteristic equation for the original state of stress Calculate the deviatoric invariants for...
For a state of stress at a point in a structure, certain stress components are given...
For a state of stress at a point in a structure, certain stress components are given for each of the two orientations as shown in Fig. P.3. What will the stress components Oy, ? (a) 16 MPa, (b) 14 MPa, (c) 18 MPa, (d) 12 MPa, (e) none of above 18 MPa 30 MPa 60 MPa 15 MPa Fig. P.3
Determine the normal stress in rod AC of the wing. The following information is given: AAC...
Determine the normal stress in rod AC of the wing. The following information is given: AAC = 200 mm2; a=2.5 m; b=2 m; w=3.5 kN/m (suggested time: 15 min) Answer:
O 0 % The state of stress at a point can be described by = 20...
O 0 % The state of stress at a point can be described by = 20 MPa., 52 MPa , and T = 12 MPa. A second coordinate system is rotated by = 25° as shown (Figure 4 Part A - Calculate sigma_{x} What is the normal stress in the direction of the axis? Express your answer with appropriate units to three significant figures. HA OB? 02= Value Units Submit Request Answer Part B - Calculate tau_(XY) direction? What is...
Chapter 3, Section 3.2, Question 07 (a) State whether the given system is autonomous or nonautonomous and also whether...
Chapter 3, Section 3.2, Question 07 (a) State whether the given system is autonomous or nonautonomous and also whether it is homogeneous or nonhomogeneous. x' x+y11, y = -31x+ sin (t) y The given system is (b) Write the system using matrix notation. ()-) = P +g where [Enter as 2x2 matrix.] P = [Enter as 2x1 matrix. g
Chapter 3, Section 3.2, Question 07 (a) State whether the given system is autonomous or nonautonomous and also whether it is...
Given the two dynamic systems S2 a ER Si has state r1, control u, and output y. S2 has state (x2,...
Given the two dynamic systems S2 a ER Si has state r1, control u, and output y. S2 has state (x2, r3), control w and output z. (a) Draw a dynamic diagram of system S2 (b) Express the equations for S1 and S2 in matrix from and determine whether each system is controllable, observable. (c) These two systems are connected in series with w-y. The resulting system is called S3. Write down the matrix form of the equation for S3...
The Hamiltonian of a system in the basis In > is given by H = hw("...
The Hamiltonian of a system in the basis In > is given by H = hw(" >< 0,1 + il" >< 421-142 >< 0,1 -21°3 >< $3D Here w is a constant. Write the Hamiltonian in the form of a matrix and obtain its eigenvalues and eigenfunctions. Express the eigenfunctions in terms of the basis In > and in its eigenvalues as En = hwe If the system is initially in the state | (0) >= 10 > a. What...
Problem (4) As described using a rectangular coordinate system, a positive 6.00 nC point charge is...
Problem (4) As described using a rectangular coordinate system, a positive 6.00 nC point charge is fixed at the point x = +0.150 m, y = 0.000 m and an identical point charge is fixed at x = -0.150 m, y = 0.000 m. Point P is located at x = +0.150 m, y = -0.400 m. (1 nC = 1 nanocoulomb = 10 °C) (a) Please find the magnitude and direction of the electric field at point P. (State...
Please draw each point PROBLEM 4 (25%) Given the following state of stress, 20 ksi 16...
Please draw each point
PROBLEM 4 (25%) Given the following state of stress, 20 ksi 16 ksi 8 ksi Given the following state of stress, using the Mohr's circle: Determine the principal normal stresses and show their sense on a properly oriented element, “PRINCIPAL STRESS”. Show stress invariance with the original stress condition. Find the maximum shear stress with their associate normal stresses and show the results on a properly oriented element, "MAX SHEAR STRESS”. Show stress invariance with the...
1. Consider the following 2D reservoir (different pressure boundaries), where unsteady-state single-phase oil flow is taking place. Use a time step of 10 days and generate the system of equations...
1. Consider the following 2D reservoir (different pressure boundaries), where unsteady-state single-phase oil flow is taking place. Use a time step of 10 days and generate the system of equations (implicit, backward-difference scheme), but DO NOT attempt to solve the equations. (20 pnts) Hint: Find the matrix [A] in the equation: [AJXj-d] 200 ft Injection Well; q-300 STB/D 150 t 6000 Psi 6000 Psi 6000 Psi 6000 Psi 5800 Psi 5800 Psi 5600 Psi 5600 Psi ap ay K-Ky- 75...
The 3D state of stress in a point of an elastic solid is given in the x-y-z coordinates by: 「200 200 01 [o] 1 200 300 01 Using the matrix transformation law, determine the state of stress at the same point for an element rotated in the x-y plane 30° anticlockwise about the z-axis from its original position. a. b. Calculate the stress invariants and write the characteristic equation for the original state of stress Calculate the deviatoric invariants for...
For a state of stress at a point in a structure, certain stress components are given for each of the two orientations as shown in Fig. P.3. What will the stress components Oy, ? (a) 16 MPa, (b) 14 MPa, (c) 18 MPa, (d) 12 MPa, (e) none of above 18 MPa 30 MPa 60 MPa 15 MPa Fig. P.3
Determine the normal stress in rod AC of the wing. The following information is given: AAC = 200 mm2; a=2.5 m; b=2 m; w=3.5 kN/m (suggested time: 15 min) Answer:
O 0 % The state of stress at a point can be described by = 20 MPa., 52 MPa , and T = 12 MPa. A second coordinate system is rotated by = 25° as shown (Figure 4 Part A - Calculate sigma_{x} What is the normal stress in the direction of the axis? Express your answer with appropriate units to three significant figures. HA OB? 02= Value Units Submit Request Answer Part B - Calculate tau_(XY) direction? What is...
Chapter 3, Section 3.2, Question 07 (a) State whether the given system is autonomous or nonautonomous and also whether it is homogeneous or nonhomogeneous. x' x+y11, y = -31x+ sin (t) y The given system is (b) Write the system using matrix notation. ()-) = P +g where [Enter as 2x2 matrix.] P = [Enter as 2x1 matrix. g
Chapter 3, Section 3.2, Question 07 (a) State whether the given system is autonomous or nonautonomous and also whether it is...
Given the two dynamic systems S2 a ER Si has state r1, control u, and output y. S2 has state (x2, r3), control w and output z. (a) Draw a dynamic diagram of system S2 (b) Express the equations for S1 and S2 in matrix from and determine whether each system is controllable, observable. (c) These two systems are connected in series with w-y. The resulting system is called S3. Write down the matrix form of the equation for S3...
The Hamiltonian of a system in the basis In > is given by H = hw(" >< 0,1 + il" >< 421-142 >< 0,1 -21°3 >< $3D Here w is a constant. Write the Hamiltonian in the form of a matrix and obtain its eigenvalues and eigenfunctions. Express the eigenfunctions in terms of the basis In > and in its eigenvalues as En = hwe If the system is initially in the state | (0) >= 10 > a. What...
Problem (4) As described using a rectangular coordinate system, a positive 6.00 nC point charge is fixed at the point x = +0.150 m, y = 0.000 m and an identical point charge is fixed at x = -0.150 m, y = 0.000 m. Point P is located at x = +0.150 m, y = -0.400 m. (1 nC = 1 nanocoulomb = 10 °C) (a) Please find the magnitude and direction of the electric field at point P. (State...
Please draw each point
PROBLEM 4 (25%) Given the following state of stress, 20 ksi 16 ksi 8 ksi Given the following state of stress, using the Mohr's circle: Determine the principal normal stresses and show their sense on a properly oriented element, “PRINCIPAL STRESS”. Show stress invariance with the original stress condition. Find the maximum shear stress with their associate normal stresses and show the results on a properly oriented element, "MAX SHEAR STRESS”. Show stress invariance with the...
1. Consider the following 2D reservoir (different pressure boundaries), where unsteady-state single-phase oil flow is taking place. Use a time step of 10 days and generate the system of equations (implicit, backward-difference scheme), but DO NOT attempt to solve the equations. (20 pnts) Hint: Find the matrix [A] in the equation: [AJXj-d] 200 ft Injection Well; q-300 STB/D 150 t 6000 Psi 6000 Psi 6000 Psi 6000 Psi 5800 Psi 5800 Psi 5600 Psi 5600 Psi ap ay K-Ky- 75...
