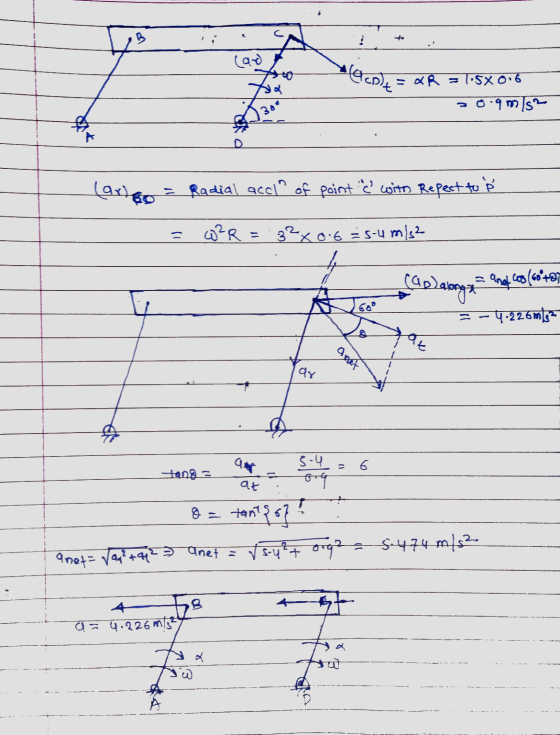

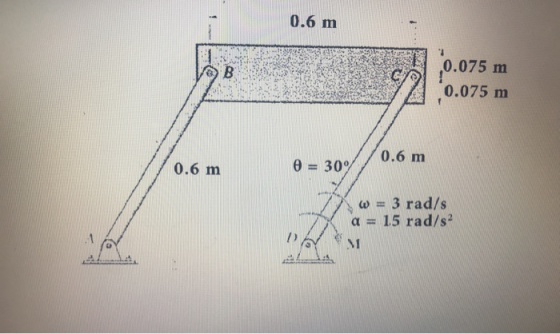

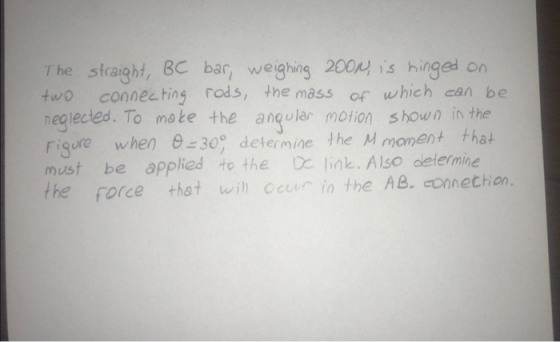

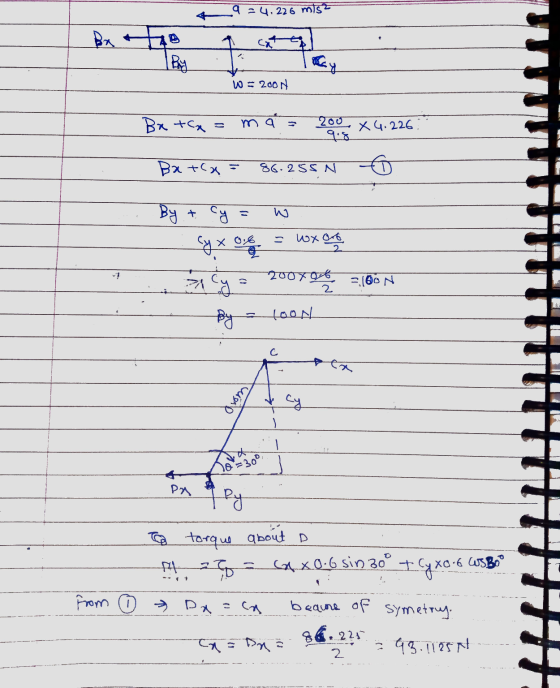

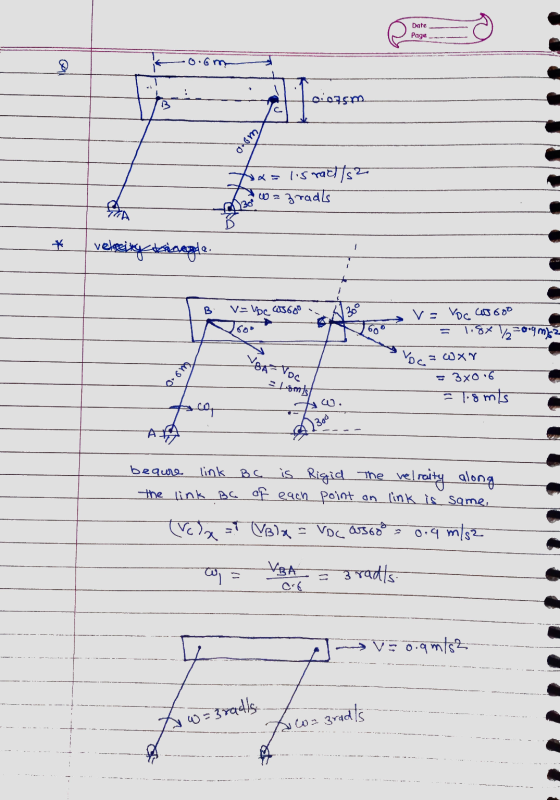

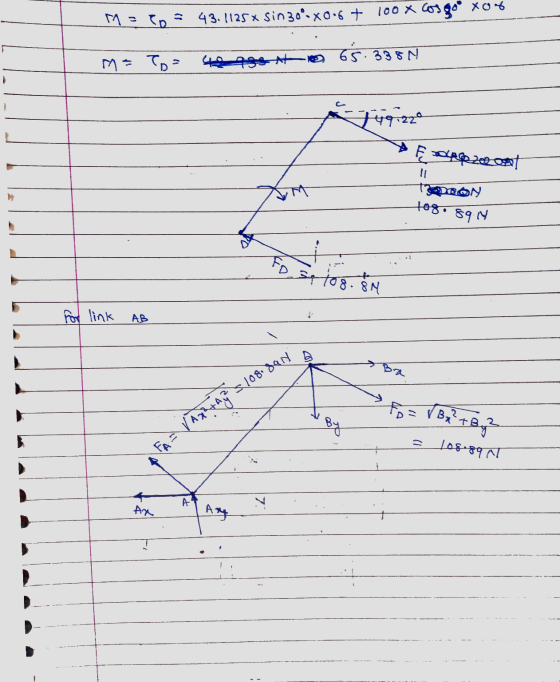

The straight, BC bar, weighing 200M is hinged on two connecting rods, the mass of which...
The linkage consists of two 6-kg rods AB and CD and a 16-kg bar BD. When...
The linkage consists of two 6-kg rods AB and CD and a 16-kg bar BD. When 0 = 0º, rod AB is rotating with an angular velocity w = 2 rad/s. Rod CD is subjected to a couple moment of M = 30 N m . (Figure 1) Part A Determine w, measured counterclockwise, at the instant e = 90'. Express your answer using three significant figures. Enter positive value if the angular velocity is counterclockwise and negative value if...
The figure shows at a snapshot of a mechanism consisting of two rods, each with mass...
The figure shows at a snapshot of a mechanism consisting of two rods, each
with mass 4 kg and length 70 cm. The rods are hinged together, and one of the
a rod is also hinged to a wall. The size of the hinges, should be ignored.
Rod one is drive by a moment M, so that the angular velocity ω1
= 2 rad / s keeps constant.
1. Calculate the angular acceleration α2 for rod 2 in
the situation shown....
1. The bar AB rotates at constant 10 rad/s (a = 0 rad/s?) in the counterclockwise...
1. The bar AB rotates at constant 10 rad/s (a = 0 rad/s?) in the counterclockwise direction Determine: B D 0 1 1 m -450 S C 1 m 1 m Write the coordinates of all joints and COM. Assume the COM is in the center of each link: A B D С GI G2 G3 X у Write the equations for velocities and solve the system of equations (25 pts): a) Angular velocity of link BD: b) Angular velocity...
plz solve the last two parts c and d Q3. The four bar linkage mechanism as...
plz solve the last two parts c and d
Q3. The four bar linkage mechanism as shown in Figure 3 has two hydraulic cylinders controlling the motion of the connecting rods A and C so that they can only move in the vertical direction. At this instance, the distance y is 150 mm, A has an upwards velocity of 4 m/s and C has a downwards velocity of 3 m/s. Using a carefully drawn scaled velocity and acceleration diagram, (scale:...
WhatsApp + @ 52% 11:17 docs.google.com If bar AB has an angular velocity of 6 rad/s,...
WhatsApp + @ 52% 11:17 docs.google.com If bar AB has an angular velocity of 6 rad/s, determine the angular velocity of *.link BC at the instant shown 30° 200 mm B 150 mm WAB = 6 rad/s 60° 1.4 rad/s 8.5 rad/s O E
A four-bar linkage is shown in the figure (the ground "link" OC is considered the fourth...
A four-bar linkage is shown in the figure (the ground "link" OC is considered the fourth bar). If the drive link OA has a counterclockwise angular velocity o-5.0 rad/s, determine the angular velocities of links AB and BC. The angular velocities are positive if counterclockwise, negative if clockwise 16° 455 mm 355 135 mm 53° 0 Answers: AB 0.213 B0.380
The two 4- lb rods EF and HI are fixed (welded) to the link AC at E . At the instant θ = 30 ∘ link AB has an angular velocity ω = 5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in (Figure...
The two 4- lb rods EF and HI are fixed (welded) to the link AC
at E . At the instant θ = 30 ∘ link AB has an angular velocity ω =
5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in
(Figure 1).
Part A
Determine the internal axial force Ex which
the bar AC exerts on FE at
E using scalar notation.
Express your answer to three significant figures and include the...
on link BC at the instant shown. Determine the velocity of point Express your answer to...
on link BC at the instant shown. Determine the velocity of point Express your answer to three significant figures and include the appropriate units. Link CD has an angular velocity of wCD (Figure 1) 6 rad/s. C. 7 Value Units UB = Figure 1 of 1 Submit Request Answern Part B 0.3 m 0.3 m Determine the angular velocity link AB at the instant shown. Express your answer to three significant figures and include the appropriate units. 0.6 m CD=...
4 In the mechanism shown, the centre of mass of link 3 is at G3, which...
4 In the mechanism shown, the centre of mass of link 3 is at G3, which is located at the centre of link 3. The mass of link 3 is 0.5 kg. Its moment of inertia about G; is 0.0012 N-s2-m. The weights and moments Of inertia of members 2 and 4 may be neglected. Link 2 is driven at a constant angular velocity of 50 rad/s CW by the torque applied to link 2. The mechanism moves in the...
show all work please find both AB and BC!! The assembly consists of two 25-kg bars...
show all work please
find both AB and BC!!
The assembly consists of two 25-kg bars which are pin connected. The bars are released from rest when 0 = 60°. The 8-kg disk at C has a radius of 0.5 m and rolls without slipping. (Figure 1) Figure 1 of 1 В 3 m 3 m o А C Determine the angular velocity of the bar AB at the instant 0 = 30°, measured clockwise. Express your answer in radians...
The linkage consists of two 6-kg rods AB and CD and a 16-kg bar BD. When 0 = 0º, rod AB is rotating with an angular velocity w = 2 rad/s. Rod CD is subjected to a couple moment of M = 30 N m . (Figure 1) Part A Determine w, measured counterclockwise, at the instant e = 90'. Express your answer using three significant figures. Enter positive value if the angular velocity is counterclockwise and negative value if...
The figure shows at a snapshot of a mechanism consisting of two rods, each
with mass 4 kg and length 70 cm. The rods are hinged together, and one of the
a rod is also hinged to a wall. The size of the hinges, should be ignored.
Rod one is drive by a moment M, so that the angular velocity ω1
= 2 rad / s keeps constant.
1. Calculate the angular acceleration α2 for rod 2 in
the situation shown....
1. The bar AB rotates at constant 10 rad/s (a = 0 rad/s?) in the counterclockwise direction Determine: B D 0 1 1 m -450 S C 1 m 1 m Write the coordinates of all joints and COM. Assume the COM is in the center of each link: A B D С GI G2 G3 X у Write the equations for velocities and solve the system of equations (25 pts): a) Angular velocity of link BD: b) Angular velocity...
plz solve the last two parts c and d
Q3. The four bar linkage mechanism as shown in Figure 3 has two hydraulic cylinders controlling the motion of the connecting rods A and C so that they can only move in the vertical direction. At this instance, the distance y is 150 mm, A has an upwards velocity of 4 m/s and C has a downwards velocity of 3 m/s. Using a carefully drawn scaled velocity and acceleration diagram, (scale:...
WhatsApp + @ 52% 11:17 docs.google.com If bar AB has an angular velocity of 6 rad/s, determine the angular velocity of *.link BC at the instant shown 30° 200 mm B 150 mm WAB = 6 rad/s 60° 1.4 rad/s 8.5 rad/s O E
A four-bar linkage is shown in the figure (the ground "link" OC is considered the fourth bar). If the drive link OA has a counterclockwise angular velocity o-5.0 rad/s, determine the angular velocities of links AB and BC. The angular velocities are positive if counterclockwise, negative if clockwise 16° 455 mm 355 135 mm 53° 0 Answers: AB 0.213 B0.380
The two 4- lb rods EF and HI are fixed (welded) to the link AC
at E . At the instant θ = 30 ∘ link AB has an angular velocity ω =
5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in
(Figure 1).
Part A
Determine the internal axial force Ex which
the bar AC exerts on FE at
E using scalar notation.
Express your answer to three significant figures and include the...
on link BC at the instant shown. Determine the velocity of point Express your answer to three significant figures and include the appropriate units. Link CD has an angular velocity of wCD (Figure 1) 6 rad/s. C. 7 Value Units UB = Figure 1 of 1 Submit Request Answern Part B 0.3 m 0.3 m Determine the angular velocity link AB at the instant shown. Express your answer to three significant figures and include the appropriate units. 0.6 m CD=...
4 In the mechanism shown, the centre of mass of link 3 is at G3, which is located at the centre of link 3. The mass of link 3 is 0.5 kg. Its moment of inertia about G; is 0.0012 N-s2-m. The weights and moments Of inertia of members 2 and 4 may be neglected. Link 2 is driven at a constant angular velocity of 50 rad/s CW by the torque applied to link 2. The mechanism moves in the...
show all work please
find both AB and BC!!
The assembly consists of two 25-kg bars which are pin connected. The bars are released from rest when 0 = 60°. The 8-kg disk at C has a radius of 0.5 m and rolls without slipping. (Figure 1) Figure 1 of 1 В 3 m 3 m o А C Determine the angular velocity of the bar AB at the instant 0 = 30°, measured clockwise. Express your answer in radians...
