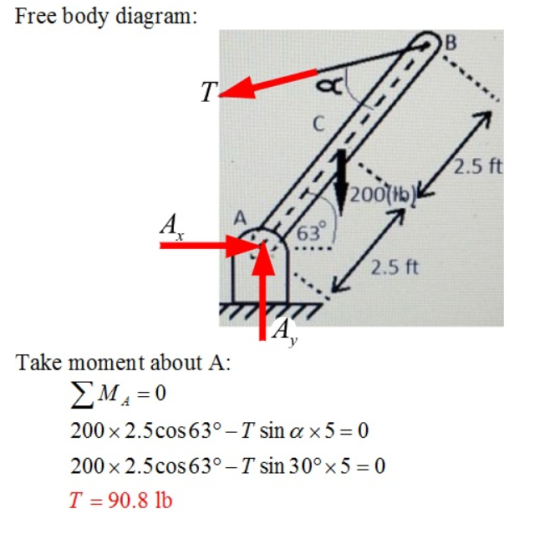

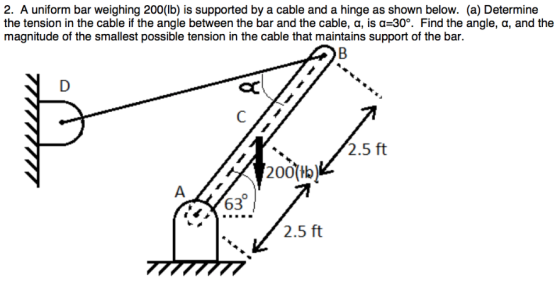

2. A uniform bar weighing 200 (lb) is supported by a cable and a hinge as shown below. (a) Determine the tension in the cable if the angle between the bar and the cable, a, is α=30°. Find the angle, α, and the magnitude of the smallest possible tension in the cable that maintains support of the bar. 多 2.5 ft 2.5 ft TIITmm

engineering   Civil-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
2. A uniform bar weighing 200 (lb) is supported by a cable and a hinge as...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 2.0 m long uniform beam is supported by a cable as shown below. The cable...

    A 2.0 m long uniform beam is supported by a cable as shown below. The cable is at an angle of 35 degree to the horizontal and has a tension of 300 N. Find the vertical and horizontal forces of the hinge and the mass of the beam.

  • A bar AB weighing 836 N is supported by a post (CD) and a cable as...

    A bar AB weighing 836 N is supported by a post (CD) and a cable as shown. The post weighs 316 N. Assume that all surfaces are smooth. Determine the tension in the cable and the forces acting on the bar at the contacting surfaces if the bar is in equilibrium. Л bar ЛВ eighing 836 N is supported by a post CD and a cable as shown. The post weighs 316 N Assume that oll surfaces are smooth Determine...

  • Rigid bar ABC is 4 ft long and lies in the yz-plane. A hinge at A and cable CD support the bar

    Rigid bar ABC is 4 ft long and lies in the yz-plane. A hinge at A and cable CD support the bar. The hinge axis lies along the x-axis. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.) Determine the reactions the hinge exerts on the bar and the tension in cable CD. Point B, where F is applied to the rod, is 3 ft (measured along the rod) from...

  • A homogeneous, 4-ft-wide, 14-ft-long rectangular gate weighing 800 lb is held in place by a horizontal...

    A homogeneous, 4-ft-wide, 14-ft-long rectangular gate weighing 800 lb is held in place by a horizontal flexible cable as shown in the figure below. Water acts against the gate, which is hinged at point A. Friction in the hinge is negligible. Determine the tension in the cable. 30 Keo Cable Water Gate 9.3ft14ft Hinge 1658.04 lb the tolerance is +/-2%

  • A homogeneous, 4-ft-wide, 8-ft-long rectangular gate weighing 800 lb is held in place by a horizontal...

    A homogeneous, 4-ft-wide, 8-ft-long rectangular gate weighing 800 lb is held in place by a horizontal flexible cable as shown in the figure. Water acts against the gate which is hinged at point A. Friction in the hinge is negligible. Determine the tension in the cable. A homogeneous, 4-ft-wide, 8-ft-long rectangular gate weighing 800 lb is held in place by a horizontal flexible cable as shown in the figure. Water acts against the gate which is hinged at point A....

  • A homogeneous, 4-ft-wide, 16-ft-long rectangular gate weighing 1000 lb is held in place by a horizontal...

    A homogeneous, 4-ft-wide, 16-ft-long rectangular gate weighing 1000 lb is held in place by a horizontal flexible cable as shown in the Fig. P2.87. Water acts against the gate which is hinged at point A. Friction in the hinge is negligible. Determine the tension in the cable. A homogeneous, 4-ft-wide, 16-ft-long rectangular gate weighing 1000 lb is held in place by a horizontal flexible cable as shown in the Fig. P2.87. Water acts against the gate which is hinged at...

  • As shown below, a sign weighing 490 N is hanging (via a wire) from a uniform...

    As shown below, a sign weighing 490 N is hanging (via a wire) from a uniform 263 N beam of length L. Additionally, the beam is attached to a cable that makes an angle 0 (0 = 34°) with the beam. 0.8L Determine the tension in the cable and the magnitude & direction of the force the hinge (the orange circle) exerts on the beam. Cable tension = Hinge force = Direction of hinge force = o relative to the...

  • 4.) Cable DE holds a simply-supported beam with an internal hinge at B. Find the support...

    4.) Cable DE holds a simply-supported beam with an internal hinge at B. Find the support reactions at hinge B 1 ft 9 ft 10 ft 2 k/ft 10 ft 30 ft

  • A homogeneous, 4-ft-wide, 6.6 ft-long rectangular gate weighing 800 lb is held in place by a...

    A homogeneous, 4-ft-wide, 6.6 ft-long rectangular gate weighing 800 lb is held in place by a horizontal flexible cable as shown in the figure below. Water acts against the gate, which is hinged at point A. Friction in the hinge is negligible. Determine the tension in the cable. Cable 159 Water Gate 2676.6ft 466.16 Next →

  • A homogeneous, 4-ft-wide, 9.7-ft-long rectangular gate weighing 800 lb is held in place by a horizontal...

    A homogeneous, 4-ft-wide, 9.7-ft-long rectangular gate weighing 800 lb is held in place by a horizontal flexible cable as shown in the figure below. Water acts against the gate, which is hinged at point A. Friction in the hinge is negligible. Determine the tension in the cable. Assume L1 = 9.7 ft, L2 = 1.4 ft, and 0= 34° Cable Water ins
