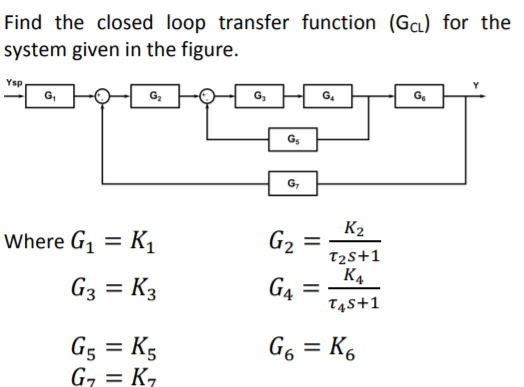

Find the closed loop transfer function (Gal) for the system given in the figure. u Gz...

Question

Question

Find the closed loop transfer function (Gal) for the system given in the figure. u Gz = 5+1 K2 T2S+1 Where G1 = K1 G3 = K3 TA

engineering Electrical-Engineering

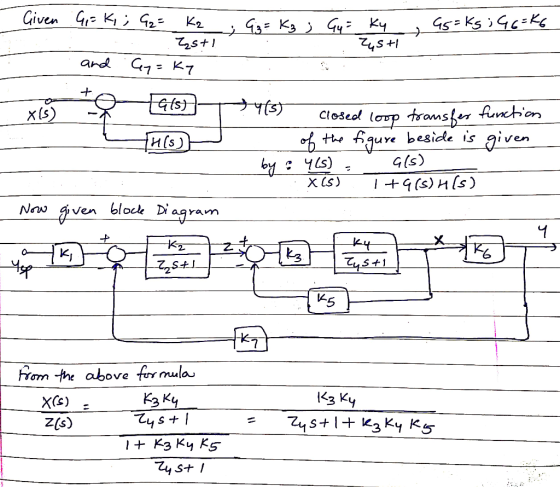

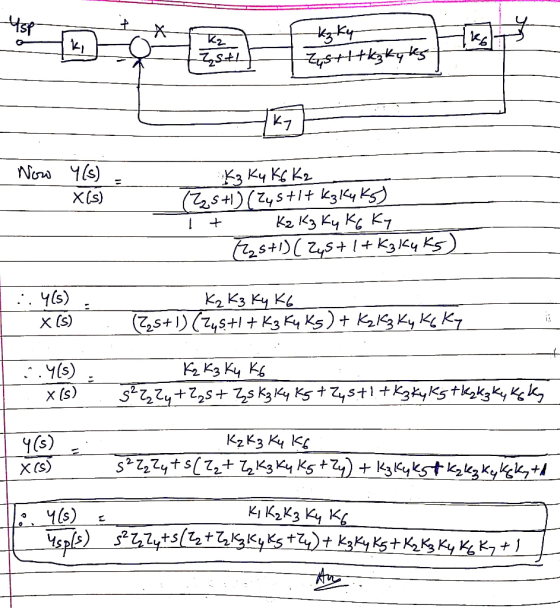

Answer 1

Answer #1

Answer 2
