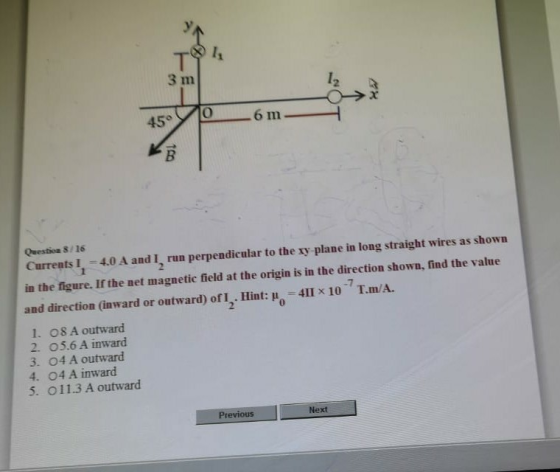

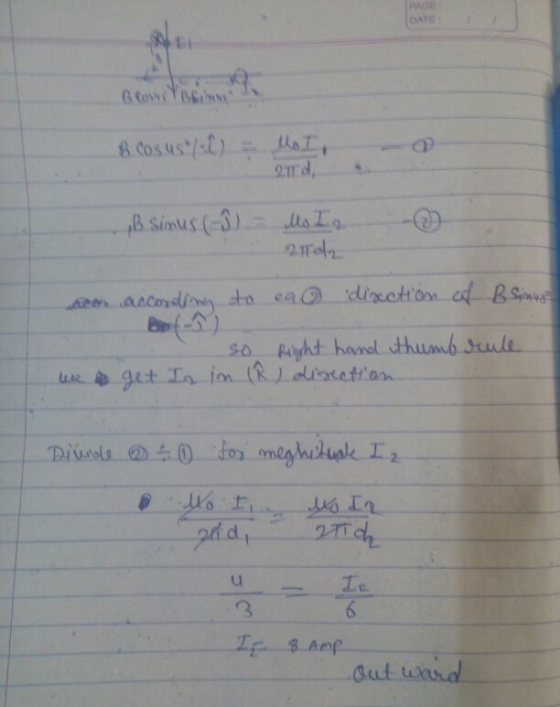

3 m 450 6 Question S/16 Currents I, -4.0 A and I, run perpendicular to the...
Question 20 (7 points) Two long straight wires carry currents perpendicular to the xy-plane. One wire...
Question 20 (7 points) Two long straight wires carry currents perpendicular to the xy-plane. One wire carries a current of 50 A and passes through the point x = 5.0 cm on the x-axis. The second wire has a current of 80 A and passes through the point y = 4.0 cm on the y- axis. What is the magnitude of the resulting magnetic field at the origin? 200 ut 300 uT 400 uT 450 uT 600 uT
Four long straight parallel wires are oriented perpendicular to the x-y plane and carry currents I1,...
Four long straight parallel wires are oriented perpendicular to
the x-y plane and carry currents I1, I2,
I3 and I4. The magnitudes of the currents are
all identical and equal to 4.015 A. Current I3 is into
the x-y plane (i.e. into the screen), whereas each of the other
three currents are all out of the x-y plane(i.e. out of the screen)
as shown below. Each of the wires is a distance of 2.987 cm from
the origin as measured...
Four long straight parallel wires are oriented perpendicular to the x-y plane and carry currents I1,...
Four long straight parallel wires are oriented perpendicular to
the x-y plane and carry currents I1, I2,
I3 and I4. The magnitudes of the currents are
all identical and equal to 8.475 A. Current I4 is into
the x-y plane (i.e. into the screen), whereas each of the other
three currents are all out of the x-y plane(i.e. out of the screen)
as shown below. Each of the wires is a distance of 6.105 cm from
the origin as measured...
2. Two parallel straight wires carry currents I I 4.0 A in the directions shown. Find...
2. Two parallel straight wires carry currents I I 4.0 A in the directions shown. Find the magnetic field at p. Give Both the magnitude and direction of the field at p. 0.03 m 0,02 m P.
Please help with this question, I am having a hard time understanding. Need a clear diagram...
Please help with this question, I am having a hard time
understanding. Need a clear diagram to grasp the idea. Thank
you!
3. Two wires lie perpendicular to the plane of the paper, and ass through the paper in th directions shown. Point P is equidistant from the two wires Construct a vector diagram showing the direction of the resultant magnetic field at point P due to currents in these two wires. Explain your reasoning. a) b) If the currents...
Please solve the question quickly EENG232 ELECTROMAGNETICS I/Page 6 0.3 (a) A pair of stationary and...
Please solve the question quickly
EENG232 ELECTROMAGNETICS I/Page 6 0.3 (a) A pair of stationary and infinitely long bent wires are placed in the x-y plane as shown in Figure Q.3(a). The two wires carry currents of 4 A and 9 A respectively. If the segments D and A are along x-axis and the segments and F are parallel to y-axis such that OB = 12 cm and OE = 13 cm, calculate the magnetic field density at the origin...
A wire bent into the shape of a semicircle of radius Rforms a closed circuit and...
A wire
bent into the shape of a semicircle of radius Rforms
a closed circuit and carries a current I.
The circuit lies in the xy
plane,
and a uniform magnetic field is present along the positive
y
axis as
in Figure 29.12. Find the magnetic force on the straight portion of
the wire and on the curved portion. Please answer the part I
circled in red!!! Thank you!
2. 2.2/5 points | Previous Answers PSE6 29 AE 02 Example...
A point-like charge of +5nC is at the origin and travelling with a velocity of 3...
A point-like charge of +5nC is at the origin and travelling with
a velocity of 3 x 106 m/s in the positive
x-direction.
A.) What is the magnetic field vector that this charge produces
at (x = y= 0, z = +1mm)?
b.)What is the Lorentz force (magnitude and direction) this
charge will exert on another charge of -10 nC placed at (x = y =0,
z = +1 mm) which is moving with the same speed and in the...
The simulation (linked below) shows two long, straight wires wre #1 les on the z aos and carries arrent İl in the +Z direction. wre #2 is paralel to w re '1 and cames current a in the t di...
The simulation (linked below) shows two long, straight wires wre #1 les on the z aos and carries arrent İl in the +Z direction. wre #2 is paralel to w re '1 and cames current a in the t direction Wire #2 is displaced from wire #1 by distance D which is variable. By default, D = 4 m. The samulation shows a mathematical path of orular shape that lies in the xy pane and is centered at the origin....
1 question 5 parts - 150 m/s 2.656 x 10-25 kg -1.28 x 10-18 C 1...
1 question 5 parts
- 150 m/s 2.656 x 10-25 kg -1.28 x 10-18 C 1 0.7 m | 17 A y 021 (part 1 of 5) 10.0 points A long, straight wire is in the plane of the page and carries a current of 17 A. Point P is also in the plane of the page and is a perpendicular distance 0.7 m from the wire, as shown below. P z is upward from the paper With reference to...
Question 20 (7 points) Two long straight wires carry currents perpendicular to the xy-plane. One wire carries a current of 50 A and passes through the point x = 5.0 cm on the x-axis. The second wire has a current of 80 A and passes through the point y = 4.0 cm on the y- axis. What is the magnitude of the resulting magnetic field at the origin? 200 ut 300 uT 400 uT 450 uT 600 uT
Four long straight parallel wires are oriented perpendicular to
the x-y plane and carry currents I1, I2,
I3 and I4. The magnitudes of the currents are
all identical and equal to 4.015 A. Current I3 is into
the x-y plane (i.e. into the screen), whereas each of the other
three currents are all out of the x-y plane(i.e. out of the screen)
as shown below. Each of the wires is a distance of 2.987 cm from
the origin as measured...
Four long straight parallel wires are oriented perpendicular to
the x-y plane and carry currents I1, I2,
I3 and I4. The magnitudes of the currents are
all identical and equal to 8.475 A. Current I4 is into
the x-y plane (i.e. into the screen), whereas each of the other
three currents are all out of the x-y plane(i.e. out of the screen)
as shown below. Each of the wires is a distance of 6.105 cm from
the origin as measured...
2. Two parallel straight wires carry currents I I 4.0 A in the directions shown. Find the magnetic field at p. Give Both the magnitude and direction of the field at p. 0.03 m 0,02 m P.
Please help with this question, I am having a hard time
understanding. Need a clear diagram to grasp the idea. Thank
you!
3. Two wires lie perpendicular to the plane of the paper, and ass through the paper in th directions shown. Point P is equidistant from the two wires Construct a vector diagram showing the direction of the resultant magnetic field at point P due to currents in these two wires. Explain your reasoning. a) b) If the currents...
Please solve the question quickly
EENG232 ELECTROMAGNETICS I/Page 6 0.3 (a) A pair of stationary and infinitely long bent wires are placed in the x-y plane as shown in Figure Q.3(a). The two wires carry currents of 4 A and 9 A respectively. If the segments D and A are along x-axis and the segments and F are parallel to y-axis such that OB = 12 cm and OE = 13 cm, calculate the magnetic field density at the origin...
A wire
bent into the shape of a semicircle of radius Rforms
a closed circuit and carries a current I.
The circuit lies in the xy
plane,
and a uniform magnetic field is present along the positive
y
axis as
in Figure 29.12. Find the magnetic force on the straight portion of
the wire and on the curved portion. Please answer the part I
circled in red!!! Thank you!
2. 2.2/5 points | Previous Answers PSE6 29 AE 02 Example...
A point-like charge of +5nC is at the origin and travelling with
a velocity of 3 x 106 m/s in the positive
x-direction.
A.) What is the magnetic field vector that this charge produces
at (x = y= 0, z = +1mm)?
b.)What is the Lorentz force (magnitude and direction) this
charge will exert on another charge of -10 nC placed at (x = y =0,
z = +1 mm) which is moving with the same speed and in the...
The simulation (linked below) shows two long, straight wires wre #1 les on the z aos and carries arrent İl in the +Z direction. wre #2 is paralel to w re '1 and cames current a in the t direction Wire #2 is displaced from wire #1 by distance D which is variable. By default, D = 4 m. The samulation shows a mathematical path of orular shape that lies in the xy pane and is centered at the origin....
1 question 5 parts
- 150 m/s 2.656 x 10-25 kg -1.28 x 10-18 C 1 0.7 m | 17 A y 021 (part 1 of 5) 10.0 points A long, straight wire is in the plane of the page and carries a current of 17 A. Point P is also in the plane of the page and is a perpendicular distance 0.7 m from the wire, as shown below. P z is upward from the paper With reference to...
