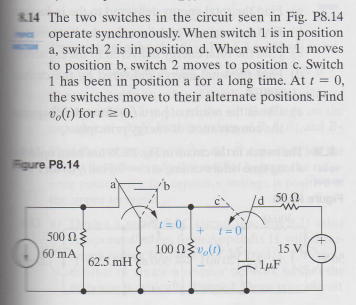

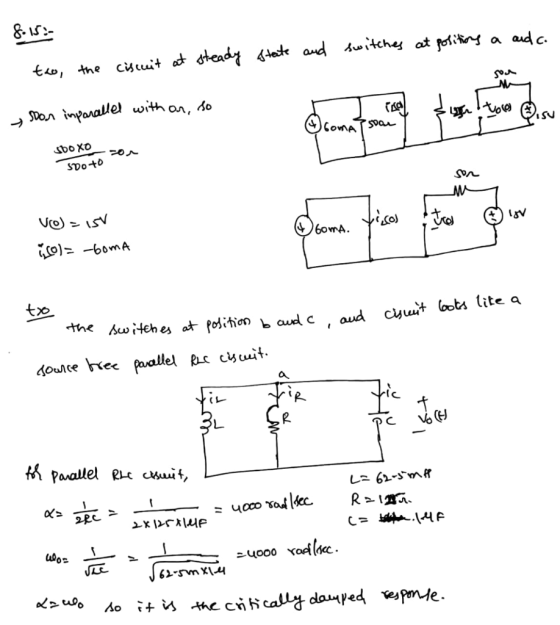

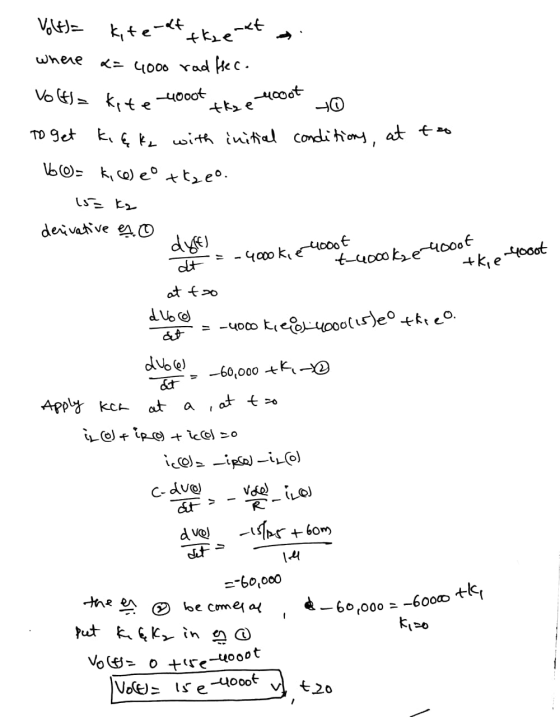

8.15 The resistor in the circuit of Fig. P8.14 is increased from 100 to 125 N. Find v(t) for t 0. PSPICE8.14 The two switches in the circuit seen in Fig. P8.14 operate synchronously. When switch 1 is in position a, switch 2 is inProblem 8.15 only please
