Homework Answers
Add Answer to:

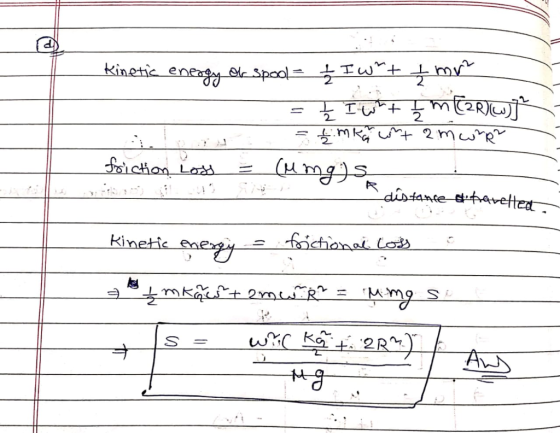

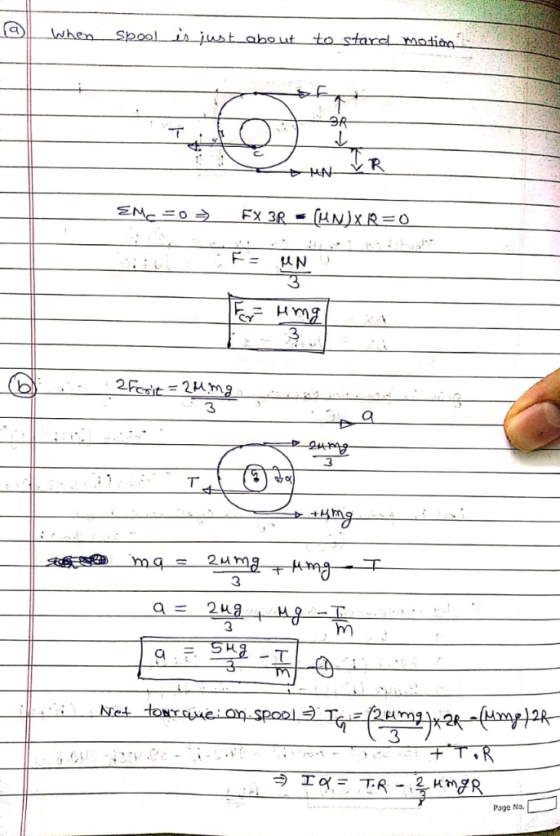

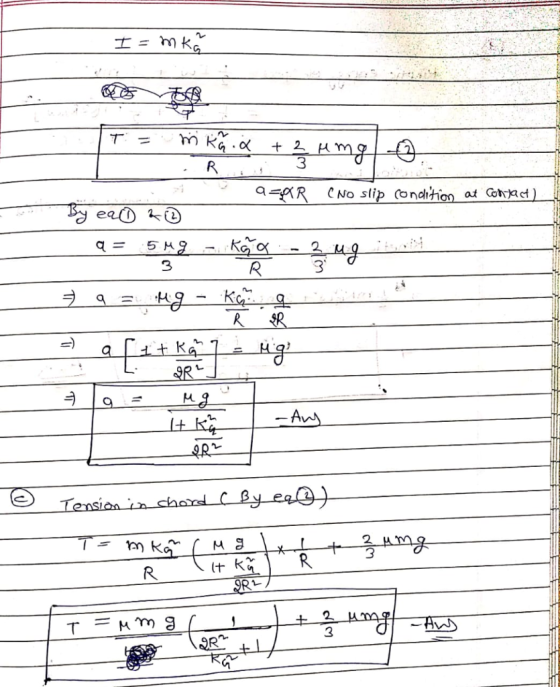

dynamics problem, please write in clear steps

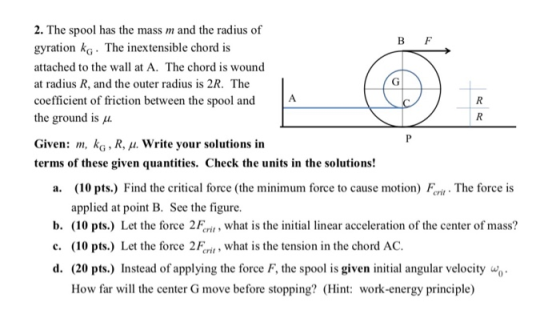

2. The spool has the mass m and the...
dynamics Problem 18.39 The spool has a mass of 56 kg and a radius of gyration...
dynamics
Problem 18.39 The spool has a mass of 56 kg and a radius of gyration ko = 0.280 m (Figure 1) Figure 1 of 1 03 m 0.2 m Part A If the 18-kg block A is released from rest, determine the velocity of the block when it descends 0.5 m Express your answer to three significant figures and include the appropriate units. НА ? UA= Value Units Submit Request Answer
6 of 10 Problem #5:(15 Points The spool has a mass of 125 kg and a...
6 of 10 Problem #5:(15 Points The spool has a mass of 125 kg and a radius of gyration of ko-0.375 m. If the coefficients of static friction is μ.-0.1 5 and coefficient of kinetic friction is μ-0. 11. Determine the angular acceleration of the spool. 300mm
The spool has a radius of gyration, kg = 0.2 m and a mass of m=...
The spool has a radius of gyration, kg = 0.2 m and a mass of m= 40 kg. Determine the acceleration of the center of gravity, C, when a F = 270 N force is applied upward at point A. The inner radius is r1 = 0.1 m and the outer radius is 12-0.49 m. (a) 1.25 m/s? (b) 1.53 m/s? (c) 30.0 m/s? (d) 6.00 m/s2 (e) 1.20 m/s2 OA OB OD ОЕ
Q3. The truck carries a 1500mm diameter spool of cable with a mass of 0.75kg per meter of length. There are 150 turns on the full spool. The empty spool has a mass of 140kg with radius of gyration of...
Q3. The truck carries a 1500mm diameter spool of cable with a mass of 0.75kg per meter of length. There are 150 turns on the full spool. The empty spool has a mass of 140kg with radius of gyration of 530mm. The truck alone has a mass of 2030kg with mass center at G. If the truck starts from rest with an initial acceleration of 1.96m/s2. Determine, (a) The tension T in the cable where it attaches to the wall,...
due in 30 min 8. (10 points) Picture taken from problem 19-21. The spool has a...
due in 30 min
8. (10 points) Picture taken from problem 19-21. The spool has a weight of 30 lb and a radius of gyration ko=0.45 ft. A cord is wrapped around the spool's inner hub and the end of the chord is subjected to a horizontal force P = 5 lb. Assume the spool rolls and slips. The coefficient of friction between the spool and the ground is uk = 0.1. Determine the spool's angular velocity in 4 s...
Picture taken from problem 17-98. The spool has a mass of 100 kg and a radius...
Picture taken from problem 17-98. The spool has a mass of 100 kg and a radius of gyration of kg = 0.3 meters. The coefficients of static and kinetic friction at A are lis= 0.2 and Uk= 0.15 respectively. A force P is applied to the rope that is wrapped around the smaller radius of the spool. Determine the largest value of P that can be applied without causing the spool to slip at point A. Hint: if P were...
This is a dynamic problem, please do not copy it from any solution from other or the book. I want to see the process even if the answer is wrong. Thanks. 6) A spool has a mass of 250 kg and a radi...
This is a dynamic problem, please do not copy it from any solution from other or the book. I want to see the process even if the answer is wrong. Thanks. 6) A spool has a mass of 250 kg and a radius of gyration (ko) of 0.25 m. The coefficient of kinetic of the spool (20 points) friction between the spool and the ground is μ.-0.15 Find the angular acceleration and the tension in the cable .4 m 0.6...
Homework Problem 18.39 7 of 8 A Review The spool has a mass of 56 kg...
Homework Problem 18.39 7 of 8 A Review The spool has a mass of 56 kg and a radius of gyration ko 0280 m (Figure 1) Part A If the 21.kg block A is released from rost, determine the velocity of the block when it descends 0.6 m. Express your answer to three significant figures and include the appropriate units. HÅ Value Units Figure < 1 of 1 Submit Request Answer Provide Feedback Next > The figure shows block A...
Intro to Dynamics, Planar Kinetics of a Rigid Body: Work and Energy. Problem 7 please! 7....
Intro to Dynamics, Planar Kinetics of a Rigid Body:
Work and Energy. Problem 7 please!
7. A ball of mass m and radius r is cast onto the horizontal surface such that it rolls without slipping. Determine its angular velocity at the instant 8 = 60°, if it has an initial speed of Vaas shown. 8. Determine the speed of the 60-kg cylinder after it has descended a distance of 1.5 m, starting from rest. Gear A has a mass...
M Review The spool has a mass of 110 kg and a radius of gyration of...
M Review The spool has a mass of 110 kg and a radius of gyration of kg = 0.3 m. Part A If the coefficients of static and kinetic friction at A are pls = 0.2 and uk = 0.15, respectively, determine the angular acceleration of the spool if P = 51N. Solve this problem if the cord and force P=51N are directed vertically upwards. (Figure 1) Express your answer with the appropriate units. μΑ ? Figure 1 of 1...
dynamics
Problem 18.39 The spool has a mass of 56 kg and a radius of gyration ko = 0.280 m (Figure 1) Figure 1 of 1 03 m 0.2 m Part A If the 18-kg block A is released from rest, determine the velocity of the block when it descends 0.5 m Express your answer to three significant figures and include the appropriate units. НА ? UA= Value Units Submit Request Answer
6 of 10 Problem #5:(15 Points The spool has a mass of 125 kg and a radius of gyration of ko-0.375 m. If the coefficients of static friction is μ.-0.1 5 and coefficient of kinetic friction is μ-0. 11. Determine the angular acceleration of the spool. 300mm
The spool has a radius of gyration, kg = 0.2 m and a mass of m= 40 kg. Determine the acceleration of the center of gravity, C, when a F = 270 N force is applied upward at point A. The inner radius is r1 = 0.1 m and the outer radius is 12-0.49 m. (a) 1.25 m/s? (b) 1.53 m/s? (c) 30.0 m/s? (d) 6.00 m/s2 (e) 1.20 m/s2 OA OB OD ОЕ
Q3. The truck carries a 1500mm diameter spool of cable with a mass of 0.75kg per meter of length. There are 150 turns on the full spool. The empty spool has a mass of 140kg with radius of gyration of 530mm. The truck alone has a mass of 2030kg with mass center at G. If the truck starts from rest with an initial acceleration of 1.96m/s2. Determine, (a) The tension T in the cable where it attaches to the wall,...
due in 30 min
8. (10 points) Picture taken from problem 19-21. The spool has a weight of 30 lb and a radius of gyration ko=0.45 ft. A cord is wrapped around the spool's inner hub and the end of the chord is subjected to a horizontal force P = 5 lb. Assume the spool rolls and slips. The coefficient of friction between the spool and the ground is uk = 0.1. Determine the spool's angular velocity in 4 s...
Picture taken from problem 17-98. The spool has a mass of 100 kg and a radius of gyration of kg = 0.3 meters. The coefficients of static and kinetic friction at A are lis= 0.2 and Uk= 0.15 respectively. A force P is applied to the rope that is wrapped around the smaller radius of the spool. Determine the largest value of P that can be applied without causing the spool to slip at point A. Hint: if P were...
This is a dynamic problem, please do not copy it from any solution from other or the book. I want to see the process even if the answer is wrong. Thanks. 6) A spool has a mass of 250 kg and a radius of gyration (ko) of 0.25 m. The coefficient of kinetic of the spool (20 points) friction between the spool and the ground is μ.-0.15 Find the angular acceleration and the tension in the cable .4 m 0.6...
Homework Problem 18.39 7 of 8 A Review The spool has a mass of 56 kg and a radius of gyration ko 0280 m (Figure 1) Part A If the 21.kg block A is released from rost, determine the velocity of the block when it descends 0.6 m. Express your answer to three significant figures and include the appropriate units. HÅ Value Units Figure < 1 of 1 Submit Request Answer Provide Feedback Next > The figure shows block A...
Intro to Dynamics, Planar Kinetics of a Rigid Body:
Work and Energy. Problem 7 please!
7. A ball of mass m and radius r is cast onto the horizontal surface such that it rolls without slipping. Determine its angular velocity at the instant 8 = 60°, if it has an initial speed of Vaas shown. 8. Determine the speed of the 60-kg cylinder after it has descended a distance of 1.5 m, starting from rest. Gear A has a mass...
M Review The spool has a mass of 110 kg and a radius of gyration of kg = 0.3 m. Part A If the coefficients of static and kinetic friction at A are pls = 0.2 and uk = 0.15, respectively, determine the angular acceleration of the spool if P = 51N. Solve this problem if the cord and force P=51N are directed vertically upwards. (Figure 1) Express your answer with the appropriate units. μΑ ? Figure 1 of 1...
