The uniform L-shaped bar pivots freely at point P of the slider, which moves along the...
The uniform L-shaped bar pivots freely at point P of the slider, which moves along the...

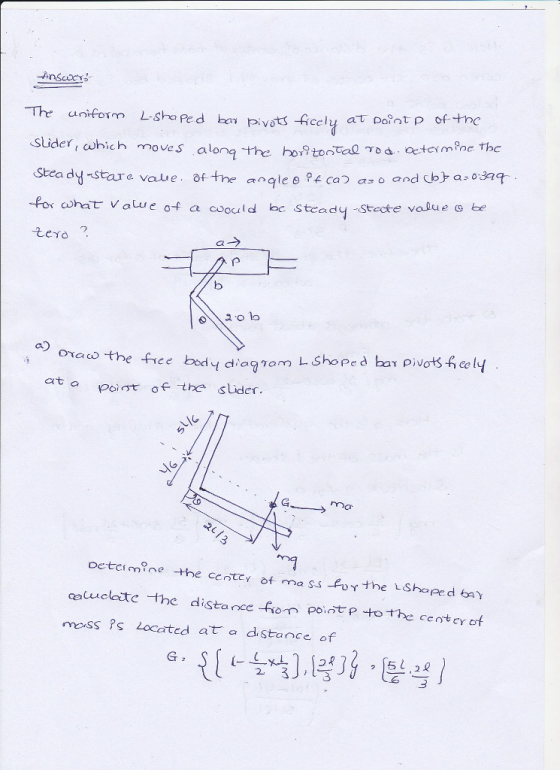

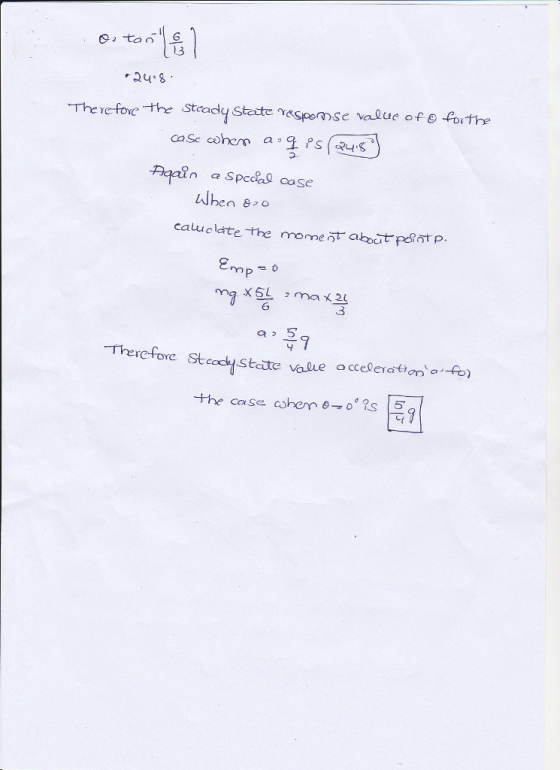

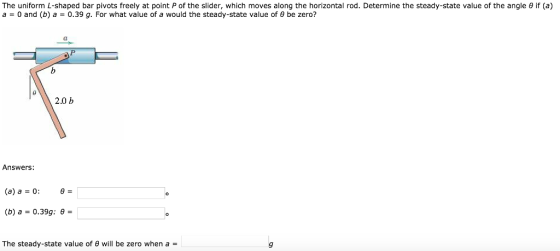

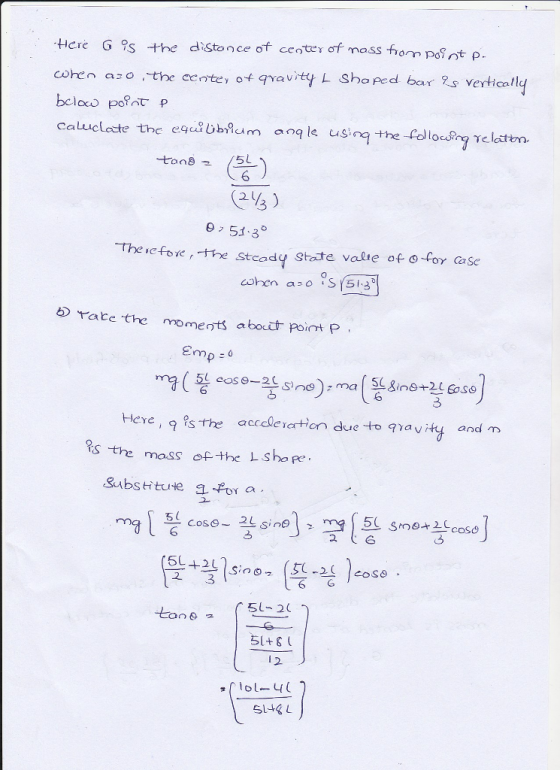

The uniform L-shaped bar pivots freely at point P of the slider, which moves along the horizontal rod. Determine the steady-state value of the angle θ if (a) a = 0 and (b) a = 0.62 g. For what value of a would the steady-state value of e be zero? 2.6 b Answers: (a) a 0 (b) a - 0.62g: e - The steady-state value of e will be zero when a
The uniform bar OC of length L pivots freely about a horizontal axis through O. If the spring of modulus k is unstretche...
The uniform bar OC of length L pivots freely about a horizontal
axis through O. If the spring of modulus k is unstretched when C is
coincident with A, determine the tension T required to hold the bar
in the 38° position shown. The diameter of the small pulley at D is
negligible.
The uniform bar OC of length L pivots freely about a horizontal axis through O. If the spring of modulus k is unstretched when C is coincident...
A pendulum consists of a uniform rod of total mass m and length L that can...
A pendulum consists of a uniform rod of total mass m and length L that can pivot freely around one of its ends. The moment of inertia of such a rod around the pivot point is 1/3mL^2 The torque around the pivot point of the pendulum due to gravity is 1/2mgLsinθ, where θ is the angle the rod makes with the vertical and g is the acceleration due to gravity. a) Write down the equation of motion for the angle...
1. A uniform horizontal bar of length L = 2.0 m and weight 144 N is...
1. A uniform horizontal bar of length L = 2.0 m and weight 144 N is pinned to a vertical wall and supported by a thin wire that makes an angle of 0 = 150 with the horizontal. A mass M, with a weight of 302 N, can be moved anywhere along the bar. The wire can withstand a maximum tension of 573 N. What is the maximum possible distance from the wall at which mass M can be placed...
In the figure, a thin horizontal bar AB of negligible weight and length L is hinged...
In the figure, a thin horizontal bar AB of negligible
weight and length L is hinged to a vertical wall at
A and supported at B by a thin wire BC
that makes an angle θ with the horizontal. A block of
weight W can be moved anywhere along the bar; its position
is defined by the distance x from the wall to its center
of mass. Find vertical components of the force on the bar from the
hinge at...
QUESTION 1 A uniform bar of total mass m and total length L has been bent into an L-shape such th...
QUESTION 1 A uniform bar of total mass m and total length L has been bent into an L-shape such that the shorter segment is 1/4 of the total length. The free end of the longer segment is connected to a fixed frame with a frictionless revolute joint at A and the rod is initially held stationary with the longer segment horizontal and the shorter segment vertical as shown in the figure below. 3L 4 4 The horizontal distance from...
Vertical force P= 250 Ib acts on end B of the L-shaped solid round bar as shown in the figure
Problem X4-2, MECH 3035, Spring 2019 Vertical force P= 250 Ib acts on end B of the L-shaped solid round bar as shown in the figure. The front view lies in the x-y plane as shown, and the top view lies in the x-z plane. The diameter of the bar is 2.00 in. Point A is on the top of the bar. a) Find the bending moment and torsion acting on the bar at the cross section where point A is located....
[7.] A uniform rod with mass M, length L, and moment of inertial with respect to...
[7.] A uniform rod with mass M, length L, and moment of inertial with respect to the center of mass Icm = MLis hinged at one end (point P) so that it can rotate, without friction, around a horizontal axis. The rod is initially held at rest forming an angle with the vertical (see figure) and then released. a) Find the moment of inertia Ip of the rod with respect to point P. b) Find the magnitude of the angular...
Problem 6: A uniform beam of length L = 3.2 m and mass M = 32 kg has its lower end fixed to pivot at a point P on the floor
Problem 6: A uniform beam of length L = 3.2 m and mass M = 32 kg has its lower end fixed to pivot at a point P on the floor, making an angle θ = 29° as shown in the digram. A horizontal cable is attached at its upper end B to a point A on a wall. A box of the same mass Mas the beam is suspended from a rope that is attached to the beam one-fourth...
L- Pivot Point 13.) A uniform, thin rod of length L and mass M is allowed to pivot about its end,...
L- Pivot Point 13.) A uniform, thin rod of length L and mass M is allowed to pivot about its end, as shown in the figure above (a) Using integral calculus, derive the rotational inertia for the rod around its end to show that it is ML2/3 The rod is fixed at one end and allowed to fall from the horizontal position A through the vertical position B. (b) Derive an expression for the velocity of the free end of...
The uniform L-shaped bar pivots freely at point P of the slider, which moves along the horizontal rod. Determine the steady-state value of the angle θ if (a) a = 0 and (b) a = 0.62 g. For what value of a would the steady-state value of e be zero? 2.6 b Answers: (a) a 0 (b) a - 0.62g: e - The steady-state value of e will be zero when a
The uniform bar OC of length L pivots freely about a horizontal
axis through O. If the spring of modulus k is unstretched when C is
coincident with A, determine the tension T required to hold the bar
in the 38° position shown. The diameter of the small pulley at D is
negligible.
The uniform bar OC of length L pivots freely about a horizontal axis through O. If the spring of modulus k is unstretched when C is coincident...
1. A uniform horizontal bar of length L = 2.0 m and weight 144 N is pinned to a vertical wall and supported by a thin wire that makes an angle of 0 = 150 with the horizontal. A mass M, with a weight of 302 N, can be moved anywhere along the bar. The wire can withstand a maximum tension of 573 N. What is the maximum possible distance from the wall at which mass M can be placed...
In the figure, a thin horizontal bar AB of negligible
weight and length L is hinged to a vertical wall at
A and supported at B by a thin wire BC
that makes an angle θ with the horizontal. A block of
weight W can be moved anywhere along the bar; its position
is defined by the distance x from the wall to its center
of mass. Find vertical components of the force on the bar from the
hinge at...
QUESTION 1 A uniform bar of total mass m and total length L has been bent into an L-shape such that the shorter segment is 1/4 of the total length. The free end of the longer segment is connected to a fixed frame with a frictionless revolute joint at A and the rod is initially held stationary with the longer segment horizontal and the shorter segment vertical as shown in the figure below. 3L 4 4 The horizontal distance from...
[7.] A uniform rod with mass M, length L, and moment of inertial with respect to the center of mass Icm = MLis hinged at one end (point P) so that it can rotate, without friction, around a horizontal axis. The rod is initially held at rest forming an angle with the vertical (see figure) and then released. a) Find the moment of inertia Ip of the rod with respect to point P. b) Find the magnitude of the angular...
L- Pivot Point 13.) A uniform, thin rod of length L and mass M is allowed to pivot about its end, as shown in the figure above (a) Using integral calculus, derive the rotational inertia for the rod around its end to show that it is ML2/3 The rod is fixed at one end and allowed to fall from the horizontal position A through the vertical position B. (b) Derive an expression for the velocity of the free end of...
