Two conducting concentric spheres (shells)have radii R1 = 10 cm and R2 = 20 cm. Both...
Two conducting concentric spheres (shells)have radii R1 = 10 cm
and R2 = 20
cm. Both spheres are charged to Q = +20 C. Find:

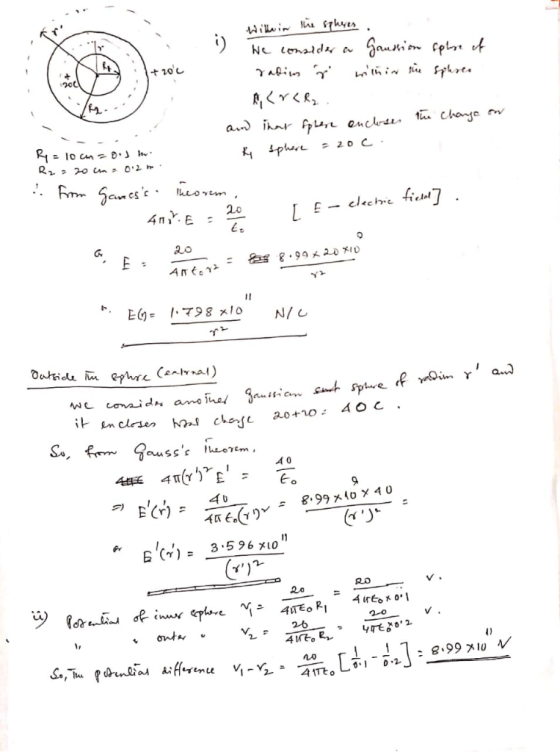

(i) The electric field within the spheres and out of the external
sphere.
(ii) The potential difference between the spheres.

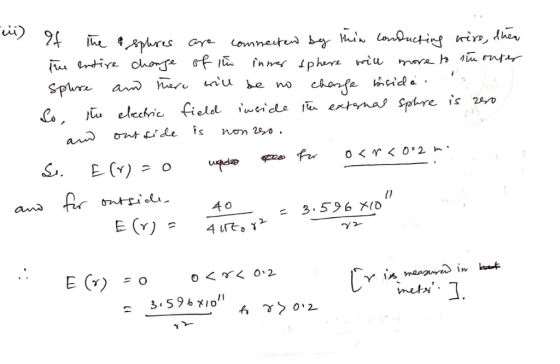

(iii) The electric field profile if the spheres are connected by a
thin conducting wire.
Homework Answers
Add Answer to:
Two conducting concentric spheres (shells)have radii R1 = 10 cm
and R2 = 20
cm. Both...
Consider two thin, concentric conducting spherical shells with radii r1 = 0.50 m and r2 =...
Consider two thin, concentric conducting spherical shells with radii r1 = 0.50 m and r2 = 1.0 m. A charge of +1.0 mC is placed on the inner sphere and a charge of +2.0 mC is placed on the outer sphere. Set the potential at infinity to be 0. Determine (a) the field inside the inner sphere, (b) the charge on the inner surface of the outer conductor, (c) the magnitude of the E-field midway between the inner and outer...
Two concentric conducting spheres of radii a = 5 cm and b = 10 cm have...
Two concentric conducting spheres of radii a = 5 cm and b = 10 cm have a potential difference V = 100 V between them. What is the charge carried by each sphere?
Two thin-walled concentric conducting spheres of radii 5.0 cm and 10 cm have a potential difference...
Two thin-walled concentric conducting spheres of radii 5.0 cm and 10 cm have a potential difference of 100 V between them. (k= 1/4πε0 = 8.99 × 109 N · m2/C2) (a) What is the capacitance of this combination? (b) What is the charge carried by each sphere?
Two concentric charged spherical conducting shells of radii 3 and 4 cm carry equal and opposite...
Two concentric charged spherical conducting shells of radii 3
and 4 cm carry equal and opposite charges of magnitude 8 * 10^-6 C
as shown in Figure 2.
a. find the electric field at r = 4cm
b. Find the electric potential at r=2 cm.
2. Two concentric charged spherical conducting she l1s of radii 3 and 5 cm carry equal and oppositecharges of taagnitude 8 x 10-6 c as shovn in Figure 2. a) Find the electric field at...
Use Gauss’ Law to solve for the electric field everywhere. Two conducting spheres concentric spheres of...
Use Gauss’ Law to solve for the electric field everywhere. Two conducting spheres concentric spheres of different radii (e.g. r1 and r2). The inner sphere has charge –Q and the outer charge has charge +2Q.
Two conducting spheres with radius r1 and r2 and charges q1 and q2, respectively, are connected...
Two conducting spheres with radius r1 and r2 and charges q1 and q2, respectively, are connected with a conducting wire. The one with more charge will have a higher potential. Select one: True O False Check Two conducting spheres with radius r1 and r2 and charges q1 and q2, respectively. If they are connected with a conducting wire and at equilibrium, they have the same E field value on their surfaces, hence, q/r,2 2/2 Select one: False Check Two conducting...
Two isolated, concentric, conducting spherical shells have radii R1 = 0.520 m and R2 = 1.10...
Two isolated, concentric, conducting spherical shells have radii R1 = 0.520 m and R2 = 1.10 m, uniform charges q1 = +2.80 μC and q2 = +1.60 μC, and negligible thicknesses. What is the magnitude of the electric field E at radial distance With V = 0 at infinity, what is V at , (e) r = 1.10 m, (f) r = 0.790 m, (g) r = 0.520 m, (h) r = 0.150 m, and (i) r = 0?
Flag question The outer sphere of two concentric conducting spheres of radii 9 cm and 15...
Flag question The outer sphere of two concentric conducting spheres of radii 9 cm and 15 cm is grounded. Charge q=8 nC is placed on the inner sphere. The outer conductor then contracts from radius 5 cm. Calculate the work done by the electric force.
Two isolated, concentric, conducting spherical shells have radii R1 = 0.510 m and R2 = 1.30...
Two isolated, concentric, conducting spherical shells have radii R1 = 0.510 m and R2 = 1.30 m, uniform charges q1 = +3.80 μC and q2 = +3.70 μC, and negligible thicknesses. What is the magnitude of the electric field E at radial distance (a) r = 2.30 m, (b) r = 0.740 m, and (c) r = 0.250 m? With V = 0 at infinity, what is V at (d) r = 2.30 m, (e) r = 1.30 m, (f)...
two charged spherical conductors of radius R1=6cm and R2=2cm are separated by a distance much greater...
two charged spherical conductors of radius R1=6cm and R2=2cm are separated by a distance much greater than 6cm and are connected by a long, thin conducting wire. a total charge Q=80nc is placed on one of the spheres. (a) what is the charge on each sphere? (b) what is the electric field near the surface of each sphere? (c) what is the electric potential of each sphere? (assume that the charge on the connecting wire is negligible)
Two concentric charged spherical conducting shells of radii 3
and 4 cm carry equal and opposite charges of magnitude 8 * 10^-6 C
as shown in Figure 2.
a. find the electric field at r = 4cm
b. Find the electric potential at r=2 cm.
2. Two concentric charged spherical conducting she l1s of radii 3 and 5 cm carry equal and oppositecharges of taagnitude 8 x 10-6 c as shovn in Figure 2. a) Find the electric field at...
Two conducting spheres with radius r1 and r2 and charges q1 and q2, respectively, are connected with a conducting wire. The one with more charge will have a higher potential. Select one: True O False Check Two conducting spheres with radius r1 and r2 and charges q1 and q2, respectively. If they are connected with a conducting wire and at equilibrium, they have the same E field value on their surfaces, hence, q/r,2 2/2 Select one: False Check Two conducting...
Flag question The outer sphere of two concentric conducting spheres of radii 9 cm and 15 cm is grounded. Charge q=8 nC is placed on the inner sphere. The outer conductor then contracts from radius 5 cm. Calculate the work done by the electric force.
