Two thin-walled concentric conducting spheres of radii 5.0 cm and 10 cm have a potential difference...

Two thin-walled concentric conducting spheres of radii 5.0 cm and 10 cm have a potential difference of 100 V between them. (k= 1/4πε0 = 8.99 × 109 N · m2/C2)


(a) What is the capacitance of this combination?

(b) What is the charge carried by each sphere?

science   physics
1 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

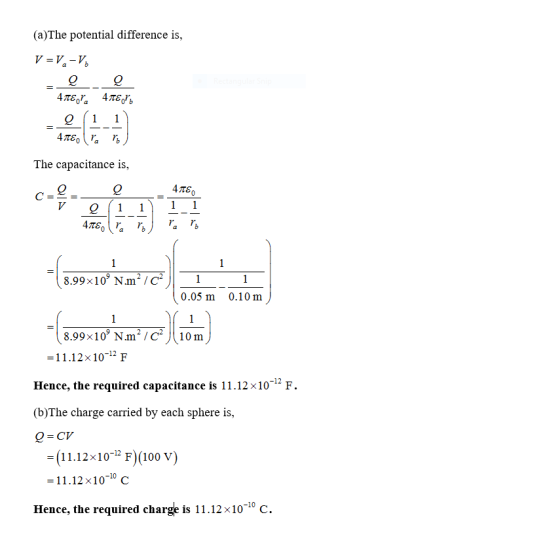

(a)The potential difference is, V 3Dу, -V, Q 4ледr 4т6у, 1 4TEa The capacitance is, 4TEO 1 1 C = V 1 1 4л€о r 1 1 8.99x10 N.m

0 0
